Multiquip MVH128 Reversible Plate Compactor
The parts bench

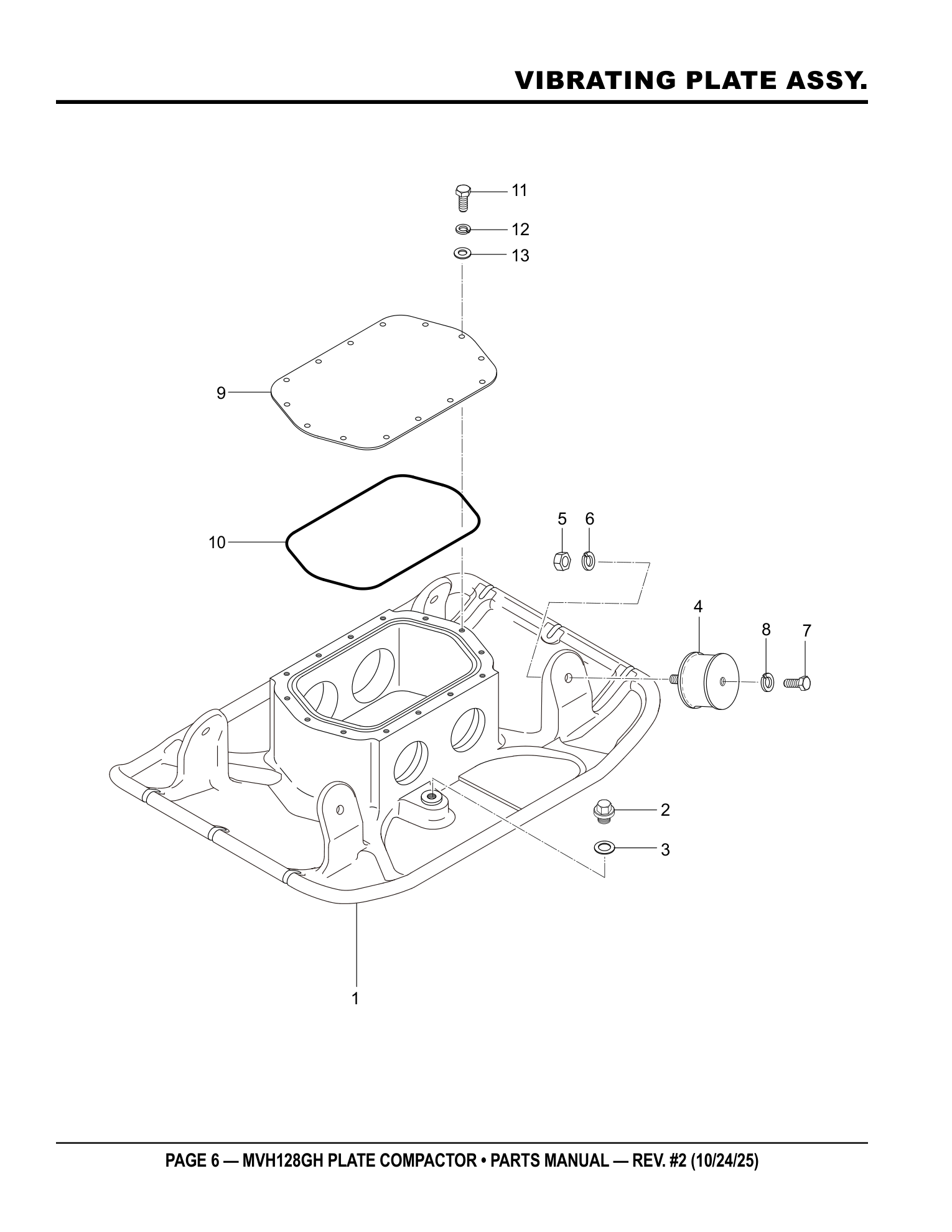

Need the PDF? ↓Page 6 — VIBRATING PLATE ASSY.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 472122280 | VIBRATING PLATE | 1 | ADD TO CART | |
| 2 | 953405270 | PLUG | 1 | ADD TO CART | |
| 3 | 953405260 | PACKING 1/4" | 1 | ADD TO CART | |
| 4 | 472471010 | SHOCK ABSORBER | 4 | ADD TO CART | |
| 5 | 020312100 | NUT, M12 | 4 | ADD TO CART | |
| 6 | 030212300 | WASHER, LOCK M12 | 4 | ADD TO CART | |
| 7 | 001221230 | BOLT, 12X30 | 4 | PARTS REQUEST | |
|
COMING BOLT, 12X30
001221230 · qty on machine: 4 | |||||
| 8 | 030212300 | WASHER, LOCK M12 | 4 | ADD TO CART | |
| 9 | 471354550 | COVER, VIBRATOR | 1 | ADD TO CART | |
| 10 | 050710080 | O-RING | 1 | REPLACES P/N 050710160 | ADD TO CART |
| 11 | 001220820 | BOLT, 8X20 | 14 | ADD TO CART | |
| 12 | 030208200 | WASHER, LOCK M8 | 14 | ADD TO CART | |
| 13 | 031108160 | WASHER, FLAT M8 | 14 | ADD TO CART | |

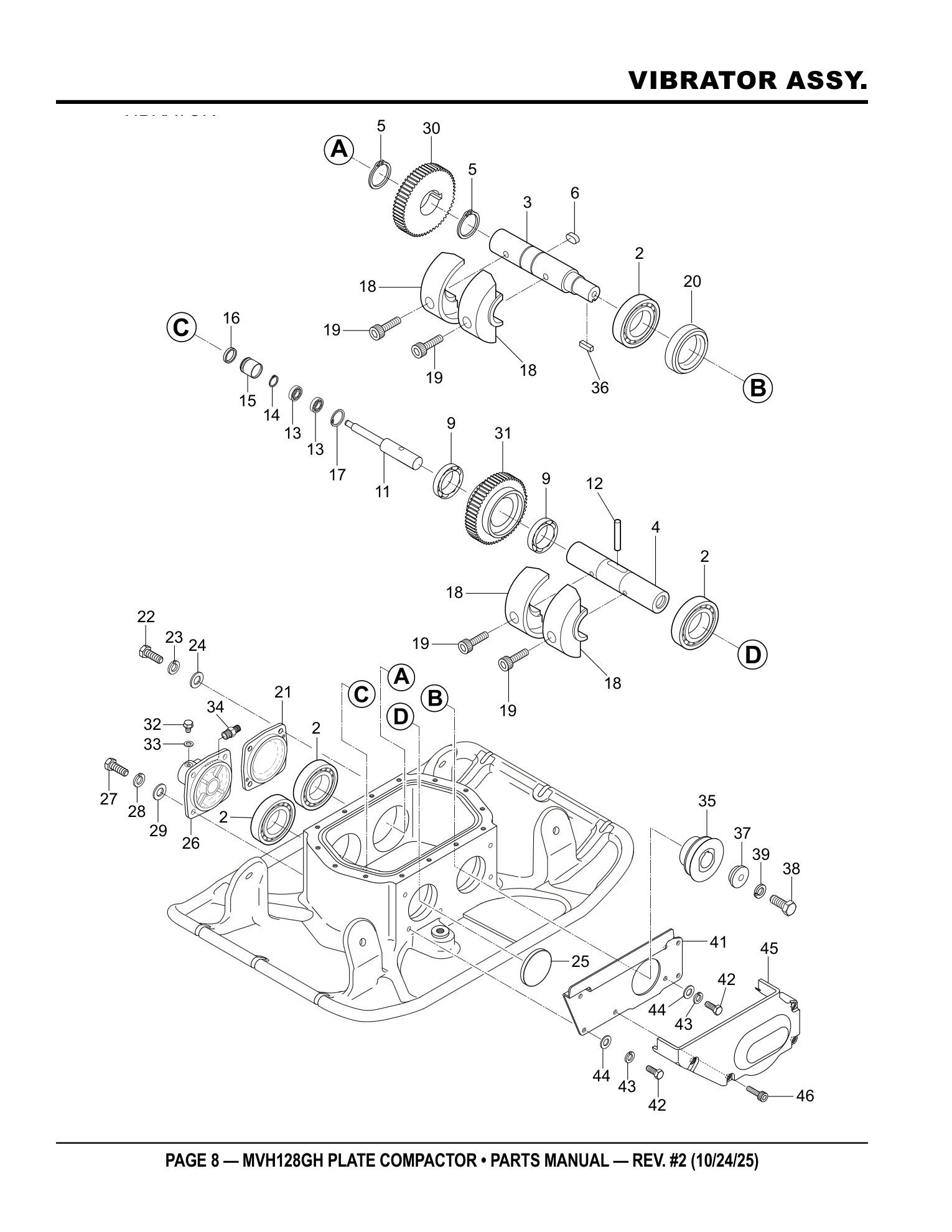

Page 8 — VIBRATOR ASSY.
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 040306307 | BEARING | 4 | REPLACES P/N 040406307 | ADD TO CART |
| 3 | 472355260 | ROTARY SHAFT, DRIVE | 1 | ADD TO CART | |
| 4 | 472355270 | ROTARY SHAFT, DRIVEN | 1 | ADD TO CART | |
| 5 | 080200350 | STOP RING | 2 | ADD TO CART | |
| 6 | 951405460 | KEY, 10X8X19 | 1 | ADD TO CART | |
| 9 | 040306907 | BEARING | 2 | ADD TO CART | |
| 11 | 459346230 | PISTON ROD | 1 | ADD TO CART | |
| 12 | 025508050 | PIN | 1 | ADD TO CART | |
| 13 | 042006000 | BEARING | 2 | REPLACES P/N 042506000 | ADD TO CART |
| 14 | 0080000010 | STOP RING | 1 | REPLACES P/N 080200100 | ADD TO CART |
| 15 | 455435051 | PISTON | 1 | ADD TO CART | |
| 16 | 455010070 | COPPER PACKING | 1 | ADD TO CART | |
| 17 | 080100260 | STOP RING | 1 | ADD TO CART | |
| 18 | 472471020 | ECCENTRIC ROTATOR | 4 | ADD TO CART | |
| 19 | 009120306 | SOCKET HEAD BOLT, 10X30 | 4 | ADD TO CART | |
| 20 | 060202060 | OIL SEAL | 1 | ADD TO CART | |
| 21 | 471354540 | BEARING COVER | 1 | ADD TO CART | |
| 22 | 001220825 | BOLT, 8X25 | 4 | ADD TO CART | |
| 23 | 030208200 | WASHER, LOCK M8 | 4 | ADD TO CART | |
| 24 | 031108160 | WASHER, FLAT M8 | 4 | ADD TO CART | |
| 25 | 953010060 | SEAL CAP | 1 | ADD TO CART | |
| 26 | 471219700 | CYLINDER | 1 | ADD TO CART | |
| 27 | 001220825 | BOLT, 8X25 | 4 | ADD TO CART | |
| 28 | 030208200 | WASHER, LOCK M8 | 4 | ADD TO CART | |
| 29 | 031108160 | WASHER, FLAT M8 | 4 | ADD TO CART | |
| 30 | 471354810 | GEAR, DRIVE | 1 | ADD TO CART | |
| 31 | 458342590 | GEAR, DRIVEN | 1 | ADD TO CART | |
| 32 | 001220812 | BOLT, 8X12 | 1 | ADD TO CART | |
| 33 | 953404600 | COPPER PACKING | 1 | ADD TO CART | |
| 34 | 954010020 | CONNECTOR, 1/4" | 1 | ADD TO CART | |
| 35 | 472355210 | PULLEY | 1 | ADD TO CART | |
| 36 | 951400990 | KEY, 7X7X20 | 1 | ADD TO CART | |
| 37 | 471470140 | WASHER, PULLEY | 1 | ADD TO CART | |
| 38 | 001220830 | BOLT, 8X30 | 1 | ADD TO CART | |
| 39 | 030208200 | WASHER, LOCK M8 | 1 | ADD TO CART | |
| 41 | 472355220 | GUIDE, BELT COVER | 1 | ADD TO CART | |
| 42 | 001220820 | BOLT, 8X20 | 3 | ADD TO CART | |
| 43 | 030208200 | WASHER, LOCK M8 | 3 | ADD TO CART | |
| 44 | 031108160 | WASHER, FLAT M8 | 3 | ADD TO CART | |
| 45 | 472219870 | BELT COVER, LOWER | 1 | ADD TO CART | |
| 46 | 001520851 | SOCKET HEAD BOLT, 8X55 | 4 | ADD TO CART | |

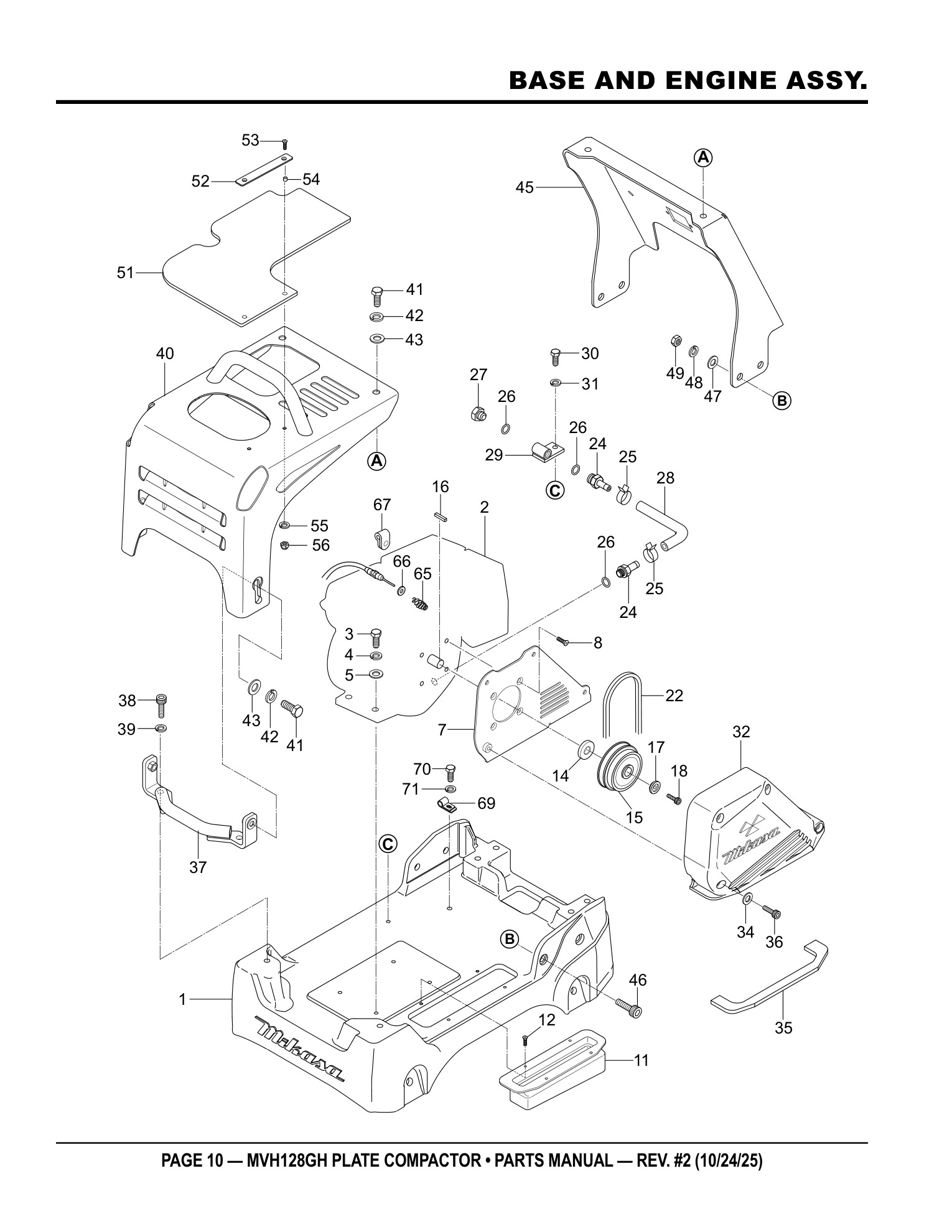

Page 10 — BASE AND ENGINE ASSY.
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 472122290 | BASE | 1 | PARTS REQUEST | |
|
COMING BASE
472122290 · qty on machine: 1 | |||||
| 2 | 912216023 | ENGINE, GX160UT2SCM | 1 | ADD TO CART | |
| 3 | 001220840 | BOLT, 8X40 | 4 | ADD TO CART | |
| 4 | 030208200 | WASHER, LOCK M8 | 4 | ADD TO CART | |
| 5 | 031108160 | WASHER, FLAT M8 | 4 | ADD TO CART | |
| 7 | 472355250 | BELT COVER, (IN) | 1 | PARTS REQUEST | |
|
COMING BELT COVER, (IN)
472355250 · qty on machine: 1 | |||||
| 8 | 009120408 | SUNK HEAD BOLT, 8X20 | 4 | ADD TO CART | |
| 11 | 472219850 | DUST COVER | 1 | ADD TO CART | |
| 12 | 092006010 | FLAT HEAD SCREW, 6X10 | 4 | ADD TO CART | |
| 14 | 472471230 | CLUTCH, SPACER | 1 | PARTS REQUEST | |
|
COMING CLUTCH, SPACER
472471230 · qty on machine: 1 | |||||
| 15 | 458337770 | CLUTCH ASSY. | 1 | ADD TO CART | |
| 16 | 0320050150 | KEY | 1 | ADD TO CART | |
| 17 | 471470090 | CLUTCH, WASHER | 1 | ADD TO CART | |
| 18 | 001520825 | SOCKET HEAD BOLT, 8X25 | 1 | PARTS REQUEST | |
|
COMING SOCKET HEAD BOLT, 8X25
001520825 · qty on machine: 1 | |||||
| 22 | 070100332 | V-BELT | 1 | ADD TO CART | |
| 24 | 15550ZK8P90 | DRAIN JOINT | 2 | PARTS REQUEST | |
|
COMING DRAIN JOINT
15550ZK8P90 · qty on machine: 2 | |||||
| 25 | 954010070 | HOSE BAND | 2 | PARTS REQUEST | |
|
COMING HOSE BAND
954010070 · qty on machine: 2 | |||||
| 26 | 90601ZE1000 | WASHER, DRAIN PLUG | 3 | ADD TO CART | |
| 27 | 90131ZE1000 | BOLT, DRAIN PLUG | 1 | ADD TO CART | |
| 28 | 15552ZB9000 | DRAIN HOSE | 1 | ADD TO CART | |
| 29 | 459462050 | JOINT | 1 | PARTS REQUEST | |
|
COMING JOINT
459462050 · qty on machine: 1 | |||||
| 30 | 001220820 | BOLT, 8X20 | 1 | ADD TO CART | |
| 31 | 030208200 | WASHER, LOCK M8 | 1 | ADD TO CART | |
| 32 | 472122390 | BELT COVER (OUT) | ADD TO CART | ||
| 34 | 033910220 | WASHER, 8.4X15.5X1.6 | 4 | ADD TO CART | |
| 35 | 472355230 | DUST SPONGE (OUT) | 1 | ADD TO CART | |
| 36 | 001520552 | SOCKET HEAD BOLT, 8X60 | 4 | ADD TO CART | |
| 37 | 472355240 | FRONT BUMPER | 1 | ADD TO CART | |
| 38 | 001521235 | SOCKET HEAD BOLT, 12X35 | 2 | PARTS REQUEST | |
|
COMING SOCKET HEAD BOLT, 12X35
001521235 · qty on machine: 2 Factory replaced this part - current number 014212035 | |||||
| 39 | 030212300 | WASHER, LOCK M12 | 2 | ADD TO CART | |
| 40 | 472122400 | FRONT COVER | 1 | ADD TO CART | |
| 41 | 001221235 | BOLT, 12X35 | 4 | PARTS REQUEST | |
|
COMING BOLT, 12X35
001221235 · qty on machine: 4 | |||||
| 42 | 030212300 | WASHER, LOCK M12 | 4 | ADD TO CART | |
| 43 | 031112230 | WASHER, FLAT M12 | 4 | ADD TO CART | |
| 45 | 472219860 | CENTER COVER | 1 | ADD TO CART | |
| 46 | 001521030 | SOCKET HEAD BOLT, 10X30 | 4 | ADD TO CART | |
| 47 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 48 | 030210250 | WASHER, LOCK M10 | 4 | ADD TO CART | |
| 49 | 020310080 | NUT M10 | 4 | ADD TO CART | |
Page 12 — BASE AND ENGINE ASSY. (CONT'D.)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51 | 472471040 | RUBBER COVER, UPPER | 1 | ADD TO CART | |
| 52 | 472471050 | STOPPER, COVER | 1 | PARTS REQUEST | |
|
COMING STOPPER, COVER
472471050 · qty on machine: 1 | |||||
| 53 | 009120424 | SOCKET HEAD BOLT, 6X25 | 2 | ADD TO CART | |
| 54 | 617465130 | COLLAR | 2 | ADD TO CART | |
| 55 | 030206150 | WASHER, LOCK M6 | 2 | ADD TO CART | |
| 56 | 022710607 | NYLON NUT M6 | 2 | ADD TO CART | |
| 65 | 371467760 | RETURN SPRING | 1 | PARTS REQUEST | |
|
COMING RETURN SPRING
371467760 · qty on machine: 1 | |||||
| 66 | 031105080 | WASHER, FLAT M5 | 1 | ADD TO CART | |
| 67 | 2067550101 | CLAMP, COMPLETE | 1 | NO LONGER AVAILABLE | |
|
COMING CLAMP, COMPLETE
2067550101 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 69 | 959407260 | CLIP D6 | 1 | ADD TO CART | |
| 70 | 001221015 | BOLT, 10X15 | 1 | NO LONGER AVAILABLE | |
|
COMING BOLT, 10X15
001221015 · qty on machine: 1 Factory replaced this part - current number 012210015 NO LONGER AVAILABLE
| |||||
| 71 | 030210250 | WASHER, LOCK M10 | 1 | ADD TO CART | |

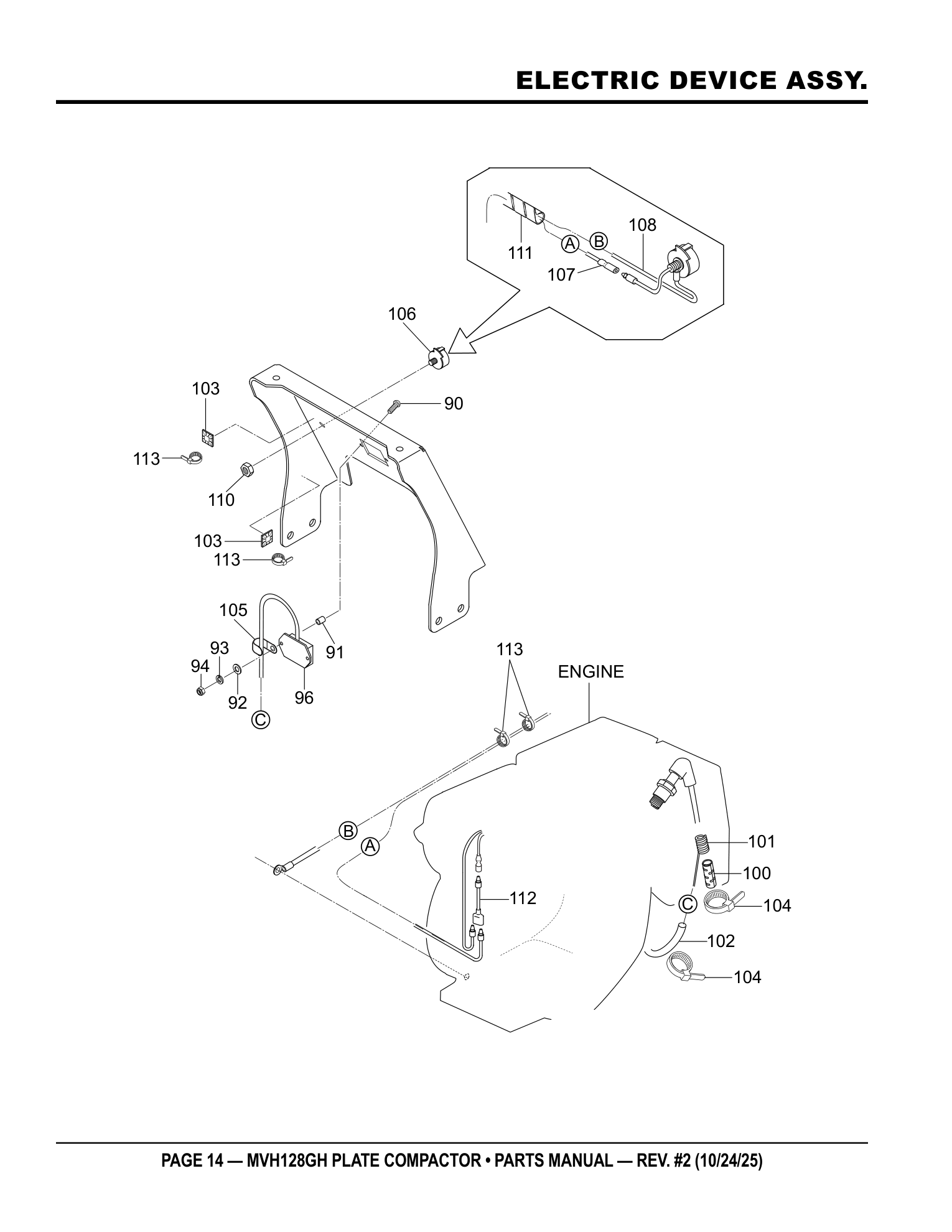

Page 14 — ELECTRIC DEVICE ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 009110072 | PAN HEAD SCREW, 5X35 | 2 | ADD TO CART | |
| 91 | 952407930 | COLLAR | 2 | ADD TO CART | |
| 92 | 031105080 | WASHER, FLAT M5 | 2 | ADD TO CART | |
| 93 | 030205130 | WASHER, LOCK M5 | 2 | ADD TO CART | |
| 94 | 022710506 | NYLON NUT M5 | 2 | ADD TO CART | |
| 96 | 955010311 | TACHO/HOUR METER | 1 | ADD TO CART | |
| 100 | 955010307 | CLIP BELT | 1 | ADD TO CART | |
| 101 | 955010317 | CURL CORD | 1 | PARTS REQUEST | |
|
COMING CURL CORD
955010317 · qty on machine: 1 | |||||
| 102 | 959026836 | RUBBER TUBE | 1 | PARTS REQUEST | |
|
COMING RUBBER TUBE
959026836 · qty on machine: 1 | |||||
| 103 | 955407970 | WIRING FIXED BASE | 2 | ADD TO CART | |
| 104 | 506010070 | CLAMP | 2 | ADD TO CART | |
| 105 | 2067550101 | CLAMP COMPLETE | 1 | NO LONGER AVAILABLE | |
|
COMING CLAMP COMPLETE
2067550101 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 106 | 955301010 | STOP SWITCH, ENGINE | 1 | ADD TO CART | |
| 107 | 468467570 | READ CORD | 1 | ADD TO CART | |
| 108 | 467466980 | LEAD WIRE (SW-GROUND) | 1 | ADD TO CART | |
| 110 | 020308060 | NUT M8 | 1 | ADD TO CART | |
| 111 | 959021827 | SPIRAL TUBE | 1 | ADD TO CART | |
| 112 | 515450380 | WIRE HARNESS | 1 | ADD TO CART | |
| 113 | 506010070 | CLAMP | 4 | ADD TO CART | |

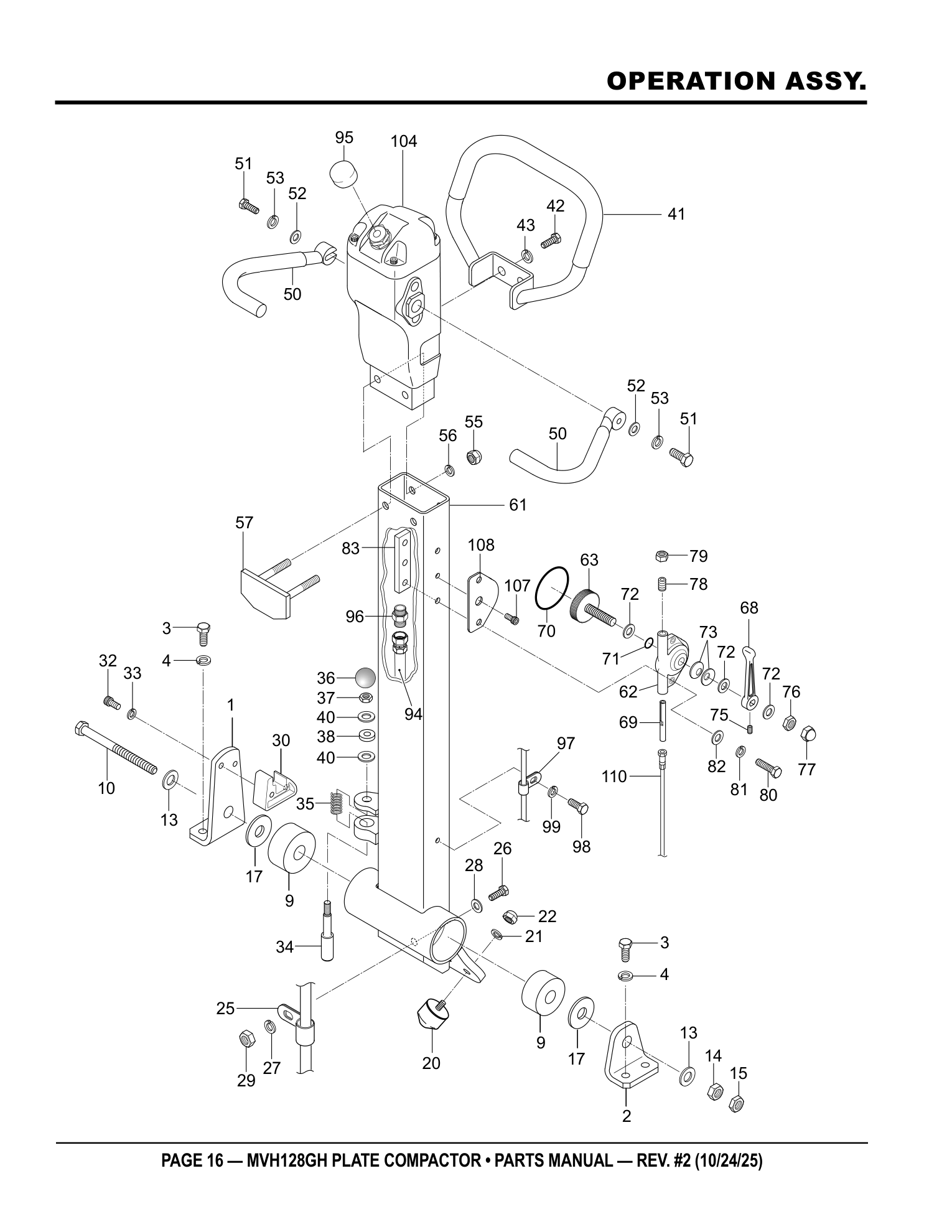

Page 16 — OPERATION ASSY.
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 471354640 | HANDLE BRACKET (R) | 1 | PARTS REQUEST | |
|
COMING HANDLE BRACKET (R)
471354640 · qty on machine: 1 | |||||
| 2 | 459338030 | HANDLE BRACKET (L) | 1 | ADD TO CART | |
| 3 | 001221230 | BOLT, 12X30 | 4 | PARTS REQUEST | |
|
COMING BOLT, 12X30
001221230 · qty on machine: 4 | |||||
| 4 | 030212300 | WASHER, LOCK M12 | 4 | ADD TO CART | |
| 9 | 470468900 | CUSHION RUBBER | 2 | ADD TO CART | |
| 10 | 001221680 | BOLT, 16X200 | 1 | PARTS REQUEST | |
|
COMING BOLT, 16X200
001221680 · qty on machine: 1 | |||||
| 13 | 031116260 | WASHER, FLAT M16 | 2 | ADD TO CART | |
| 14 | 020316130 | NUT M16 | 1 | ADD TO CART | |
| 15 | 020416100 | NUT M16 | 1 | ADD TO CART | |
| 17 | 952409690 | WASHER 17X45X4.5 | 2 | PARTS REQUEST | |
|
COMING WASHER 17X45X4.5
952409690 · qty on machine: 2 | |||||
| 20 | 939010490 | STOPPER RUBBER | 2 | ADD TO CART | |
| 21 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 22 | 022130806 | CAP NUT M8 | 2 | ADD TO CART | |
| 25 | 959408930 | CLIP 15 (M6) | 1 | ADD TO CART | |
| 26 | 001220625 | BOLT, 6X25 | 1 | ADD TO CART | |
| 27 | 030206150 | WASHER, LOCK M6 | 1 | ADD TO CART | |
| 28 | 031106100 | WASHER, FLAT M6 | 1 | ADD TO CART | |
| 29 | 020306050 | NUT M6 | 1 | ADD TO CART | |
| 30 | 471354710 | HANDLE ROCK STOPPER | 1 | ADD TO CART | |
| 32 | 001520825 | SOCKET HEAD BOLT 8X25 | 2 | PARTS REQUEST | |
|
COMING SOCKET HEAD BOLT 8X25
001520825 · qty on machine: 2 | |||||
| 33 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 34 | 471470170 | STOPPER, HANDLE | 1 | ADD TO CART | |
| 35 | 471470180 | SPRING, STOPPER | 1 | ADD TO CART | |
| 36 | 959409700 | BALL GRIP | 1 | ADD TO CART | |
| 37 | 020410060 | NUT M10 | 1 | ADD TO CART | |
| 38 | 456449980 | RUBBER PACKING | 1 | ADD TO CART | |
| 40 | 031110160 | WASHER, FLAT M10 | 2 | ADD TO CART | |
| 41 | 458214400 | HANDLE GRIP | 1 | ADD TO CART | |
| 42 | 001220820 | BOLT, 8X20 | 2 | ADD TO CART | |
| 43 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 50 | 471354800 | LEVER, TRAVEL | 2 | ADD TO CART | |
| 52 | 001220830 | BOLT, 8X30 | 2 | ADD TO CART | |
| 53 | 031108160 | WASHER, FLAT M8 | 2 | ADD TO CART | |
| 54 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 55 | 022710809 | NYLON NUT M8 | 2 | ADD TO CART | |
| 56 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 57 | 458337480 | PUMP HOLDER | 1 | PARTS REQUEST | |
|
COMING PUMP HOLDER
458337480 · qty on machine: 1 | |||||

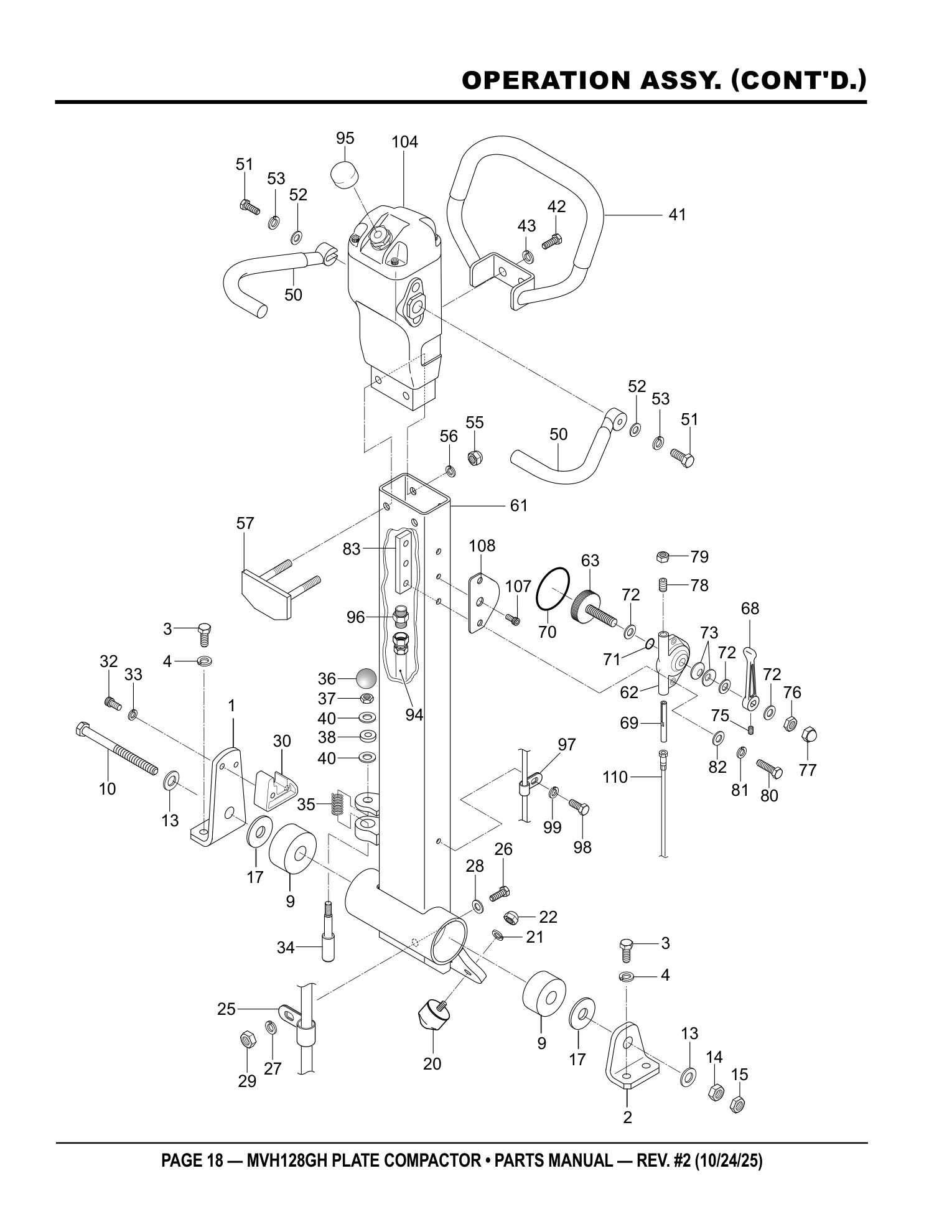

Page 18 — OPERATION ASSY. (CONT'D.)
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 61 | 471122170 | HANDLE BAR | 1 | ADD TO CART | |
| 62 | 362341550 | THROTTLE BODY | 1 | ADD TO CART | |
| 63 | 362456521 | THROTTLE GEAR | 1 | ADD TO CART | |
| 68 | 362455630 | THROTTLE LEVER | 1 | ADD TO CART | |
| 69 | 362455620 | SLIDER | 1 | ADD TO CART | |
| 70 | 050100450 | O-RING | 1 | ADD TO CART | |
| 71 | 050200100 | O-RING | 1 | ADD TO CART | |
| 72 | 031110160 | WASHER, FLAT M10 | 3 | ADD TO CART | |
| 73 | 032110180 | CONICAL SPRING WASHER M10 | 2 | ADD TO CART | |
| 75 | 096206006 | SOCKET HEAD SCREW 6X6 | 1 | ADD TO CART | |
| 76 | 020410060 | NUT, M10 | 1 | ADD TO CART | |
| 77 | 022131008 | CAP, NUT M10 | 1 | ADD TO CART | |
| 78 | 096208020 | SOCKET HEAD SCREW 8X20 | 1 | ADD TO CART | |
| 79 | 020408050 | NUT, M8 | 1 | ADD TO CART | |
| 80 | 001220625 | BOLT 6X25 | 2 | ADD TO CART | |
| 81 | 030206150 | WASHER, LOCK M6 | 2 | ADD TO CART | |
| 82 | 031106100 | WASHER, FLAT M6 | 2 | ADD TO CART | |
| 83 | 463455960 | THROTTLE NUT | 1 | ADD TO CART | |
| 94 | 459452060 | OIL HOSE | 1 | ADD TO CART | |
| 95 | 458451630 | BREATHER CAP | 1 | ADD TO CART | |
| 96 | 954003150 | MALE CONNECTOR, O-RING 1/4" | 1 | ADD TO CART | |
| 97 | 2067550101 | CLAMP COMPLETE | 1 | NO LONGER AVAILABLE | |
|
COMING CLAMP COMPLETE
2067550101 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 98 | 001220615 | BOLT 6X15 | 1 | ADD TO CART | |
| 99 | 030206150 | WASHER, LOCK M6 | 1 | ADD TO CART | |
| 104 | 459219610 | HAND PUMP | 1 | ADD TO CART | |
| 107 | 001520510 | SOCKET HEAD BOLT 5X10 | 1 | ADD TO CART | |
| 108 | 463455950 | SPACER,THROTTLE | 1 | ADD TO CART | |
| 110 | 956100078 | THROTTLE WIRE | 1 | ADD TO CART | |

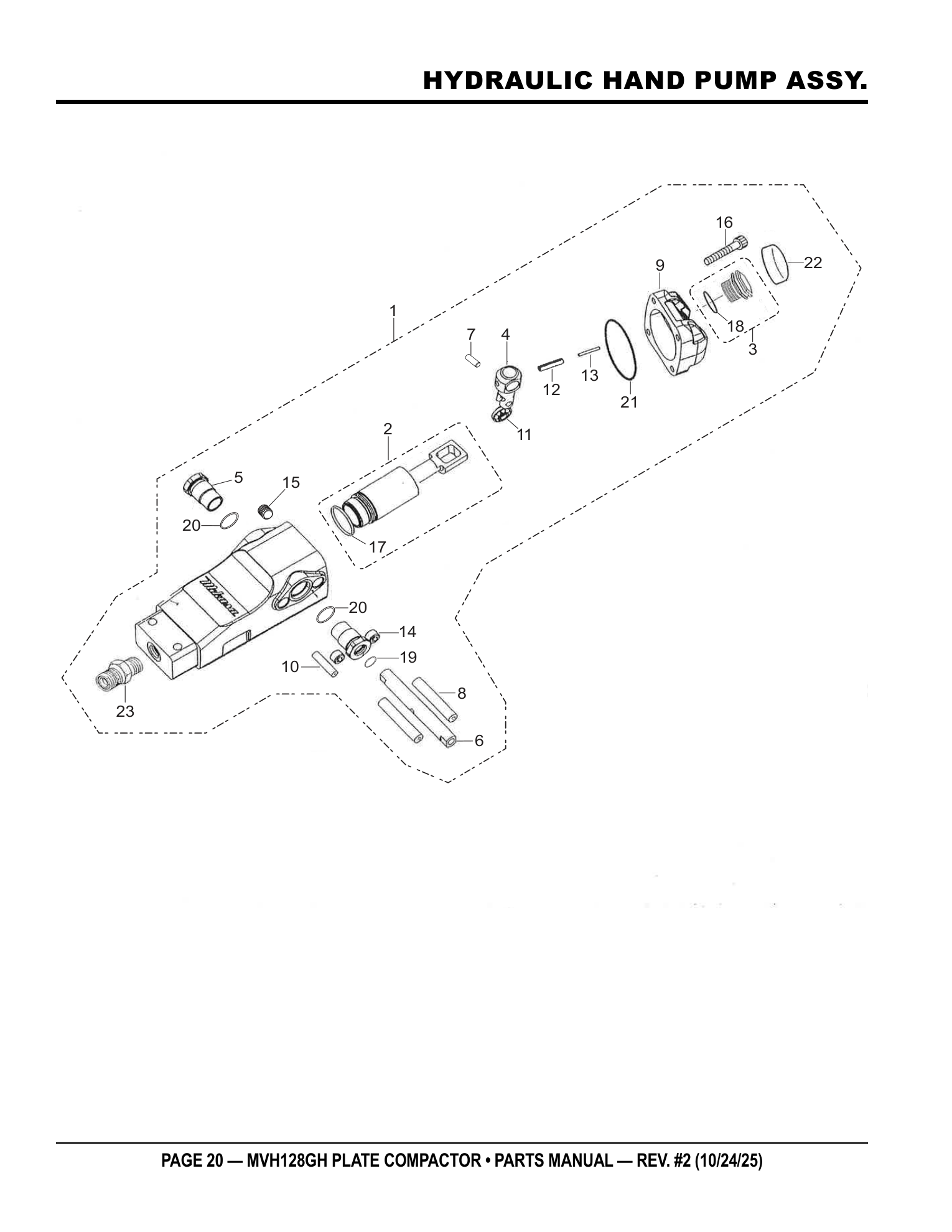

Page 20 — HYDRAULIC HAND PUMP ASSY.
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 459219610 | HAND PUMP | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | 459910100 | CYLINDER SPOOL | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 3# | 470910010 | BREATHER ASSY | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 4# | 459469370 | CONTROL ARM | 1 | ADD TO CART | |
 CONTROL ARM
459469370 · qty on machine: 1 Also included in kit 1 - HAND PUMP (459219610) view full part page → $123.95 IN A KIT + SOLD SOLO | |||||
| 5# | 459469380 | BUSHING | 2 | ADD TO CART | |
 BUSHING
459469380 · qty on machine: 2 Also included in kit 1 - HAND PUMP (459219610) view full part page → $90.95 IN A KIT + SOLD SOLO | |||||
| 6# | 459469390 | CONTROL SHAFT | 1 | ADD TO CART | |
| 7# | 470468940 | PIN, 7X18 | 1 | ADD TO CART | |
| 8# | 459469410 | STOPPER, 11X65 PIN | 2 | ADD TO CART | |
| 9# | 459219620 | COVER, HAND PUMP | 1 | PARTS REQUEST | |
|
COMING COVER, HAND PUMP
459219620 · qty on machine: 1 Also included in kit 1 - HAND PUMP (459219610) | |||||
| 10# | 459469420 | PIN, 8X68 | 1 | ADD TO CART | |
| 11# | 040300627 | BEARING 627/MC3 | 1 | ADD TO CART | |
| 12# | 025406028 | PIN, 6X28 SPRING | 1 | ADD TO CART | |
| 13# | 025403528 | PIN 3, 5X28 SPRING | 1 | ADD TO CART | |
| 14# | 16185 | PLUG, 1/4"NPT | 2 | REPLACES P/N 505015380 | ADD TO CART |
| 15# | 506010160 | PLUG, 1/8 SOCKET HEAD | 1 | ADD TO CART | |
| 16# | 001520625 | BOLT, 6X25 SOCKET HEAD | 4 | ADD TO CART | |
| 17#$ | 050300340 | O-RING, S-34 | 1 | ADD TO CART | |
| 18#% | 050200180 | O-RING, P-18 | 1 | ADD TO CART | |
| 19# | 050210150 | O-RING, P-15-1B | 2 | ADD TO CART | |
| 20# | 050200200 | O-RING, P-20 | 2 | ADD TO CART | |
| 21# | 050300670 | O-RING, S-67 | 1 | ADD TO CART | |
| 22# | 458451630 | CAP, BREATHER | 1 | ADD TO CART | |
| 23# | 954003150 | MALE CONNCTOR W/ O-RING 1/4 | 1 | ADD TO CART | |

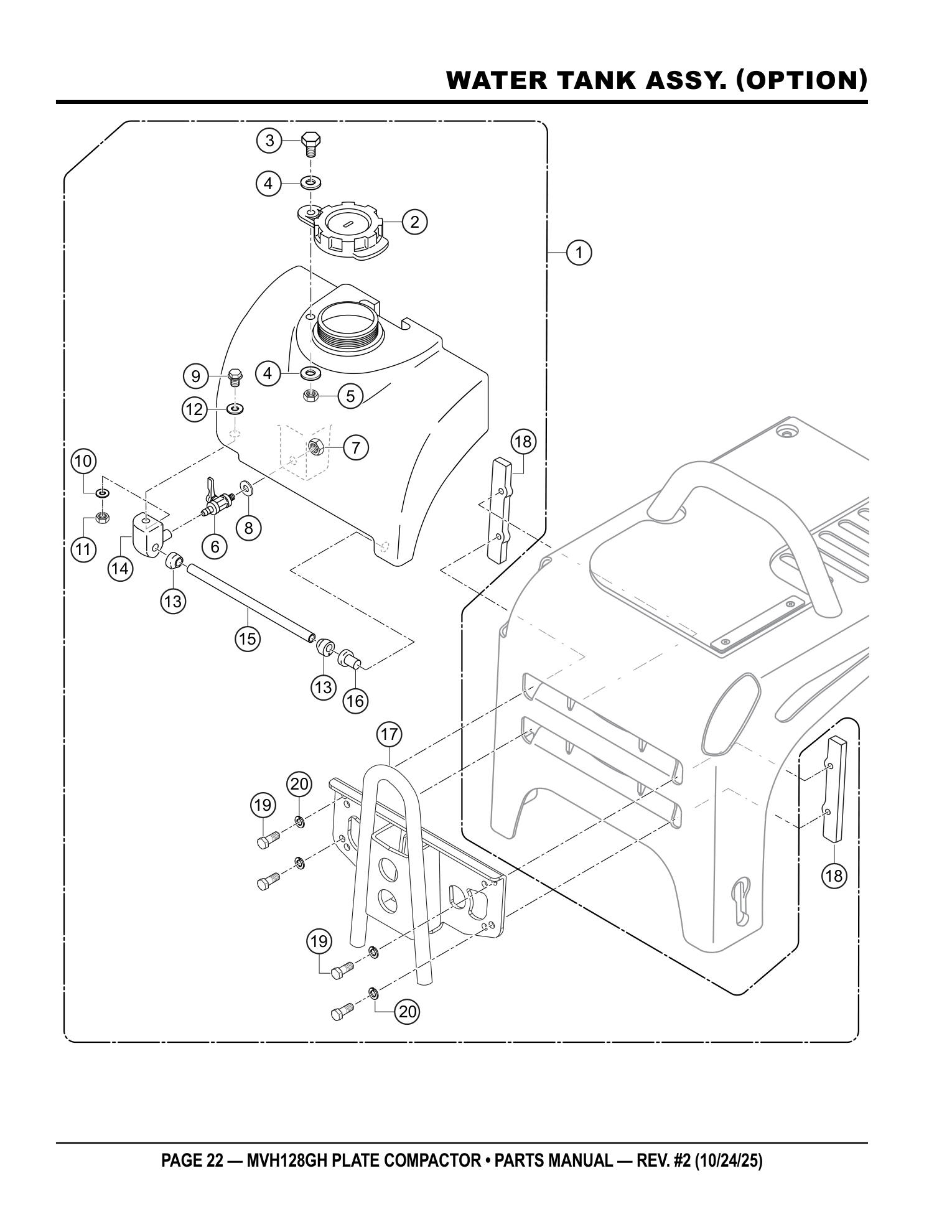

Page 22 — WATER TANK ASSY. (OPTION)
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 451008 | WATER TANK ASSEMBLY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | 954300343 | CAP, WATER TANK | 1 | PARTS REQUEST | |
|
COMING CAP, WATER TANK
954300343 · qty on machine: 1 Also included in kit 1 - WATER TANK ASSEMBLY (451008) | |||||
| 3# | 001241030 | BOLT, 10 X 30 U | 1 | ADD TO CART | |
| 4# | 033910160 | WASHER, FLAT M10 | 2 | ADD TO CART | |
| 5# | 022910270 | NUT, NYLOC M10 | 1 | ADD TO CART | |
| 6# | 954403241 | COCK PT1/4, BH-12111 (AL)/R | 1 | ADD TO CART | |
| 7# | 959403790 | NUT, PS-1/4 | 1 | ADD TO CART | |
| 8# | 953408270 | PACKING, 11.5 X 19.5 X 1 | 1 | ADD TO CART | |
| 9# | 001740825 | HEX. BOLT, FLANGE 8 X 25 | 1 | ADD TO CART | |
| 10# | 033910110 | WASHER, FLAT M8 | 1 | ADD TO CART | |
| 11# | 020308064 | NUT, M8 | 1 | ADD TO CART | |
| 12# | 953407410 | PACKING, 8 X 15 X 2T | 1 | ADD TO CART | |
| 13# | 418457890 | RUBBER (SPRINKLINK) | 2 | ADD TO CART | |
| 14# | 416338940 | PIPE HOLDER (L) | 1 | ADD TO CART | |
| 15# | 418344110 | SPRINKLING PIPE | 1 | ADD TO CART | |
| 16# | 418457010 | RUBBER CAP | 1 | ADD TO CART | |
| 17# | 471219750 | BRACKET, WATER TANK | 1 | ADD TO CART | |
| 18# | 471470360 | MOUNT, NUT | 2 | PARTS REQUEST | |
|
COMING MOUNT, NUT
471470360 · qty on machine: 2 Also included in kit 1 - WATER TANK ASSEMBLY (451008) | |||||
| 19# | 001220825 | BOLT, 8 X 25 T | 4 | ADD TO CART | |
| 20# | 030208200 | WASHER, LOCK | 4 | ADD TO CART | |

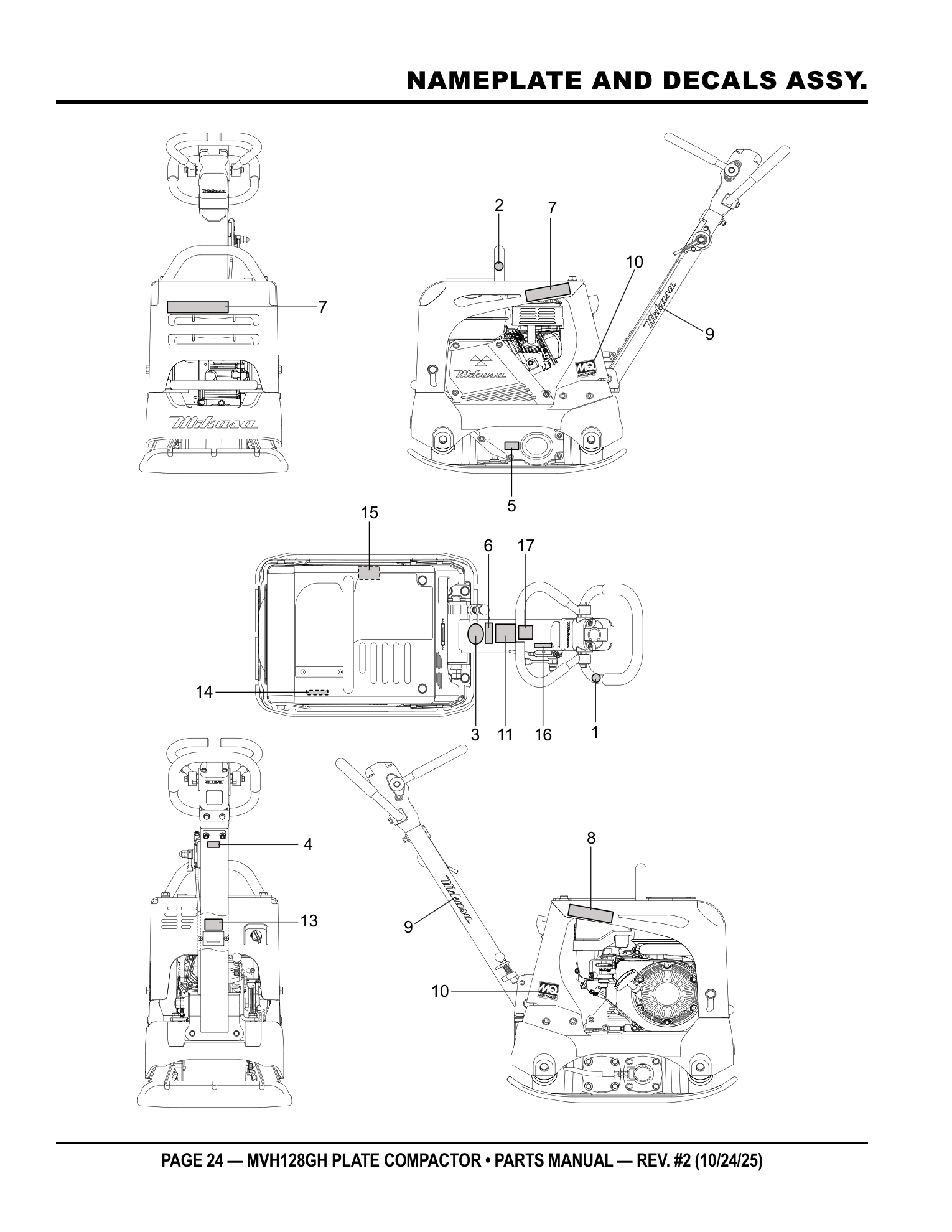

Page 24 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 920900090 | DECAL, DO NOT LIFT | 1 | REPLACES P/N 920214730 | ADD TO CART |
| 2 | 920214740 | DECAL, LIFTING POSITION | 1 | PARTS REQUEST | |
|
COMING DECAL, LIFTING POSITION
920214740 · qty on machine: 1 | |||||
| 3 | 920203330 | EAR PROTECTION LABEL | 1 | ADD TO CART | |
| 4 | 920211090 | DECAL, SHELL TELLUS OIL 32 | 1 | ADD TO CART | |
| 5 | 920201950 | DECAL, OIL SAE 10W-30 | 1 | ADD TO CART | |
| 6 | 920214100 | DECAL, E/G FIRE WARNING | 1 | ADD TO CART | |
| 7 | 920221730 | DECAL, MODEL (R, OR) | 2 | ADD TO CART | |
| 8 | 920221740 | DECAL, MODEL (L, OR) | 1 | ADD TO CART | |
| 9 | 920217130 | DECAL, MIKASA MARK | 2 | ADD TO CART | |
| 10 | 920220220 | DECAL, MQ MARK | 2 | ADD TO CART | |
| 11 | 920218390 | DECAL, CAUTION | 1 | ADD TO CART | |
| 13 | 920218130 | DECAL, E/G RPM 3600 | 1 | ADD TO CART | |
| 14 | 920208350 | DECAL, V-BELT RPF3330 | 1 | ADD TO CART | |
| 15 | 920221750 | PLATE, SERIAL NO./MQ | 1 | PARTS REQUEST | |
|
COMING PLATE, SERIAL NO./MQ
920221750 · qty on machine: 1 | |||||
| 16 | 920211690 | DECAL, LEVER OPERATION | 1 | ADD TO CART | |
| 17 | 920220810 | DECAL, CAUTION, LEVER | 1 | ADD TO CART | |

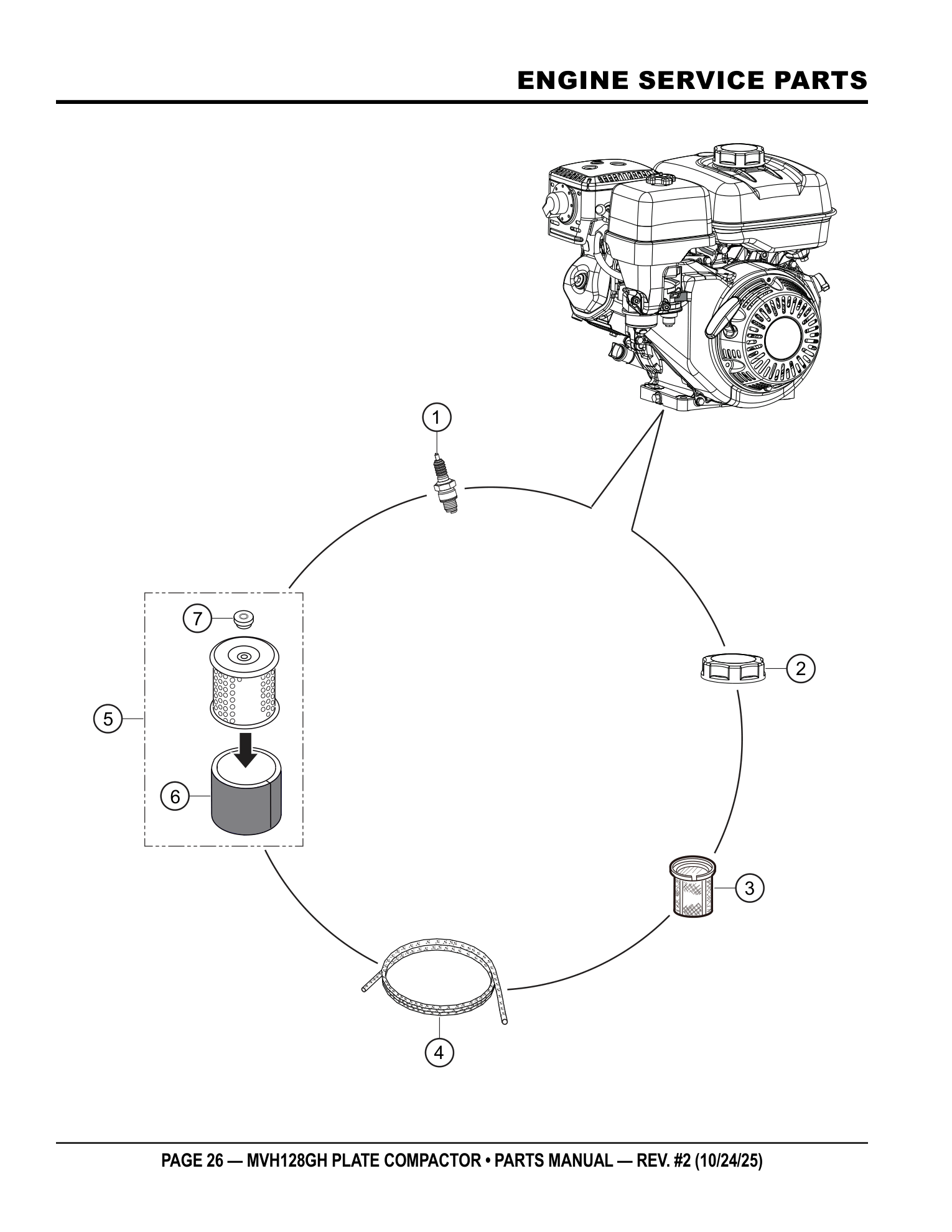

Page 26 — UNKNOWN
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 9807956846 | SPARK PLUG, BPR6ES | 1 | ADD TO CART | |
| 2 | 17620Z4H900 | CAP COMPLETE, FUEL TANK | 1 | ADD TO CART | |
| 3 | 17672Z4H00 | FUEL FILTER, FUEL TANK | 1 | PARTS REQUEST | |
|
COMING FUEL FILTER, FUEL TANK
17672Z4H00 · qty on machine: 1 | |||||
| 4 | 28462ZH8003 | ROPE, RECOIL STARTER | 1 | ADD TO CART | |
| 5 | 17210Z0V781 | ELEMENT, AIR CLEANER | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 6# | 17218Z0V780 | FILTER, OUTER | 1 | ADD TO CART | |
| 7# | 17232891000 | GROMMET | 1 | ADD TO CART | |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine

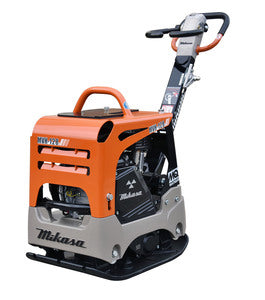

The Multiquip MVH128GH is a plate compactor built for compacting granular soils, gravel, and asphalt on grading, paving, and repair work. It weighs in at 268.96 lbs. (122 kg.). Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
458337770
Multiquip 458337770 Clutch Assembly - OEM Replacement Part for Plate Compactors
$341.95
17620Z4H900
Multiquip 17620Z4H900 Fuel Tank Cap - OEM Replacement Part
$187.95
451008
Multiquip 451008 Water Tank Kit - OEM Replacement Part for Plate Compactors
$390.95
455435051
Multiquip 455435051 Piston 22.4D - OEM Replacement Part for Plate Compactors
$93.95
458214400
Multiquip 458214400 Grip Handle - OEM Replacement Part for Plate Compactors
$124.95
458342590
Multiquip 458342590 Driven Gear MVH-120GH - OEM Replacement Part
$316.95
459219610
Multiquip 459219610 Hand Pump Assembly - OEM Replacement Part
$738.95
459338030
Multiquip 459338030 Bracket LH MVH-150G - OEM Replacement Part
$40.95
459346230
Multiquip 459346230 Piston Rod - OEM Replacement Part for Plate Compactors
$110.95
459452060
Multiquip 459452060 Hose Oil 940L - OEM Replacement Part for Plate Compactors
$83.95
459469380
Multiquip 459469380 Bushing - OEM Replacement Part for Plate Compactors
$90.95
459469390
Multiquip 459469390 Control Shaft - OEM Replacement Part for Plate Compactors
$90.95
470910010
Multiquip 470910010 Breather Assembly - OEM Replacement Part for Plate Compactors
$147.95
471122170
Multiquip 471122170 Handle Bar (JP) - OEM Replacement Part for Plate Compactors
$521.95
471219700
Multiquip 471219700 Cylinder - OEM Replacement Part for Reversible Plate Compactors
$238.95
471354540
Multiquip 471354540 Bearing Cover - OEM Replacement Part for Plate Compactors
$49.95
471354550
Multiquip 471354550 Vibrator Cover - OEM Replacement Part for Plate Compactors
$46.95
471354710
Multiquip 471354710 Handle Rock - OEM Replacement Part for Reversible Plate Compactors
$46.95
471354800
Multiquip 471354800 Travel Lever (Loop) - OEM Replacement Part for Reversible Plate Compactors
$132.95
471354810
Multiquip 471354810 Drive Gear - OEM Replacement Part for Plate Compactors
$212.95
472122280
Multiquip 472122280 Vibrating Plate - OEM Replacement Part for Plate Compactors
$1,089.95
472122400
Multiquip 472122400 Front Cover - OEM Replacement Part for Plate Compactors
$592.95
472219850
Multiquip 472219850 Dust Cover - OEM Replacement Part for Plate Compactors
$70.95
472219860
Multiquip 472219860 Center Cover - OEM Replacement Part for Plate Compactors
$274.95
472219870
Multiquip 472219870 Belt Cover Lower - OEM Replacement Part for Plate Compactors
$126.95
472355210
Multiquip 472355210 Pulley - OEM Replacement Part for Plate Compactor
$113.95
472355220
Multiquip 472355220 Guide Belt Cover - OEM Replacement Part for Plate Compactors
$107.95
472355240
Multiquip 472355240 Front Bumper - OEM Replacement Part for Plate Compactors
$270.95
472355270
Multiquip 472355270 Rotary Shaft Driven - OEM Replacement Part for Plate Compactor
$177.95
472471010
Multiquip 472471010 Shock Absorber - OEM Replacement Part for Plate Compactors
$58.95
472471020
Multiquip 472471020 Eccentric Rotator - OEM Replacement Part for Plate Compactors
$88.95
472471040
Multiquip 472471040 Rubber Cover - OEM Replacement Part for Plate Compactors
$35.95
912216023
Multiquip 912216023 Engine Assembly - OEM Replacement Part for Plate Compactors
$943.95
954403241
Multiquip 954403241 Water Valve Assembly - OEM Replacement Part for Compactors
$48.95
955010311
Multiquip 955010311 Tachometer - OEM Replacement Part for Plate Compactors and Rammers
$155.95
001220615
BOLT 6X15
001220625
BOLT, 6X25
001220812
BOLT, 8X12
001220820
BOLT, 8X20
$1.49
001220825
BOLT, 8X25
001220830
BOLT, 8X30
001220840
BOLT, 8X40
001221015
BOLT, 10X15
001221230
BOLT, 12X30
001221235
BOLT, 12X35
001221680
BOLT, 16X200
001241030
BOLT, 10 X 30 U
$3.95
001520510
SOCKET HEAD BOLT 5X10
001520552
SOCKET HEAD BOLT, 8X60
$2.61
001520625
BOLT, 6X25 SOCKET HEAD
$0.95
001520825
SOCKET HEAD BOLT, 8X25
001520851
SOCKET HEAD BOLT, 8X55
$1.95
001521030
SOCKET HEAD BOLT, 10X30
$1.95
001521235
SOCKET HEAD BOLT, 12X35
001740825
HEX. BOLT, FLANGE 8 X 25
$2.78
009110072
PAN HEAD SCREW, 5X35
$1.95
009120306
SOCKET HEAD BOLT, 10X30
$3.95
009120408
SUNK HEAD BOLT, 8X20
$1.95
009120424
SOCKET HEAD BOLT, 6X25
$2.95
020306050
NUT M6
020308060
NUT M8
020308064
NUT, M8
020310080
NUT M10
$1.67
020312100
NUT, M12
020316130
NUT M16
$0.79
020408050
NUT, M8
$0.95
020410060
NUT M10
020416100
NUT M16
$2.95
022130806
CAP NUT M8
$1.51
022131008
CAP, NUT M10
$2.68
022710506
NYLON NUT M5
$0.86
022710607
NYLON NUT M6
$0.87
022710809
NYLON NUT M8
$1.55
022910270
NUT, NYLOC M10
$3.95
025403528
PIN 3, 5X28 SPRING
$0.86
025406028
PIN, 6X28 SPRING
$1.84
025508050
PIN
$5.95
030205130
WASHER, LOCK M5
$0.26
030206150
WASHER, LOCK M6
$0.07
030208200
WASHER, LOCK M8
$0.23
030210250
WASHER, LOCK M10
$0.28
030212300
WASHER, LOCK M12
$0.15
031105080
WASHER, FLAT M5
031106100
WASHER, FLAT M6
031108160
WASHER, FLAT M8
031110160
WASHER, FLAT M10
$0.40
031112230
WASHER, FLAT M12
$0.95
031116260
WASHER, FLAT M16
0320050150
KEY
$6.95
032110180
CONICAL SPRING WASHER M10
$1.95
033910110
WASHER, FLAT M8
033910160
WASHER, FLAT M10
$0.94
040300627
BEARING 627/MC3
$9.95
040306307
BEARING
$28.95
040306907
BEARING
$26.95
042006000
BEARING
$12.95
050100450
O-RING
$2.95
050200100
O-RING
$1.32
050200180
O-RING, P-18
$6.95
050200200
O-RING, P-20
$2.95
050210150
O-RING, P-15-1B
$1.39
050300340
O-RING, S-34
$5.38
050300670
O-RING, S-67
$2.81
050710080
O-RING
$23.95
060202060
OIL SEAL
$12.95
070100332
V-BELT
$31.95
080100260
STOP RING
$1.95
080200350
STOP RING
$2.95
092006010
FLAT HEAD SCREW, 6X10
$0.26
096206006
SOCKET HEAD SCREW 6X6
$2.95
096208020
SOCKET HEAD SCREW 8X20
15550ZK8P90
DRAIN JOINT
15552ZB9000
DRAIN HOSE
$14.95
16185
PLUG, 1/4"NPT
$0.36
17210Z0V781
ELEMENT, AIR CLEANER
$26.95
17232891000
GROMMET
$10.95
17672Z4H00
FUEL FILTER, FUEL TANK
2067550101
CLAMP, COMPLETE
28462ZH8003
ROPE, RECOIL STARTER
$22.95
362341550
THROTTLE BODY
$19.95
362455620
SLIDER
$7.95
362455630
THROTTLE LEVER
$9.95
362456521
THROTTLE GEAR
$11.95
371467760
RETURN SPRING
416338940
PIPE HOLDER (L)
$19.95
418344110
SPRINKLING PIPE
$13.95
418457010
RUBBER CAP
$3.95
418457890
RUBBER (SPRINKLINK)
$8.95
455010070
COPPER PACKING
$17.95
456449980
RUBBER PACKING
$2.95
458337480
PUMP HOLDER
458451630
BREATHER CAP
$5.95
459219620
COVER, HAND PUMP
459462050
JOINT
459469410
STOPPER, 11X65 PIN
$28.95
459469420
PIN, 8X68
$21.95
463455950
SPACER,THROTTLE
$11.95
463455960
THROTTLE NUT
$9.95
467466980
LEAD WIRE (SW-GROUND)
$13.95
468467570
READ CORD
$17.95
470468900
CUSHION RUBBER
$11.95
470468940
PIN, 7X18
$15.95
471219750
BRACKET, WATER TANK
$243.15
471354640
HANDLE BRACKET (R)
471470090
CLUTCH, WASHER
$21.95
471470140
WASHER, PULLEY
$13.95
471470170
STOPPER, HANDLE
$30.95
471470180
SPRING, STOPPER
$5.95
471470360
MOUNT, NUT
472122290
BASE
472122390
BELT COVER (OUT)
$87.80
472355230
DUST SPONGE (OUT)
$11.95
472355250
BELT COVER, (IN)
472471050
STOPPER, COVER
472471230
CLUTCH, SPACER
506010070
CLAMP
$0.95
515450380
WIRE HARNESS
$6.95
617465130
COLLAR
$1.82
90131ZE1000
BOLT, DRAIN PLUG
$5.95
90601ZE1000
WASHER, DRAIN PLUG
$2.70
920201950
DECAL, OIL SAE 10W-30
$0.95
920203330
EAR PROTECTION LABEL
$1.95
920208350
DECAL, V-BELT RPF3330
$1.47
920211090
DECAL, SHELL TELLUS OIL 32
$1.95
920211690
DECAL, LEVER OPERATION
$0.69
920214100
DECAL, E/G FIRE WARNING
$12.95
920217130
DECAL, MIKASA MARK
$18.95
920218130
DECAL, E/G RPM 3600
$3.95
920218390
DECAL, CAUTION
$13.95
920220220
DECAL, MQ MARK
$4.95
920220810
DECAL, CAUTION, LEVER
$15.95
920221730
DECAL, MODEL (R, OR)
$14.95
920221740
DECAL, MODEL (L, OR)
$14.95
920221750
PLATE, SERIAL NO./MQ
920900090
DECAL, DO NOT LIFT
$7.95
939010490
STOPPER RUBBER
$23.95
951400990
KEY, 7X7X20
$5.95
951405460
KEY, 10X8X19
$4.95
952407930
COLLAR
$16.95
952409690
WASHER 17X45X4.5
953010060
SEAL CAP
$11.95
953404600
COPPER PACKING
$4.95
953405260
PACKING 1/4"
$7.95
953405270
PLUG
$16.95
953407410
PACKING, 8 X 15 X 2T
$2.95
953408270
PACKING, 11.5 X 19.5 X 1
$1.95
954003150
MALE CONNECTOR, O-RING 1/4"
$6.95
954010020
CONNECTOR, 1/4"
$11.95
954010070
HOSE BAND
955010307
CLIP BELT
$1.54
955010317
CURL CORD
955301010
STOP SWITCH, ENGINE
$27.95
955407970
WIRING FIXED BASE
$2.95
956100078
THROTTLE WIRE
$30.95
959021827
SPIRAL TUBE
$3.95
959026836
RUBBER TUBE
959403790
NUT, PS-1/4
$13.95
959407260
CLIP D6
$1.95
959408930
CLIP 15 (M6)
$5.95
959409700
BALL GRIP
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
