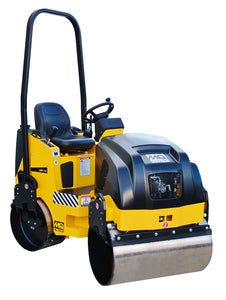

Multiquip AR14 36" Asphalt Roller
The parts bench

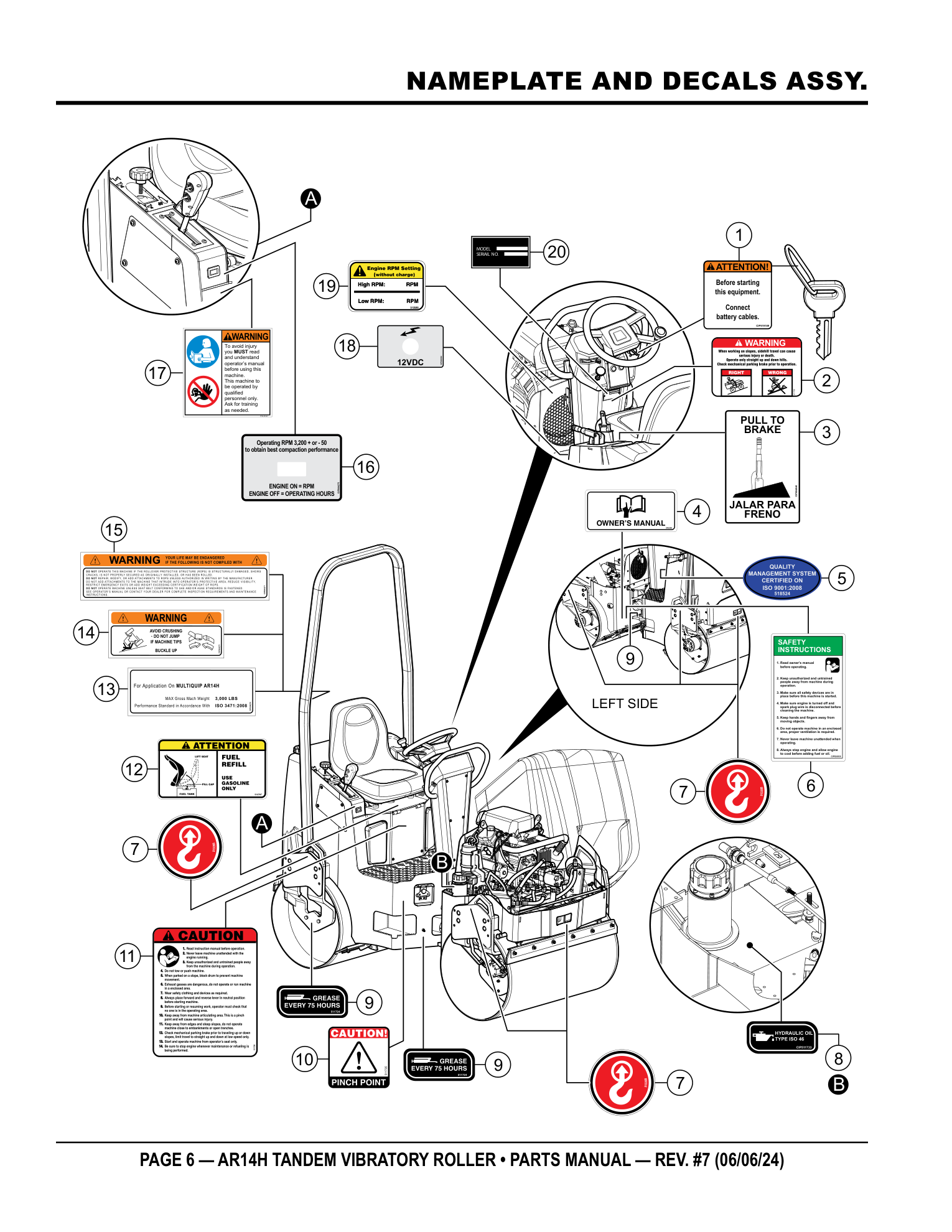

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 519189 | DECAL: WARNING, BATTERY CABLES | 1 | ADD TO CART | |
| 2 | 511738 | DECAL: DANGER, WORKING ON SLOPES | 1 | ADD TO CART | |
| 3 | 804046 | DECAL: PULL TO BRAKE | 1 | ADD TO CART | |
| 4 | 34536 | DECAL: READ OWNER'S MANUAL | 1 | ADD TO CART | |
| 5 | 518524 | DECAL: QUALITY MANAGEMENT ISO | 1 | ADD TO CART | |
| 6 | 520935 | DECAL: SAFETY INSTRUCRIONS | 1 | ADD TO CART | |
| 7 | 513393 | DECAL: SECURING POINT INDICATOR | 4 | POINT ARROW UP | ADD TO CART |
| 8 | 511733 | DECAL: HYDRAULIC OIL INDICATOR | 1 | ADD TO CART | |
| 9 | 511724 | DECAL: GREASE EVERY 75 HOURS | 2 | ADD TO CART | |
| 10 | 511735 | DECAL: PINCH POINT | 1 | ADD TO CART | |
| 11 | 511739 | DECAL: CAUTION, READ INSTRUCTIONS | 1 | ADD TO CART | |
| 12 | 513707 | DECAL: ATTENTION, FUEL REFILL | 1 | ADD TO CART | |
| 13 | 804270 | DECAL: APPLICATION, MQ AR14H | 1 | ADD TO CART | |
| 14 | 804269 | DECAL: WARNING SEAT BELT | 1 | ADD TO CART | |
| 15 | 804271 | DECAL: WARNING, ROPS | 1 | ADD TO CART | |
| 16 | 804275 | DECAL: OPERATING ENGINE RPM | 1 | ADD TO CART | |
| 17 | 35137 | DECAL: READ MANUAL ASK FOR TRAINING | 1 | ADD TO CART | |
| 18 | 804044 | DECAL: 12 VDC ACCESSORY | 1 | PARTS REQUEST | |
|
COMING DECAL: 12 VDC ACCESSORY
804044 · qty on machine: 1 | |||||
| 19 | 513580 | DECAL: ENGINE RPM SETTING, NO CHRG. | 1 | ADD TO CART | |
| 20 | SERIAL PLATE | 1 | CONTACT MQ PARTS DEPT. | SEE REMARKS | |
|
COMING SERIAL PLATE
· qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
| |||||

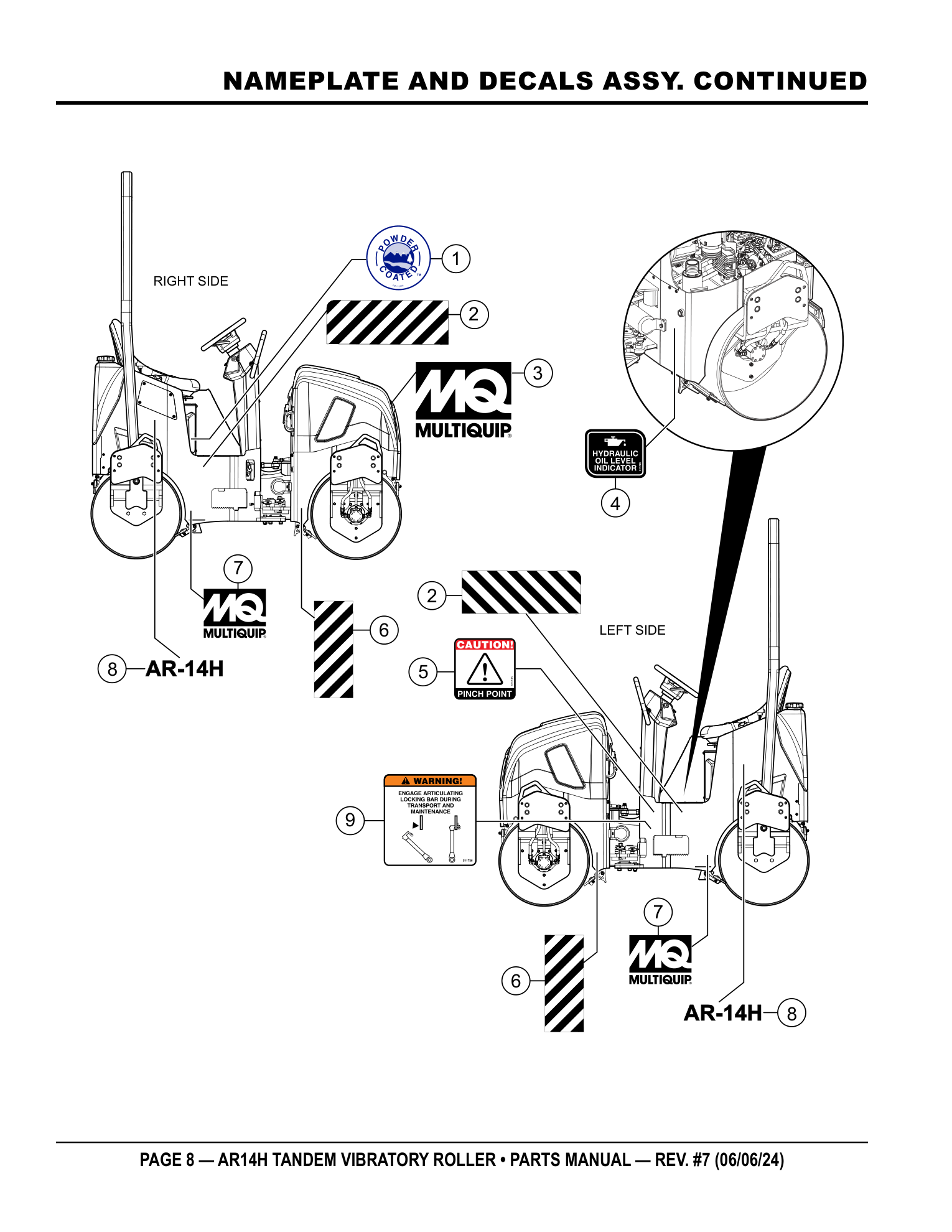

Page 8 — NAMEPLATE AND DECALS ASSY. CONTINUED
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 13118 | DECAL: POWDER COATED | 1 | ADD TO CART | |
| 2 | 513469 | DECAL: CAUTION STRIPE PATTERN | 1 | HORIZONTAL PLACEMENT | ADD TO CART |
| 3 | 804120 | DECAL: MQ LOGO, LARGE | 1 | ADD TO CART | |
| 4 | 511726 | DECAL: HYDRAULIC OIL LEVEL INDICATOR | 1 | ADD TO CART | |
| 5 | 511735 | DECAL: PINCH POINT | 1 | ADD TO CART | |
| 6 | 511718 | DECAL: CAUTION STRIPE PATTERN | 2 | VERTICAL PLACEMENT | ADD TO CART |
| 7 | 513688 | DECAL: MQ LOGO, SMALL | 2 | ADD TO CART | |
| 8 | 804042 | DECAL: AR-14H MQ LOGO | 2 | ADD TO CART | |
| 9 | 511736 | DECAL: WARNING, ENGAGE LOCK BAR | 1 | ADD TO CART | |

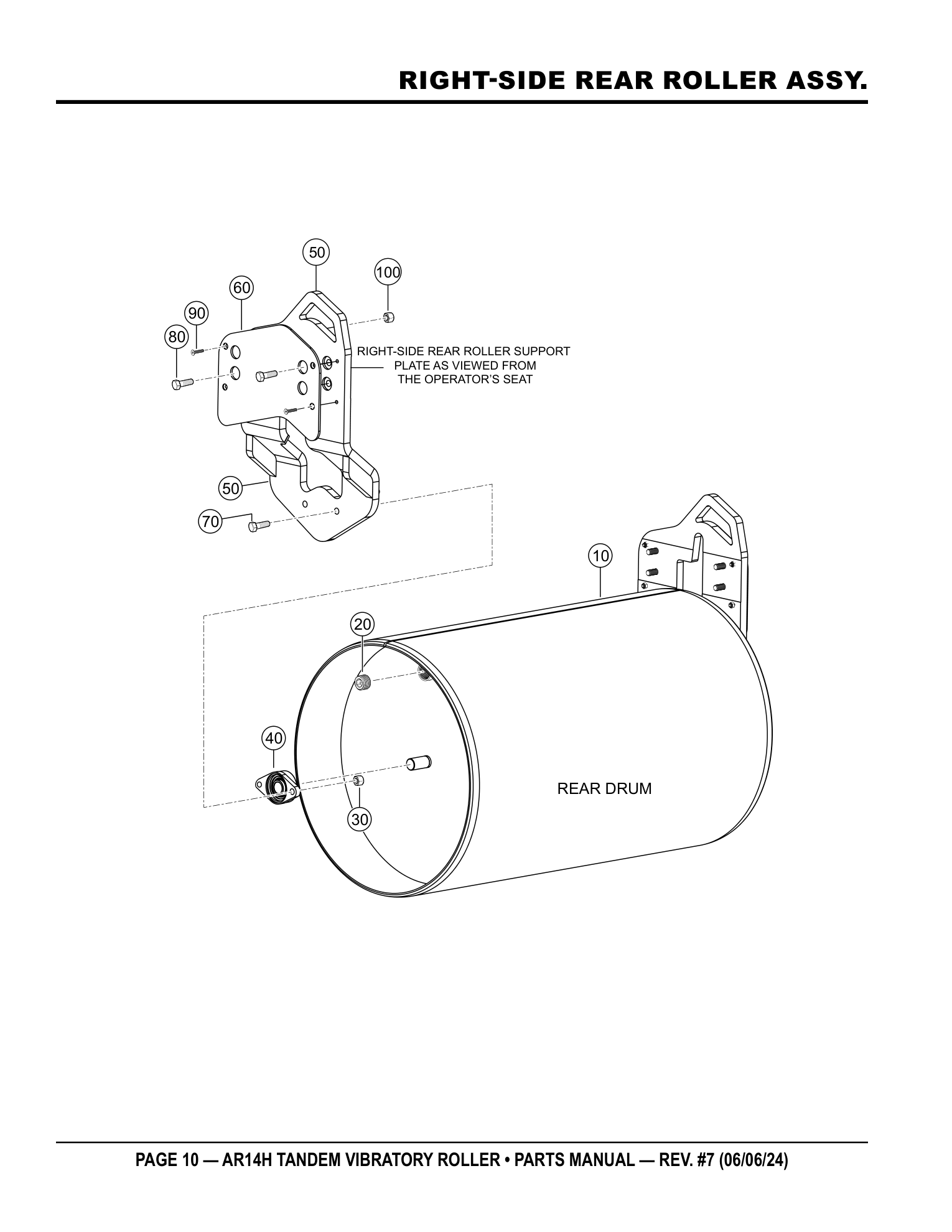

Page 10 — RIGHT-SIDE REAR ROLLER ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 800718 | ROLLER, REAR | 1 | ADD TO CART | |
| 20 | 505988 | PLUG, 5/8" ALLEN HEAD | 1 | ADD TO CART | |
| 30 | 492584 | NUT, LOCK 1/2" DIA. NC | 2 | ADD TO CART | |
| 40 | 503735 | BEARING, FLANGE | 1 | ADD TO CART | |
| 50 | 800724 | REAR ROLLER SUPPORT PLATE, RS | 1 | ADD TO CART | |
| 60 | 802783 | COVER, RIGHT REAR | 1 | PARTS REQUEST | |
|
COMING COVER, RIGHT REAR
802783 · qty on machine: 1 | |||||
| 70 | 492396 | HEX HEAD CAP SCREW, 1/2" NCX2" G5 | 2 | PARTS REQUEST | |
|
COMING HEX HEAD CAP SCREW, 1/2" NCX2" G5
492396 · qty on machine: 2 | |||||
| 80 | EM963692 | BOLT 1/2" UNCX1-1/2" | 4 | REPLACES P/N 492394 | ADD TO CART |
| 90 | 802408 | CNTR. SNK. SCREW, 1/4" NCX1-1/4" G5 | 4 | ADD TO CART | |
| 100 | 492581 | NUT 1/4"-20, NYLON LOCKNUT | 4 | ADD TO CART | |

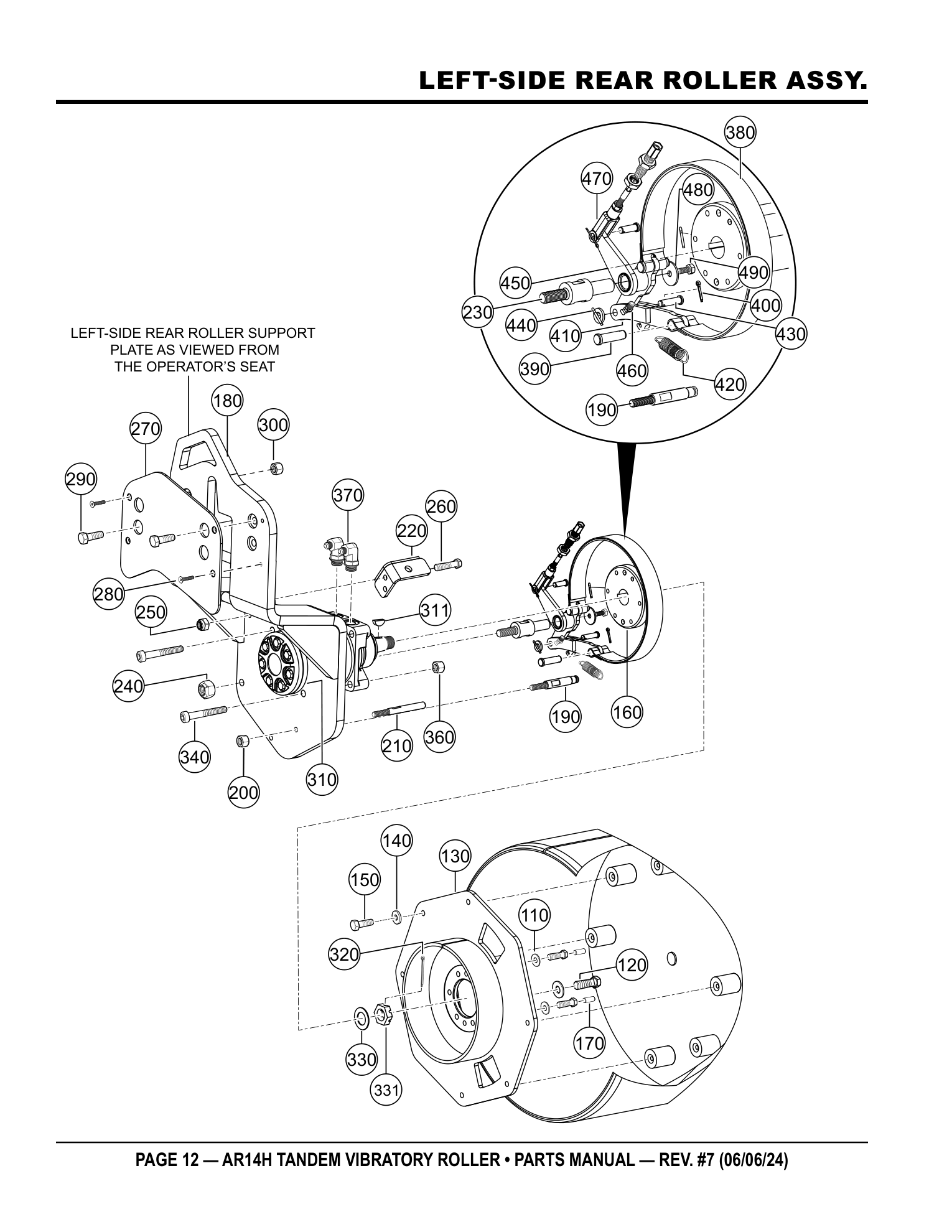

Page 12 — LEFT-SIDE REAR ROLLER ASSY.
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 110 | 3019092 | WASHER, 3/8" | 6 | REPLACES P/N 508346 | ADD TO CART |
| 120 | EM963609 | CAP SCREW, 3/8-16 X 1" NC G5 | 6 | ADD TO CART | |
| 130 | 802187 | DRIVE PLATE | 1 | ADD TO CART | |
| 140 | 3019092 | WASHER, 3/8" | 6 | REPLACES P/N 508346 | ADD TO CART |
| 150 | EM963610 | BOLT, 3/8" NC X 1-1/4" G5 | 6 | REPLACES P/N 492376 | ADD TO CART |
| 160 | 505984 | HUB | 1 | ADD TO CART | |
| 170 | EM503803 | PINS, DOWEL 3/8"X 1" | 2 | REPLACES P/N 503803 | ADD TO CART |
| 180 | 800730 | REAR ROLLER SUPPORT PLATE, LS | 1 | ADD TO CART | |
| 190 | 802977 | SHAFT, BRAKE | 1 | ADD TO CART | |
| 200 | 505081 | NUT HEX 7/16" | 2 | ADD TO CART | |
| 210 | 802978 | SHAFT, BRAKE | 1 | ADD TO CART | |
| 220 | 802241 | BRACKET, BRAKE | 1 | ADD TO CART | |
| 230 | 802976 | SHAFT, BRAKE PIVOT | 1 | ADD TO CART | |
| 240 | 504724 | NYLOCK NUT 5/8" NC G5 | 1 | ADD TO CART | |
| 250 | EM969013 | NYLOCK NUT | 2 | REPLACES P/N 492583 | ADD TO CART |
| 260 | 492378 | BOLT, G5, HHCS | 2 | ADD TO CART | |
| 270 | 800743 | COVER, LEFT REAR | 1 | ADD TO CART | |
| 280 | 802408 | COUNTER SUNK BOLT 1/4: NC X 1-1/4" | 4 | ADD TO CART | |
| 290 | EM963692 | BOLT 1/2" UNCX1-1/2" | 4 | REPLACES P/N 492394 | ADD TO CART |
| 300 | 492581 | NUT 1/4"-20 NYLON LOCKNUT | 4 | ADD TO CART | |
| 310 | 515396 | MOTOR, HYDRAULIC | 1 | ADD TO CART | |
| 311 | 07011-015 | KEY, WOODRUFF #1008 5/16" X 1" | 1 | ADD TO CART | |
| 320 | EM924006 | PIN, COTTER | 1 | REPLACES P/N 491690 | ADD TO CART |
| 330 | 511159 | WASHER, FLAT 1" | 1 | ADD TO CART | |
| 331 | 025113 | CASTLE NUT, 1"-20 THREAD | 1 | ADD TO CART | |
| 340 | 802915 | HEX HEAD BOLT 1/2" NC X 3" G8 | 4 | NO LONGER AVAILABLE | |
|
COMING HEX HEAD BOLT 1/2" NC X 3" G8
802915 · qty on machine: 4 Factory replaced this part - current number EM963109 NO LONGER AVAILABLE
| |||||
| 360 | 492584 | NUT, LOCK 1/2" DIA. NC | 4 | ADD TO CART | |
| 370 | 506191 | FITTING | 2 | ADD TO CART | |
| 380 | 29298-001 | BRAKE BAND ASSEMBLY | 1 | ADD TO CART | |
| 390 | 530344 | PIN CLEVIS 1/2" | 2 | ADD TO CART | |
| 400 | EM491686 | PIN COTTER | 3 | REPLACES P/N 491686 | ADD TO CART |
| 410 | 802083 | SUPPORT, BRAKE | 1 | ADD TO CART | |
| 420 | 802233 | SPRING, BRAKE | 1 | ADD TO CART | |
| 430 | 530343 | PIN CLEVIS 3/8" | 1 | ADD TO CART | |
| 440 | 3019092 | WASHER, FLAT 3/8" | 1 | REPLACES P/N 506488 | ADD TO CART |
| 450 | 802079 | BRACKET, BRAKE | 1 | ADD TO CART | |
| 460 | 491701 | FITTING ZERK | 1 | ADD TO CART | |
| 470 | 530342 | YOKE, ADJUSTABLE | 1 | ADD TO CART | |
| 480 | 100536 | WASHER, BRAKE | 1 | ADD TO CART | |
| 490 | 492363 | BOLT 5/16" DIA. NCX3/4" G5 | 1 | ADD TO CART | |

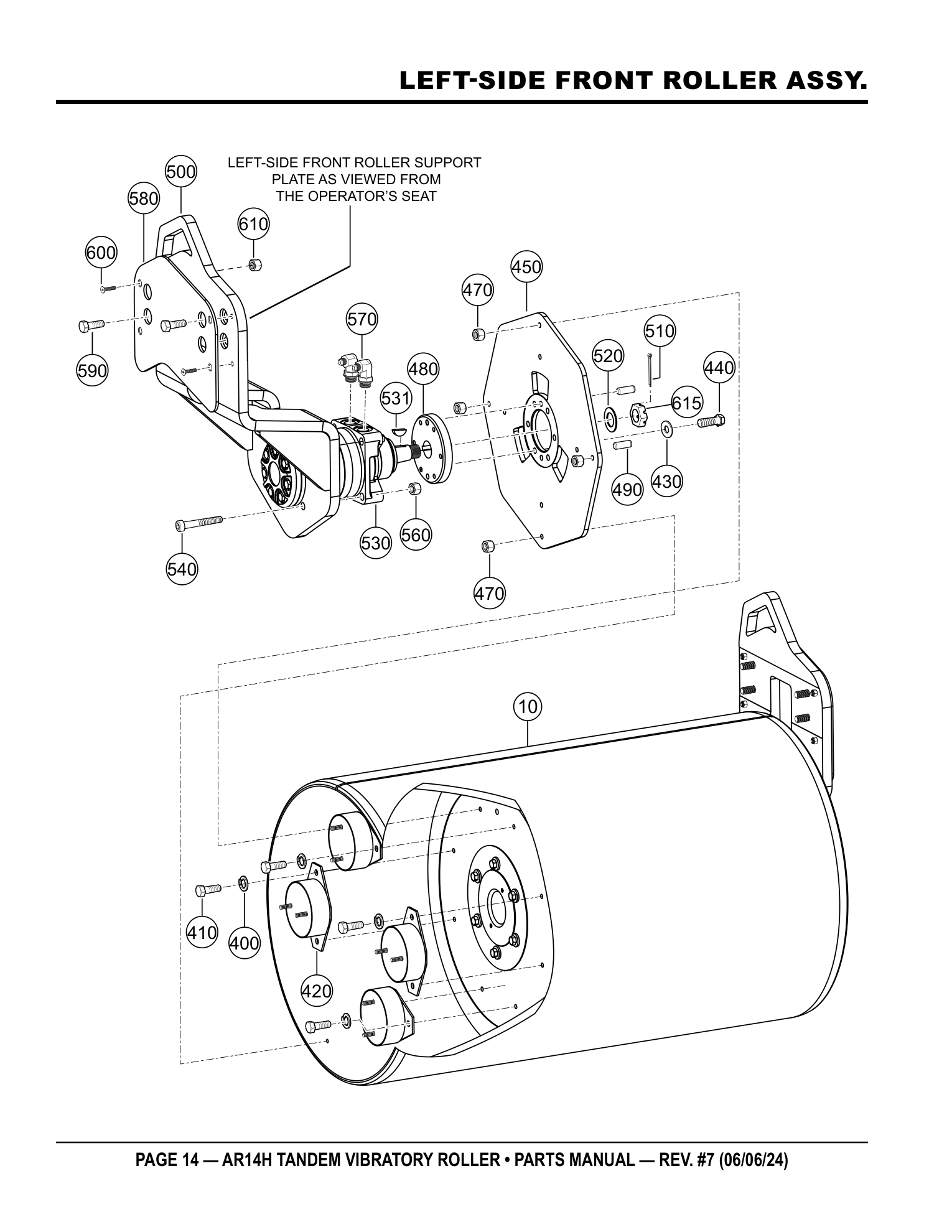

Page 14 — LEFT-SIDE FRONT ROLLER ASSY.
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 800734 | ROLLER, FRONT | 1 | PARTS REQUEST | |
|
COMING ROLLER, FRONT
800734 · qty on machine: 1 | |||||
| 400 | 0166A | WASHER, LOCK 3/8" DIA | 8 | REPLACES P/N 492624 | ADD TO CART |
| 410 | EM963610 | CAP SCREW | 8 | REPLACES P/N 492375 | ADD TO CART |
| 420 | 800711 | RUBBER SHOCK MOUNT | 4 | ADD TO CART | |
| 430 | 3019092 | WASHER 3/8" | 6 | REPLACES P/N 508346 | ADD TO CART |
| 440 | EM963610 | CAP SCREW | 6 | REPLACES P/N 492375 | ADD TO CART |
| 450 | 800742 | DRIVE PLATE | 1 | ADD TO CART | |
| 470 | 2105164 | NUT, NYLON 5/16-18 | 8 | REPLACES P/N 492582 | ADD TO CART |
| 480 | 505984 | HUB | 1 | ADD TO CART | |
| 490 | EM503803 | PINS DOWEL 3/8X1" | 2 | REPLACES P/N 503803 | ADD TO CART |
| 500 | 800737 | FRONT ROLLER SUPPORT PLATE, LS | 1 | PARTS REQUEST | |
|
COMING FRONT ROLLER SUPPORT PLATE, LS
800737 · qty on machine: 1 | |||||
| 510 | EM924006 | PIN COTTER | 1 | REPLACES P/N 491690 | ADD TO CART |
| 520 | 511159 | WASHER, 1" | 1 | ADD TO CART | |
| 530 | 515396 | MOTOR, HYDRAULIC | 1 | ADD TO CART | |
| 531 | 07011-015 | KEY, WOODRUFF #1008 5/16" X 1" | 1 | ADD TO CART | |
| 540 | 802915 | BEARING, EXCITER SHAFT | 4 | NO LONGER AVAILABLE | |
|
COMING BEARING, EXCITER SHAFT
802915 · qty on machine: 4 Factory replaced this part - current number EM963109 NO LONGER AVAILABLE
| |||||
| 560 | 492584 | NUT, LOCK 1/2" DIA. NC | 4 | ADD TO CART | |
| 570 | 506191 | FITTING | 2 | ADD TO CART | |
| 580 | 800743 | RETAINER | 1 | ADD TO CART | |
| 590 | EM963692 | BOLT, 1/2" UNCX1-1/2" | 4 | REPLACES P/N 492394 | ADD TO CART |
| 600 | 802408 | COUNTER SUNK BLT. 1/4" NC X 1-1.4" G8 | 4 | ADD TO CART | |
| 610 | 492581 | NUT, 1/4"-20 NYLON LOCKNUT | 8 | ADD TO CART | |
| 615 | 025113 | CASTLE NUT, 1-20 THREAD | 1 | ADD TO CART | |

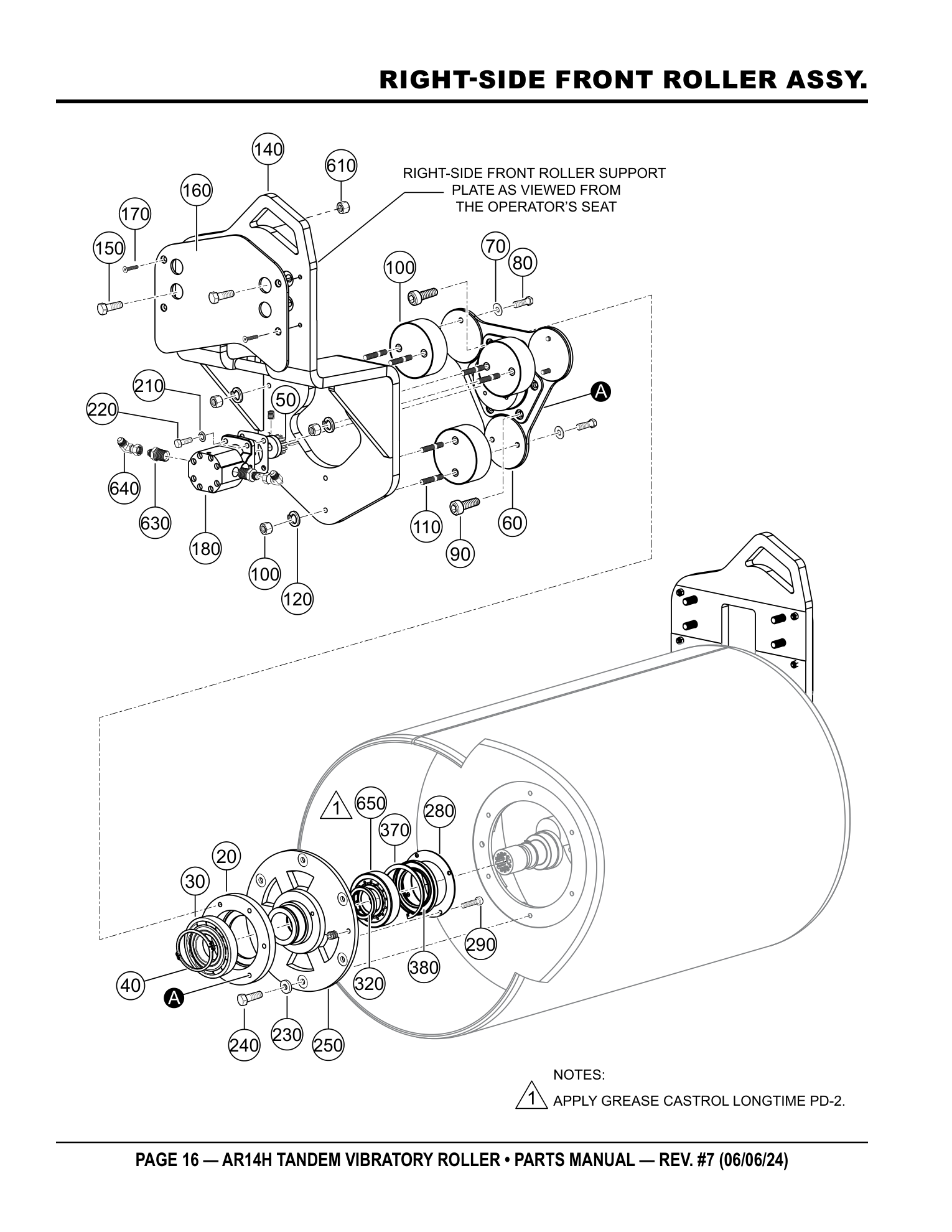

Page 16 — RIGHT-SIDE FRONT ROLLER ASSY.
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 506145 | HOUSING BEARING | 1 | ADD TO CART | |
| 30 | 506147 | BEARING | 1 | ADD TO CART | |
| 40 | 506136 | RING RETAINING | 1 | ADD TO CART | |
| 50 | 508665 | COUPLER | 1 | ADD TO CART | |
| 60 | 506142 | MOUNT, VIBRATION | 1 | ADD TO CART | |
| 70 | EM923023 | WASHER, FLAT 5/16" | 6 | REPLACES P/N 492597 | ADD TO CART |
| 80 | 011208025 | BOLT, 8X25T | 6 | REPLACES P/N 508342 | ADD TO CART |
| 90 | 492264 | BOLT, 3/8" X 1" | 6 | ADD TO CART | |
| 100 | 506141 | SHOCK MOUNT | 3 | ADD TO CART | |
| 110 | 508340 | STUD M8X40 | 6 | ADD TO CART | |
| 120 | EM923343 | WASHER, LOCK 5/16" | 6 | REPLACES P/N 492623 | ADD TO CART |
| 140 | 800739 | FRONT ROLLER SUPPORT PLATE, RS | 1 | PARTS REQUEST | |
|
COMING FRONT ROLLER SUPPORT PLATE, RS
800739 · qty on machine: 1 | |||||
| 150 | EM963692 | BOLT, 1/2"UNCX1-1/2" | 4 | REPLACES P/N 492394 | ADD TO CART |
| 160 | 802783 | SUPPORT, LEFT REAR | 1 | PARTS REQUEST | |
|
COMING SUPPORT, LEFT REAR
802783 · qty on machine: 1 | |||||
| 170 | 802408 | HEX HEAD BOLT 1/4" NC X 1-1/4": G8 | 4 | ADD TO CART | |
| 180 | 506220 | PUMP, HYDRAULIC | 1 | ADD TO CART | |
| 210 | EM923343 | WASHER, LOCK 5/16" | 4 | REPLACES P/N 492623 | ADD TO CART |
| 220 | 492363 | BOLT, 5/16" DIA. NC X 3/4" G5 | 4 | ADD TO CART | |
| 230 | 3019092 | WASHER 3/8" | 6 | REPLACES P/N 508346 | ADD TO CART |
| 240 | EM963610 | CAP SCREW | 6 | REPLACES P/N 492375 | ADD TO CART |
| 250 | 513285 | HOUSING BEARING RIGHT | 1 | ADD TO CART | |
| 280 | 801222 | SHIM | 2 | ADD TO CART | |
| 290 | 492254 | BOLT, 1/4" NC X 3/4" G8 | 8 | PARTS REQUEST | |
|
COMING BOLT, 1/4" NC X 3/4" G8
492254 · qty on machine: 8 | |||||
| 320 | 506144 | SEAL | 1 | ADD TO CART | |
| 370 | 506135 | RING RETAINING | 2 | ADD TO CART | |
| 380 | 513286 | OIL SEAL 65X100X9 | 2 | ADD TO CART | |
| 610 | 492581 | NUT 1/4"-20 NYLON LOCKNUT | 8 | ADD TO CART | |
| 630 | 491382 | ELBOW, 90° | 2 | ADD TO CART | |
| 640 | 519967 | FITTING, STRAIGHT | 2 | ADD TO CART | |
| 650 | 506131 | BEARING | 2 | ADD TO CART | |

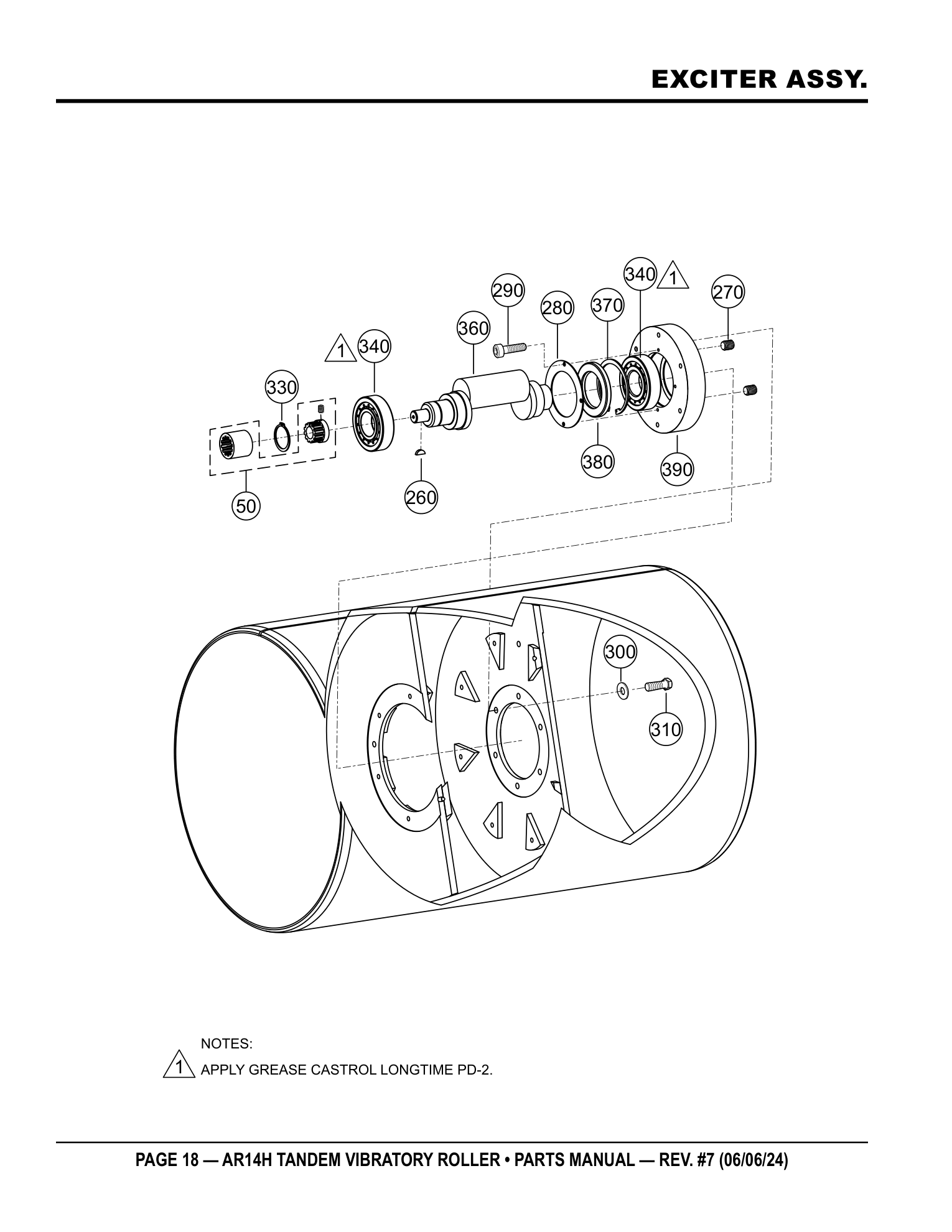

Page 18 — EXCITER ASSY.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 508665 | COUPLER ASSY. | 1 | ADD TO CART | |
| 260 | EM927040 | KEY WOODRUFF | 1 | REPLACES P/N 506250 | ADD TO CART |
| 270 | 492467 | SCREW, ALLEN 5/16" | 4 | ADD TO CART | |
| 280 | 801222 | SHIM | 2 | ADD TO CART | |
| 290 | 492254 | BOLT, 1/4" NC X 3/4" G8 | 8 | PARTS REQUEST | |
|
COMING BOLT, 1/4" NC X 3/4" G8
492254 · qty on machine: 8 | |||||
| 300 | 3019092 | WASHER 3/8" | 6 | REPLACES P/N 508346 | ADD TO CART |
| 310 | EM963610 | CAP SCREW | 6 | REPLACES P/N 492375 | ADD TO CART |
| 330 | 490964 | RING, RETAINING | 1 | ADD TO CART | |
| 340 | 506131 | BEARING | 2 | ADD TO CART | |
| 360 | 803052 | SHAFT, VIBRATORY | 1 | ADD TO CART | |
| 370 | 506135 | RING, RETAINING | 2 | ADD TO CART | |
| 380 | 513286 | OIL, SEAL 65X100X9 | 2 | ADD TO CART | |
| 390 | 513287 | HOUSING BEARING LEFT | 1 | ADD TO CART | |

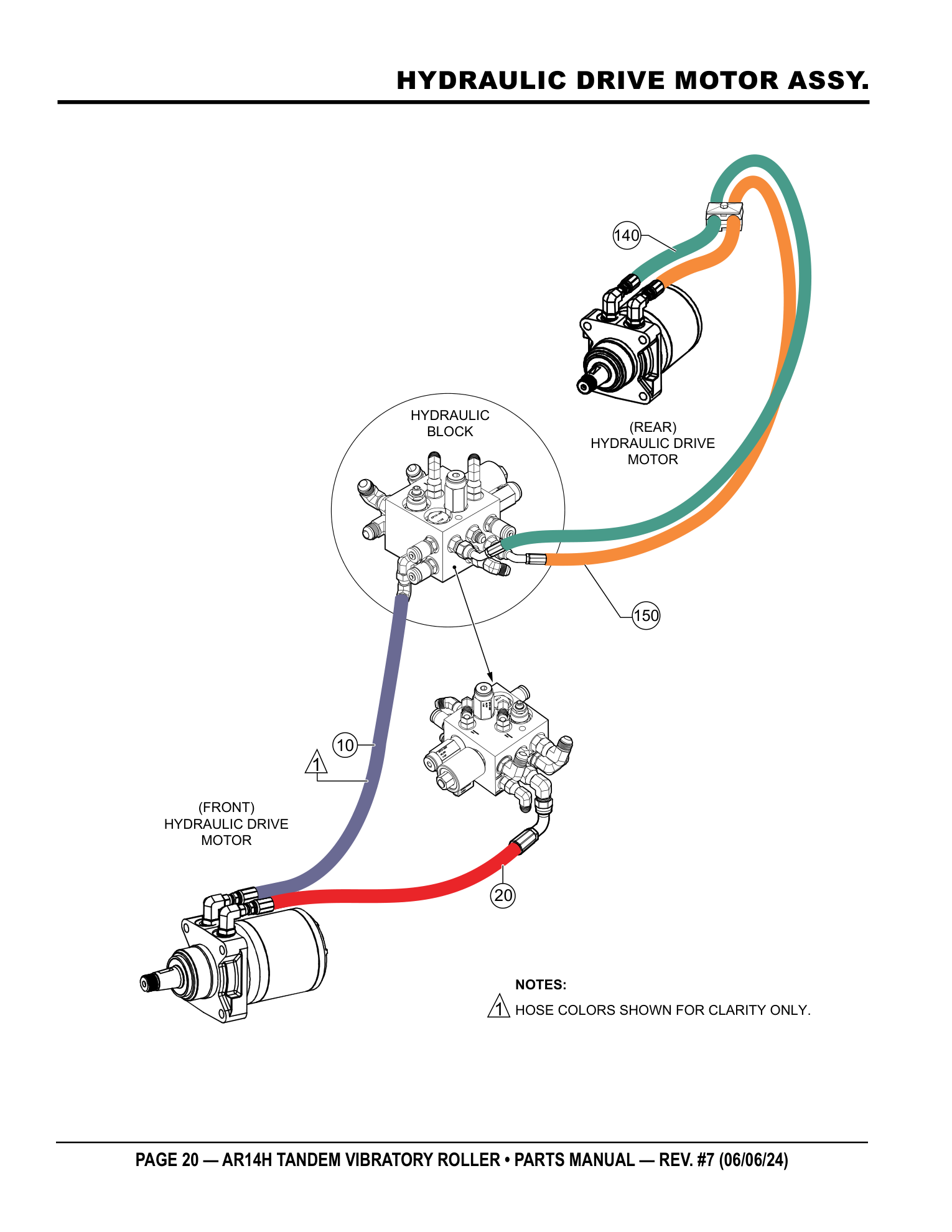

Page 20 — HYDRAULIC DRIVE MOTOR ASSY.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 802917 | HOSE, HYDRAULIC - DRIVE MOTOR | 1 | ADD TO CART | |
| 20 | 802918 | HOSE, HYDRAULIC - DRIVE MOTOR | 1 | ADD TO CART | |
| 140 | 802930 | HOSE, HYDRAULIC - MANIFOLD | 1 | ADD TO CART | |
| 150 | 802931 | HOSE, HYDRAULIC - MANIFOLD | 1 | ADD TO CART | |
Page 22 — HYD. CYL. STEERING ASSY. (S/N 1L0400 AND BELOW)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 160 | 802932 | HOSE, HYDRAULIC - MANIFOLD | 1 | ADD TO CART | |
| 170 | 802933 | HOSE, HYDRAULIC - MANIFOLD | 1 | ADD TO CART | |
| 180 | 802934 | HOSE, HYDRAULIC - STEERING PUMP | 1 | ADD TO CART | |
| 190 | 802935 | HOSE, HYDRAULIC - STEERING PUMP | 1 | ADD TO CART | |
Page 24 — HYD. CYL. STEERING ASSY. (S/N 1L0401 AND ABOVE)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 160 | 802932 | HOSE, HYDRAULIC - MANIFOLD | 1 | ADD TO CART | |
| 170 | 802933 | HOSE, HYDRAULIC - MANIFOLD | 1 | ADD TO CART | |
| 180 | 802934 | HOSE, HYDRAULIC - STEERING PUMP | 1 | ADD TO CART | |
| 190 | 802935 | HOSE, HYDRAULIC - STEERING PUMP | 1 | ADD TO CART | |

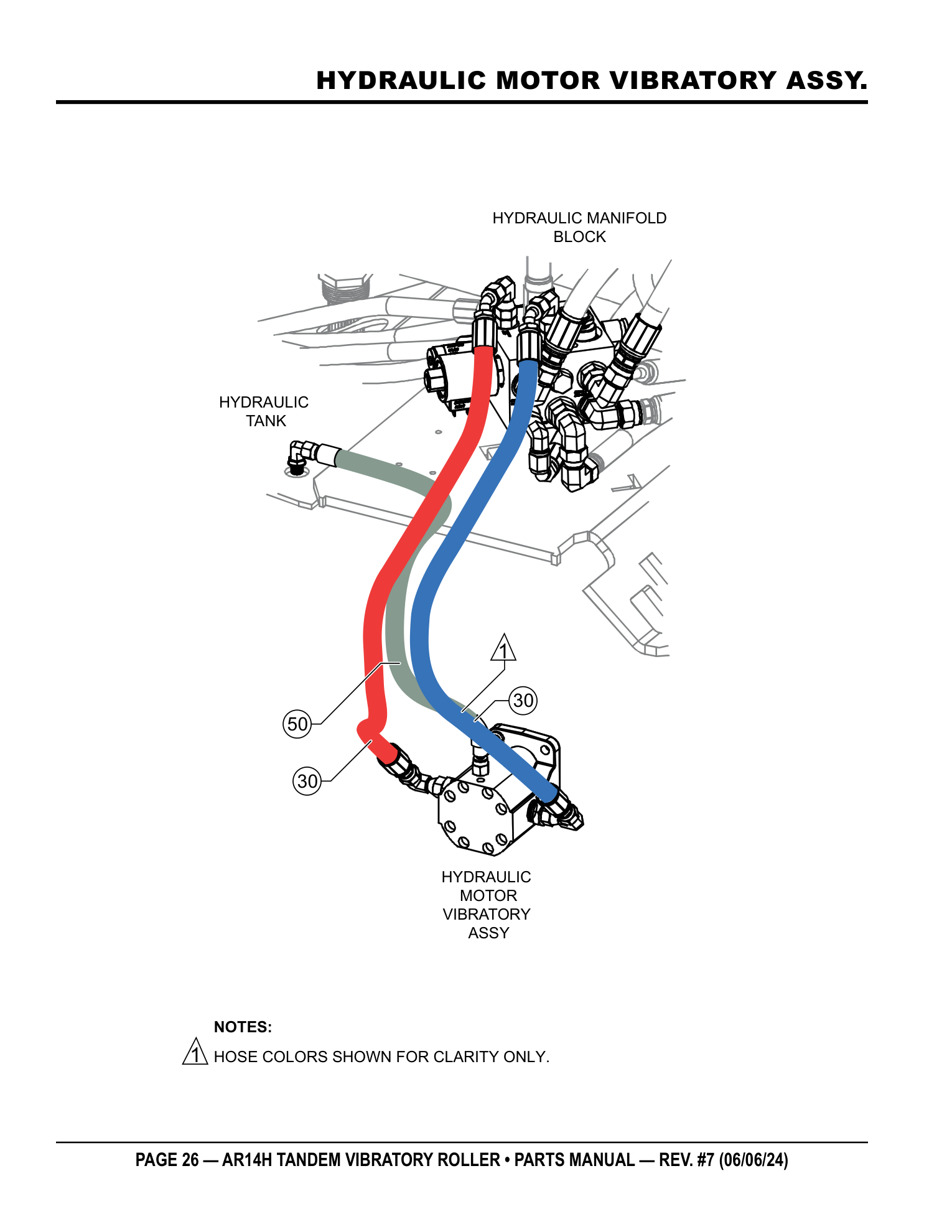

Page 26 — HYDRAULIC MOTOR VIBRATORY ASSY.
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 802919 | HOSE, HYDRAULIC - VIBRATION MOTOR | 2 | ADD TO CART | |
| 50 | 802921 | HOSE, HYDRAULIC - VIBRATION MOTOR | 1 | ADD TO CART | |
Page 28 — HYDRAULIC PUMP/FILTER ASSY.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 70 | 802923 | HOSE, HYDRAULIC, AXEL PUMP | 1 | ADD TO CART | |
| 80 | 802924 | HOSE, HYDRAULIC, RETURN MANIFOLD | 1 | ADD TO CART | |
| 90 | 802925 | HOSE, HYDRAULIC, RETURN MANIFOLD | 1 | ADD TO CART | |
| 200 | 802937 | HOSE, SUCTION | 1 | ADD TO CART | |
Page 30 — HYDRAULIC BLOCK/PUMP/FILTER ASSY.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 60 | 802922 | HOSE, ENGINE OIL DRAIN | 1 | ADD TO CART | |
| 100 | 802926 | HOSE, HYDRAULIC - RETURN FILTER | 1 | ADD TO CART | |
| 110 | 802927 | HOSE, HYDRAULIC - AXEL PUMP | 1 | ADD TO CART | |
| 120 | 802928 | HOSE, HYDRAUIC - GEAR PUMP | 1 | ADD TO CART | |
| 130 | 802929 | HOSE, HYDRAULIC, AXLE PUMP | 1 | ADD TO CART | |

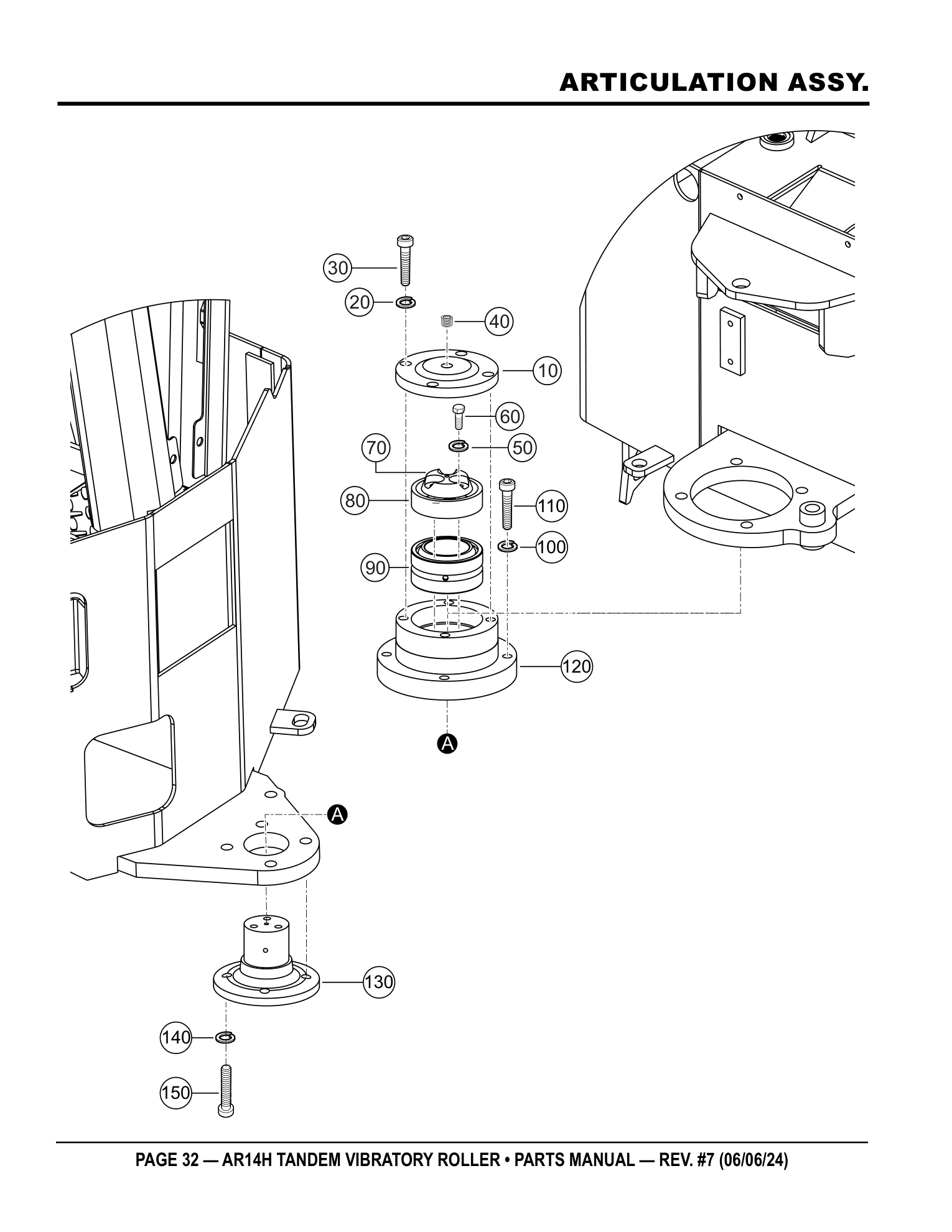

Page 32 — ARTICULATION ASSY.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 513299 | COVER, ARTICULATING JOINT | 1 | ADD TO CART | |
| 20 | 6109180 | WASHER, LOCK 1/2" DIA | 4 | REPLACES P/N 492626 | ADD TO CART |
| 30 | 492276 | BOLT 1/2" NC X 1-1/2" | 4 | ADD TO CART | |
| 40 | 508880 | PLUG, ALLEN HEAD, 1/8" NPT | 1 | ADD TO CART | |
| 50 | 0166A | WASHER, LOCK 3/8" DIA | 3 | REPLACES P/N 492624 | ADD TO CART |
| 60 | EM963610 | BOLT, 3/8" | 3 | REPLACES P/N 492376 | ADD TO CART |
| 70 | 513300 | RETAINER PLATE | 1 | ADD TO CART | |
| 80 | 513301 | SPACER | 1 | ADD TO CART | |
| 90 | 506164 | BEARING | 1 | ADD TO CART | |
| 100 | 6109180 | WASHER LOCK 1/2" DIA | 4 | REPLACES P/N 492626 | ADD TO CART |
| 110 | 510717 | BOLT 1/2 X 1-3/4" | 4 | ADD TO CART | |
| 120 | 513302 | BASE, ARTICULATING JOINT | 1 | ADD TO CART | |
| 130 | 513303 | JOINT ARTICULATING | 1 | ADD TO CART | |
| 140 | 6109180 | WASHER, LOCK 1/2" DIA | 4 | REPLACES P/N 492626 | ADD TO CART |
| 150 | 492276 | BOLT 1/2" NC X 1-1/2" G8.8 G | 4 | ADD TO CART | |

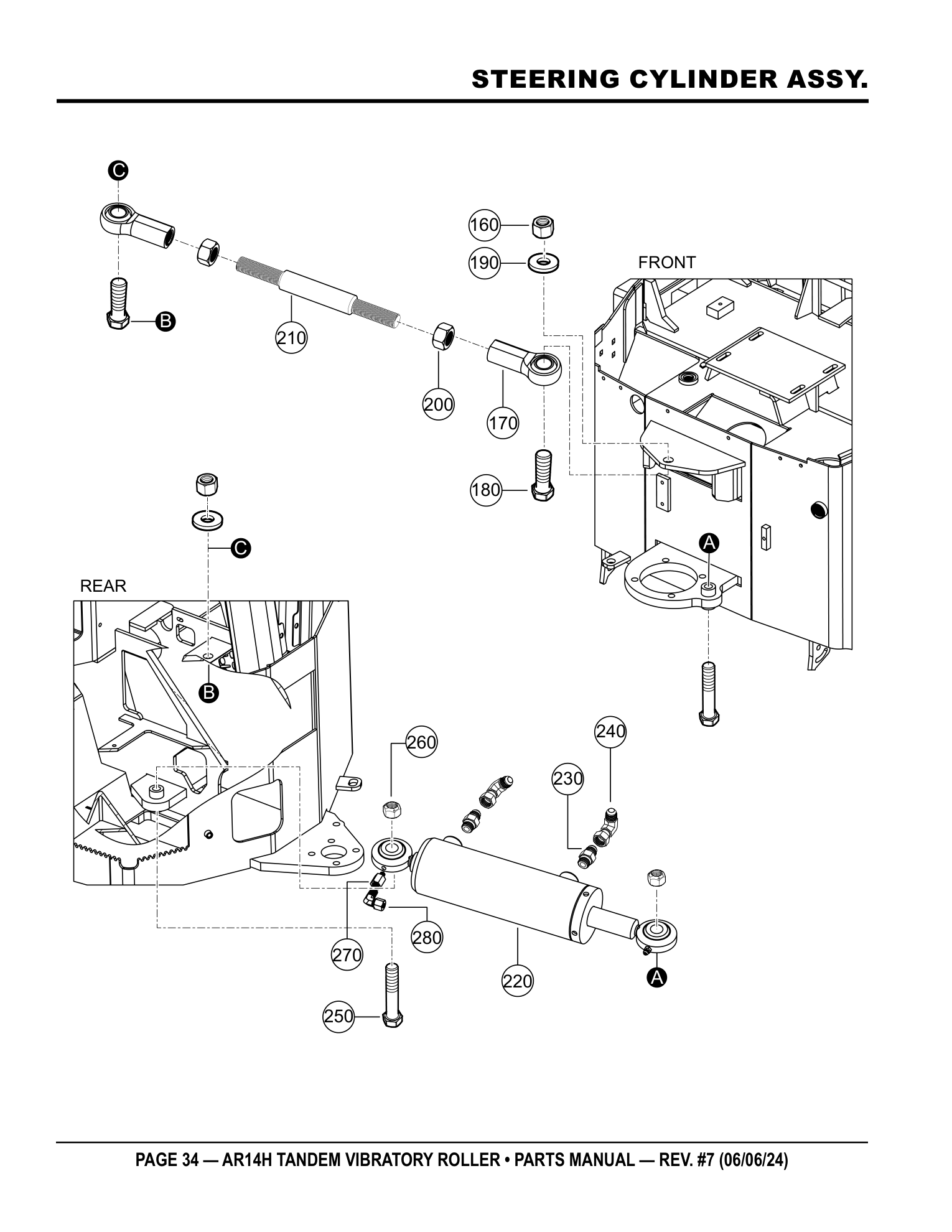

Page 34 — STEERING CYLINDER ASSY.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 160 | 514201 | NUT, 3/4" NC, G5 | 2 | ADD TO CART | |
| 170 | 513294 | ROD END | 2 | ADD TO CART | |
| 180 | EM401489 | MOUNTING BOLT | 2 | REPLACES P/N 514347 | ADD TO CART |
| 190 | 507444 | SPACER | 2 | ADD TO CART | |
| 200 | EM968266 | NUT 3/4" | 2 | REPLACES P/N 513295 | ADD TO CART |
| 210 | 802624 | ROD, STABLIZER | 1 | ADD TO CART | |
| 220 | 802375 | CYLINDER, HYDRAULIC | 1 | ADD TO CART | |
| 230 | 511808 | ADAPTER STRAIGHT | 2 | ADD TO CART | |
| 240 | 519967 | ELBOW, 90 | 2 | ADD TO CART | |
| 250 | 492413 | BOLT 5/8" UNC X 3-1/2" | 2 | ADD TO CART | |
| 260 | 504724 | NUT, 5/8" NC G5 | 2 | ADD TO CART | |
| 270 | 802964 | ADAPTER, STRAIGHT | 1 | ADD TO CART | |
| 280 | EM505491 | ELBOW 45 DEG 1/8" | 1 | REPLACES P/N 505491 | ADD TO CART |

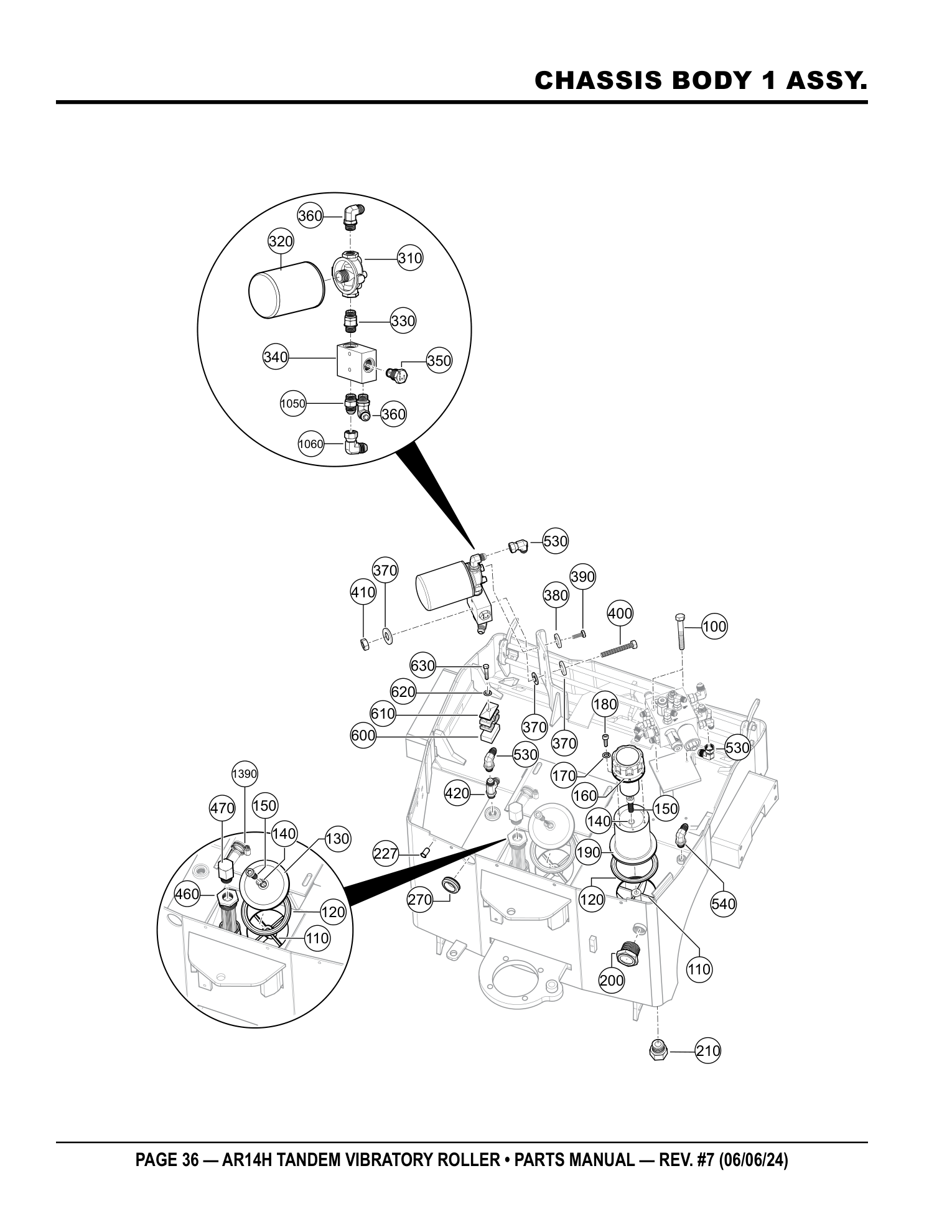

Page 36 — CHASSIS BODY 1 ASSY.
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 100 | 503114 | SCREW, HHC 5/16-18 X 3-1/2 | 2 | ADD TO CART | |
| 110 | 520461 | BREATHER | 2 | ADD TO CART | |
| 120 | 801791 | SEAL | 2 | ADD TO CART | |
| 130 | 520460 | COVER | 1 | ADD TO CART | |
| 140 | 520343 | O-RING | 2 | ADD TO CART | |
| 150 | 510717 | BOLT 1/2 X 1-3/4" | 2 | ADD TO CART | |
| 160 | 98263 | CAP, HYDRAULIC SUCTION | 1 | PARTS REQUEST | |
|
COMING CAP, HYDRAULIC SUCTION
98263 · qty on machine: 1 | |||||
| 170 | 3103160 | WASHER, LOCK 3/16" | 6 | REPLACES P/N 492621 | ADD TO CART |
| 180 | 492267 | BOLT, ALLEN 10 X 32 X 26" | 6 | ADD TO CART | |
| 190 | 800792 | EXTENSION ADAPTER | 1 | ADD TO CART | |
| 200 | 490181 | SIGHT GLASS | 1 | ADD TO CART | |
| 210 | 506205 | PLUG | 1 | ADD TO CART | |
| 227 | 100602 | NUT, INSERT | 6 | ADD TO CART | |
| 270 | 13212 | GROMMET, 1-1/4 ID | 1 | ADD TO CART | |
| 310 | 508664 | FILTER HEAD | 1 | ADD TO CART | |
| 320 | 508667 | ELEMENT OIL | 1 | ADD TO CART | |
| 330 | 506204 | FITTING | 1 | ADD TO CART | |
| 340 | 802518 | MANIFOLD BLOCK, OIL RETURN | 1 | ADD TO CART | |
| 350 | 508670 | VALVE, CHECK | 1 | ADD TO CART | |
| 360 | 25507 | MOTOR PLATE/SHAFT ASSY. | 2 | PARTS REQUEST | |
|
COMING MOTOR PLATE/SHAFT ASSY.
25507 · qty on machine: 2 | |||||
| 370 | 492595 | WASHER, FLAT 3/16" | 6 | ADD TO CART | |
| 380 | 2101402 | WASHER, LOCK 1/4" DIA | 2 | REPLACES P/N 492622 | ADD TO CART |
| 390 | 492356 | BOLT 1/4" X 3/4" | 2 | ADD TO CART | |
| 400 | 2508 | SCREW, HHC 1/4-20X2-1/4 | 2 | REPLACES P/N 512414 | ADD TO CART |
| 410 | 492581 | NUT 1/4"-20 NYLON LOCKNUT | 2 | ADD TO CART | |
| 420 | 802715 | ADAPTER T FITTING | 1 | PARTS REQUEST | |
|
COMING ADAPTER T FITTING
802715 · qty on machine: 1 | |||||
| 460 | 506221 | FILTER, HYDRAULIC | 1 | ADD TO CART | |
| 470 | 802725 | ADAPTER FITTING | 1 | PARTS REQUEST | |
|
COMING ADAPTER FITTING
802725 · qty on machine: 1 | |||||
| 530 | 506195 | FITTING | 2 | ADD TO CART | |
| 540 | 25429 | FLAP, FRONT WATER SHIELD | 1 | ADD TO CART | |
| 600 | 505976 | CLAMP | 2 | SET OF TWO PIECES | ADD TO CART |
| 610 | 506185 | PLATE, CORNER | 1 | ADD TO CART | |
| 620 | EM923343 | WASHER, LOCK 5/16" | 1 | REPLACES P/N 492623 | ADD TO CART |
| 630 | 2105162 | SCREW, HHC | 1 | REPLACES P/N 492367 | ADD TO CART |
| 1050 | 506193 | FITTING | 1 | ADD TO CART | |
| 1060 | 506195 | FITTING | 1 | ADD TO CART | |
| 1390 | 506207 | CLAMP, HOSE | 2 | ADD TO CART | |

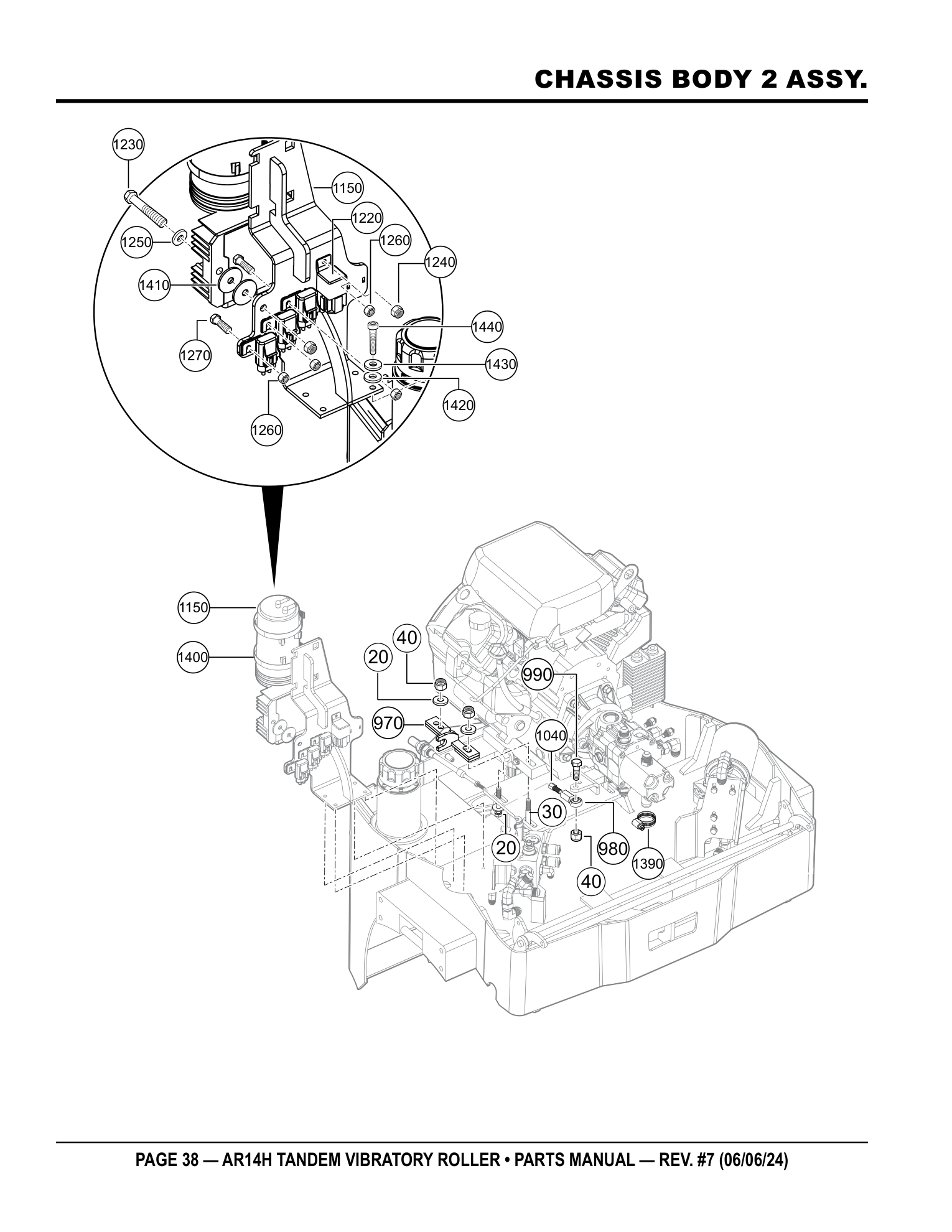

Page 38 — CHASSIS BODY 2 ASSY.
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 3019092 | WASHER, FLAT 3/8" | 8 | REPLACES P/N 492598 | ADD TO CART |
| 30 | EM217 | BOLT | 2 | REPLACES P/N 492381 | ADD TO CART |
| 40 | EM969013 | NUT 3/8" NC INS. NYLON G8 | 5 | REPLACES P/N 492583 | ADD TO CART |
| 970 | 802991 | SUPPORT, CABLE | 1 | PARTS REQUEST | |
|
COMING SUPPORT, CABLE
802991 · qty on machine: 1 | |||||
| 980 | EM959080 | ROD, END | 1 | REPLACES P/N 959080 | ADD TO CART |
| 990 | EM963610 | BOLT, 3/8" | 1 | REPLACES P/N 492376 | ADD TO CART |
| 1040 | 520519 | EXTENSION ROD | 1 | ADD TO CART | |
| 1150 | 23506 | CANISTER, CARBON 800CC | 1 | NO LONGER AVAILABLE | |
|
COMING CANISTER, CARBON 800CC
23506 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 1220 | 802378 | RELAY | 1 | ADD TO CART | |
| 1230 | 2105162 | SCREW, HHC | 2 | REPLACES P/N 492367 | ADD TO CART |
| 1240 | 2105164 | NUT, NYLON 5/16-18 | 2 | REPLACES P/N 492582 | ADD TO CART |
| 1250 | 509161 | WASHER 5/8" | 2 | NO LONGER AVAILABLE | |
|
COMING WASHER 5/8"
509161 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 1260 | 503119 | NUT LOCK | 4 | ADD TO CART | |
| 1270 | EM503115 | SCREW | 4 | REPLACES P/N 503115 | ADD TO CART |
| 1390 | 506207 | CLAMP, HOSE | 2 | ADD TO CART | |
| 1400 | 493108 | CLAMP | 2 | ADD TO CART | |
| 1410 | 100536 | WASHER, BRAKE | 4 | ADD TO CART | |
| 1420 | 492595 | WASHER, FLAT 3/16 | 4 | ADD TO CART | |
| 1430 | 2101402 | WASHER, LOCK 1/4" DIA | 4 | REPLACES P/N 492622 | ADD TO CART |
| 1440 | 492256 | SCREW, ALLEN HEAD 1/4X1" 20-NC | 4 | ADD TO CART | |

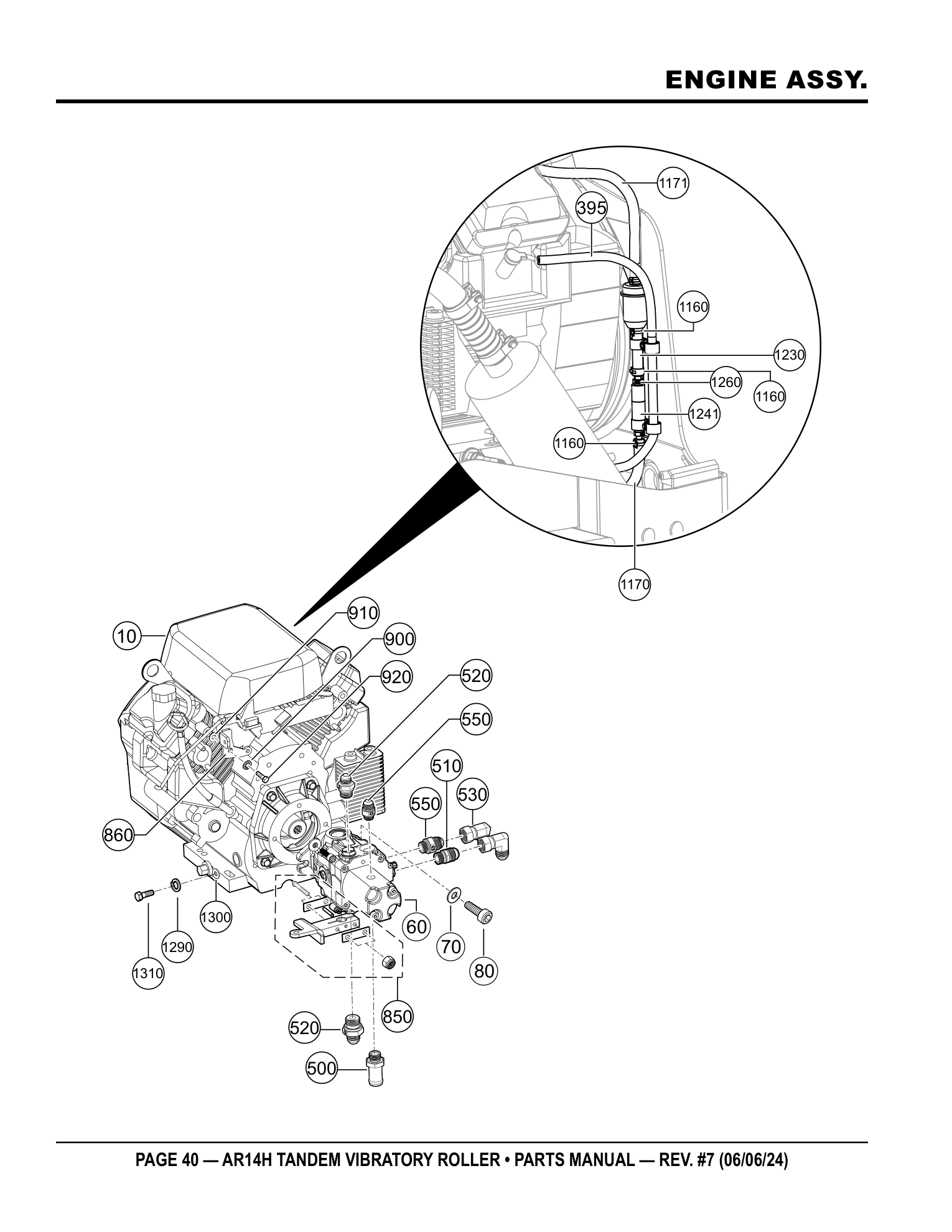

Page 40 — ENGINE ASSY.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 802003 | ENGINE, HONDA 20HP-SPLINE SHAFT | 1 | ADD TO CART | |
| 60 | 801989 | HYDRAULIC PUMP | 1 | ADD TO CART | |
| 70 | 3019092 | WASHER, 3/8" | 2 | REPLACES P/N 508346 | ADD TO CART |
| 80 | EM175 | SCREW, 3/8" NC X 1-1/4" G5 | 2 | ADD TO CART | |
| 395 | 800417 | HOSE, 75" | 7 | 1 PC=1 FT. | ADD TO CART |
| 500 | 802726 | ADAPTER FITTING | 1 | PARTS REQUEST | |
|
COMING ADAPTER FITTING
802726 · qty on machine: 1 | |||||
| 510 | 802717 | ADAPTER FITTING | 1 | ADD TO CART | |
| 520 | 518821 | ADAPTER FITTING | 2 | ADD TO CART | |
| 530 | 506195 | FITTING | 5 | ADD TO CART | |
| 550 | 802718 | ADAPTER FITTING | 2 | ADD TO CART | |
| 850 | 802986 | LEVER, HYDRAULIC PUMP | 1 | ADD TO CART | |
| 860 | 803121 | BRACKET, THROTTLE | 1 | ADD TO CART | |
| 900 | EM923343 | WASHER, LOCK 5/16" | 1 | REPLACES P/N 492623 | ADD TO CART |
| 910 | EM923057 | WASHER, 1/4" | 1 | REPLACES P/N 492596 | ADD TO CART |
| 920 | 011208025 | BOLT, 8X25T | 1 | REPLACES P/N 508342 | ADD TO CART |
| 1160 | 800416 | REDUCER, HOSE | 1 | PARTS REQUEST | |
|
COMING REDUCER, HOSE
800416 · qty on machine: 1 | |||||
| 1171 | 520611 | HOSE, 15" | 2 | 1 PC=1 FT. | ADD TO CART |
| 1230 | 2105162 | SCREW, HHC | 2 | REPLACES P/N 492367 | ADD TO CART |
| 1240 | 2105164 | NUT, NYLON 5/16-18 | 2 | REPLACES P/N 492582 | ADD TO CART |
| 1241 | 520117 | CHECK VALVE, FUEL | 1 | ADD TO CART | |
| 1260 | 503119 | NUT LOCK | 4 | ADD TO CART | |
| 1290 | 2101402 | WASHER, LOCK 1/4" DIA | 1 | REPLACES P/N 492622 | ADD TO CART |
| 1300 | 492595 | WASHER, FLAT 3/16 FS1 | 1 | ADD TO CART | |
| 1310 | EM506599 | BOLT, HEX 6MM X | 15 | 1 REPLACES P/N 506599 | NO LONGER AVAILABLE |
|
COMING BOLT, HEX 6MM X
EM506599 · qty on machine: 15 1 REPLACES P/N 506599 NO LONGER AVAILABLE
| |||||

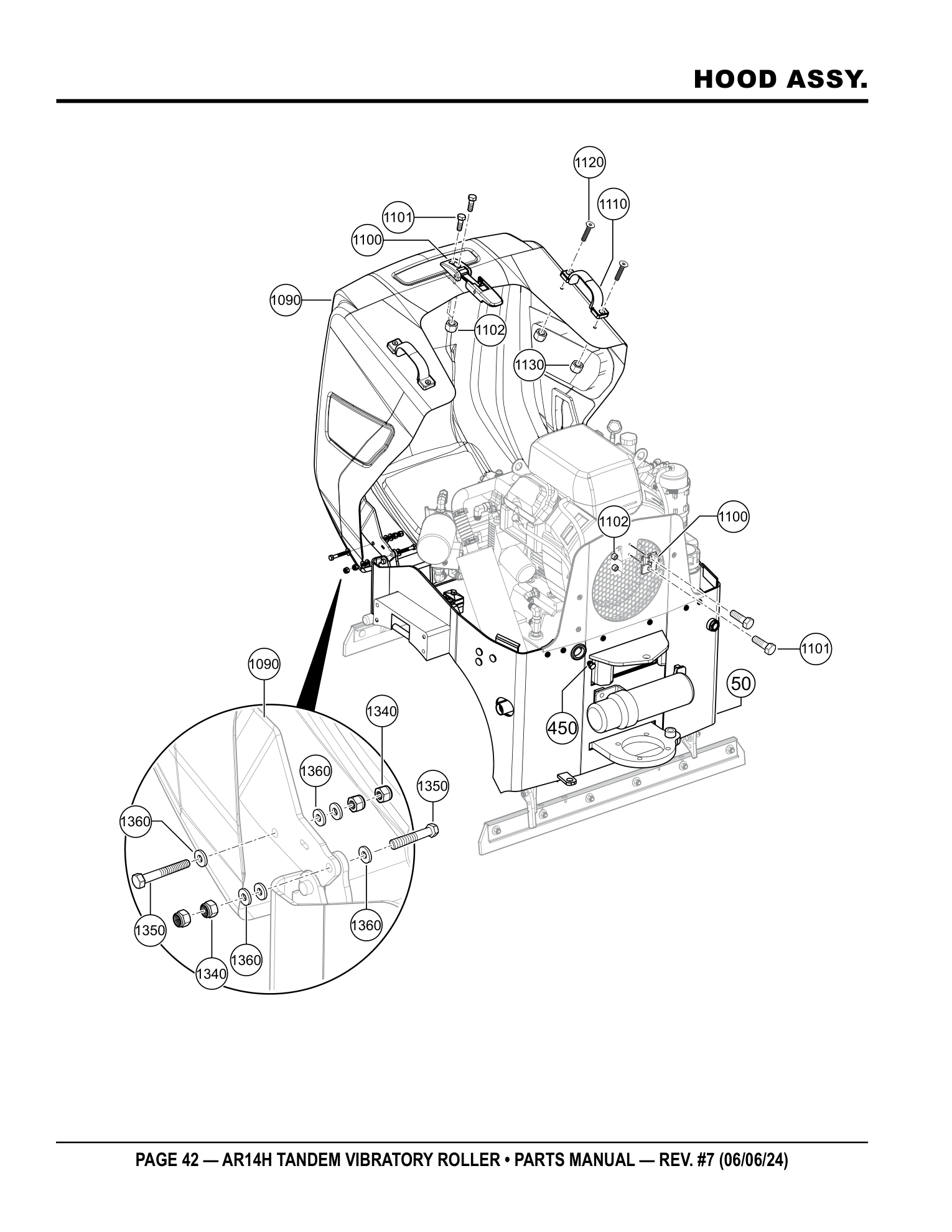

Page 42 — HOOD ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 800785 | MAIN FRAME, FRONT | 1 | ADD TO CART | |
| 450 | 513619 | FITTING | 1 | ADD TO CART | |
| 1090 | 803130 | COVER, ENGINE | 1 | ADD TO CART | |
| 1100 | 803930 | LATCH, RUBBER | 1 | ADD TO CART | |
| 1101 | EM503115 | SCREW | 4 | REPLACES P/N 503115 | ADD TO CART |
| 1102 | 503119 | NUT, LOCK | 4 | ADD TO CART | |
| 1110 | 802751 | HANDLE, COVER | 2 | ADD TO CART | |
| 1120 | 513312 | BOLT, 1/4" X 1" | 4 | ADD TO CART | |
| 1130 | 492581 | NUT, 1/4"-20 NYLON LOCKNUT | 4 | ADD TO CART | |
| 1340 | 2105164 | NUT, NYLON 5/16-18 | 8 | REPLACES P/N 492582 | ADD TO CART |
| 1350 | 2105162 | SCREW, HHC | 4 | REPLACES P/N 492367 | ADD TO CART |
| 1360 | 509161 | WASHER, 5/16" | 12 | NO LONGER AVAILABLE | |
|
COMING WASHER, 5/16"
509161 · qty on machine: 12 NO LONGER AVAILABLE
| |||||

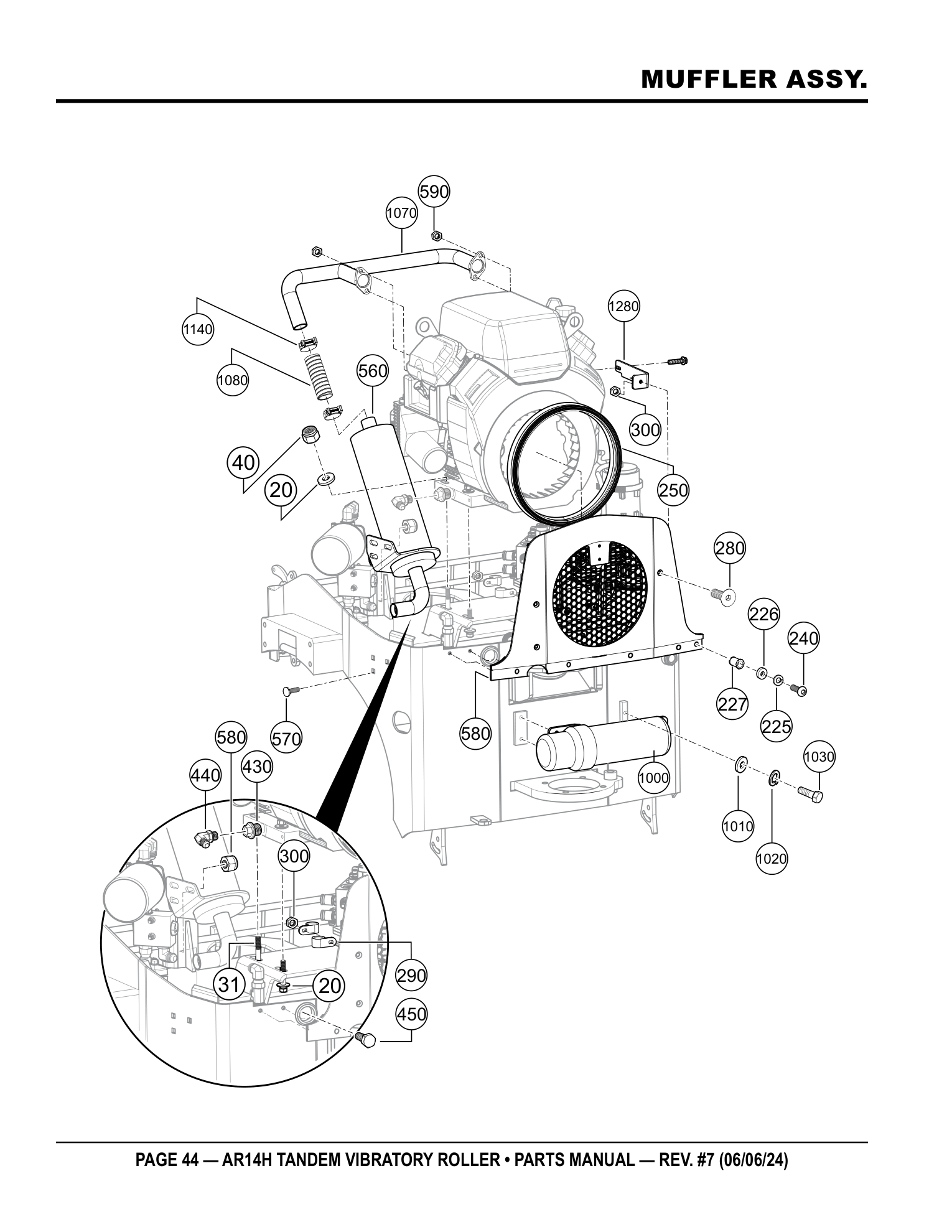

Page 44 — MUFFLER ASSY.
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 3019092 | WASHER, FLAT 3/8" | 8 | REPLACES P/N 492598 | ADD TO CART |
| 31 | 492380 | SCREW, HHC 3/8" X NC X 2 1/4" G5 | 2 | PARTS REQUEST | |
|
COMING SCREW, HHC 3/8" X NC X 2 1/4" G5
492380 · qty on machine: 2 | |||||
| 40 | EM969013 | NUT 3/8" NC INS. NYLON G8 | 5 | REPLACES P/N 49258 | ADD TO CART |
| 225 | 2101402 | WASHER, LOCK 1/4" DIA | 6 | REPLACES P/N 492622 | ADD TO CART |
| 226 | 492595 | WASHER, FLAT 3/16" | 6 | ADD TO CART | |
| 227 | 100602 | NUT, INSERT | 6 | ADD TO CART | |
| 240 | 100443 | SCREW, M6X20 | 6 | ADD TO CART | |
| 250 | 520230 | SEAL, COVER | 1 | ADD TO CART | |
| 280 | 513314 | SCREW HD 1/4" X 3/4" | 3 | ADD TO CART | |
| 290 | 511807 | STRAP, NYLON 5/8 | 3 | ADD TO CART | |
| 300 | 492581 | NUT, 1/4"-20 NYLON LOCKNUT | 3 | ADD TO CART | |
| 430 | 520342 | ADAPTER FITTING, ENGINE OIL DRAIN | 1 | PARTS REQUEST | |
|
COMING ADAPTER FITTING, ENGINE OIL DRAIN
520342 · qty on machine: 1 | |||||
| 440 | 506196 | ELBOW | 1 | ADD TO CART | |
| 450 | 513619 | FITTING | 1 | ADD TO CART | |
| 560 | 802849 | MUFFLER, ENGINE | 1 | ADD TO CART | |
| 570 | 513452 | BOLT 3/8" X 1-1/4" G5 | 3 | ADD TO CART | |
| 580 | EM969013 | NUT 3/8" NC INS. NYLON G8 | 3 | REPLACES P/N 492583 | ADD TO CART |
| 590 | 020108060 | NUT M8 | 4 | REPLACES P/N 508341 | ADD TO CART |
| 1000 | 23297 | HOLDER, MANUAL | 1 | ADD TO CART | |
| 1010 | 508344 | WASHER, 5/16" | 3 | ADD TO CART | |
| 1020 | EM923343 | WASHER, LOCK 5/16" | 3 | REPLACES P/N 492623 | ADD TO CART |
| 1030 | 492362 | NUT 5/16" X 5/8" | 3 | ADD TO CART | |
| 1070 | 803383 | EXHAUST PIPE, ENGINE | 1 | ADD TO CART | |
| 1080 | 516774 | TUBE, FLEX SS | 1 | REPLACES P/N 514711 | ADD TO CART |
| 1140 | 803398 | CLAMP | 2 | ADD TO CART | |
| 1280 | 803425 | BRACKET, ENGINE | 1 | PARTS REQUEST | |
|
COMING BRACKET, ENGINE
803425 · qty on machine: 1 | |||||

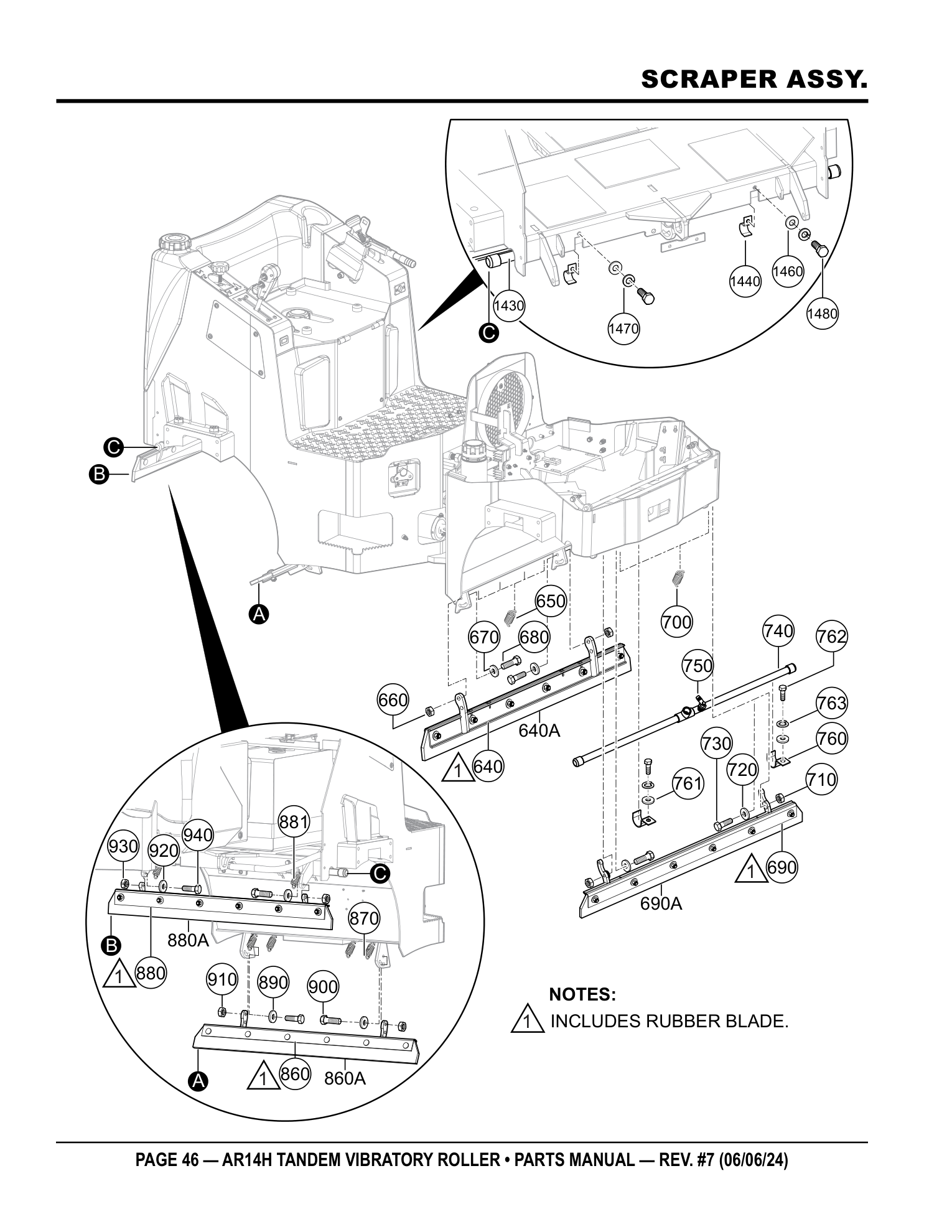

Page 46 — SCRAPER ASSY.
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 640 | 803081 | SCRAPER/BLADE INTERNAL ASSY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 640A# | 802626 | RUBBER BLADE | 1 | ADD TO CART | |
| 650 | 802756 | SPRING | 4 | ADD TO CART | |
| 660 | EM969013 | NUT 3/8" NC INS. NYLON G8 | 2 | REPLACES P/N 492583 | ADD TO CART |
| 670 | 504679 | WASHER, FLAT 3/8 | 2 | ADD TO CART | |
| 680 | EM963057 | BOLT, 3/8" DIA | 2 | REPLACES P/N 492313 | ADD TO CART |
| 690 | 802621 | SCRAPER BLADE/RUBBER EXT. FRONT | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 690A$ | 802626 | RUBBER BLADE | 1 | ADD TO CART | |
| 700 | 802756 | SPRING | 2 | ADD TO CART | |
| 710 | EM969013 | NUT 3/8" NC INS. NYLON G8 | 2 | REPLACES P/N 492583 | ADD TO CART |
| 720 | 504679 | WASHER, FLAT 3/8 | 4 | ADD TO CART | |
| 730 | 492378 | BOLT, HHCS G5 | 2 | ADD TO CART | |
| 740 | 803073 | SPRAY BAR | 1 | ADD TO CART | |
| 750 | 506071 | ELBOW PVC | 1 | ADD TO CART | |
| 760 | 505389 | CLAMP | 2 | ADD TO CART | |
| 761 | EM923057 | WASHER, 1/4" | 2 | REPLACES P/N 492596 | ADD TO CART |
| 762 | 492356 | BOLT, 1/4"X3/4" | 2 | ADD TO CART | |
| 763 | 2101402 | WASHER, LOCK 1/4" DIA | 2 | REPLACES P/N 492622 | ADD TO CART |
| 860 | 803081 | SCRAPER/BLADE INTERNAL ASSY | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 860A% | 802626 | RUBBER BLADE | 1 | ADD TO CART | |
| 870 | 802756 | SPRING | 4 | ADD TO CART | |
| 880 | 803078 | SCRAPER BLADE/RUBBER REAR EXT | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
| 880A@ | 802626 | RUBBER BLADE | 1 | ADD TO CART | |
| 881 | 802756 | SPRING | 1 | ADD TO CART | |
| 890 | 3019092 | WASHER, FLAT 3/8" | 2 | REPLACES P/N 506488 | ADD TO CART |
| 900 | EM963057 | HHCS, 3/8" X 1-1/2" | 2 | REPLACES P/N 492313 | ADD TO CART |
| 910 | EM969013 | NUT, NYLOK | 2 | REPLACES P/N 492583 | ADD TO CART |
| 920 | 3019092 | WASHER, FLAT 3/8" | 2 | REPLACES P/N 506488 | ADD TO CART |
| 930 | EM969013 | NUT, NYLOK | 2 | REPLACES P/N 492583 | ADD TO CART |
| 940 | EM963057 | HHCS, 3/8" X 1-1/2" | 2 | REPLACES P/N 492313 | ADD TO CART |
| 1430 | 803073 | SPRAY BAR | 1 | ADD TO CART | |
| 1440 | 505389 | CLAMP | 2 | ADD TO CART | |
| 1460 | 508344 | WASHER, FLAT 5/16" | 2 | ADD TO CART | |
| 1470 | EM923343 | WASHER LOCK 5/16" | 2 | REPLACES P/N 492623 | ADD TO CART |
| 1480 | 492363 | BOLT 5/16" DIA. NCX3/4" G5 | 2 | ADD TO CART | |

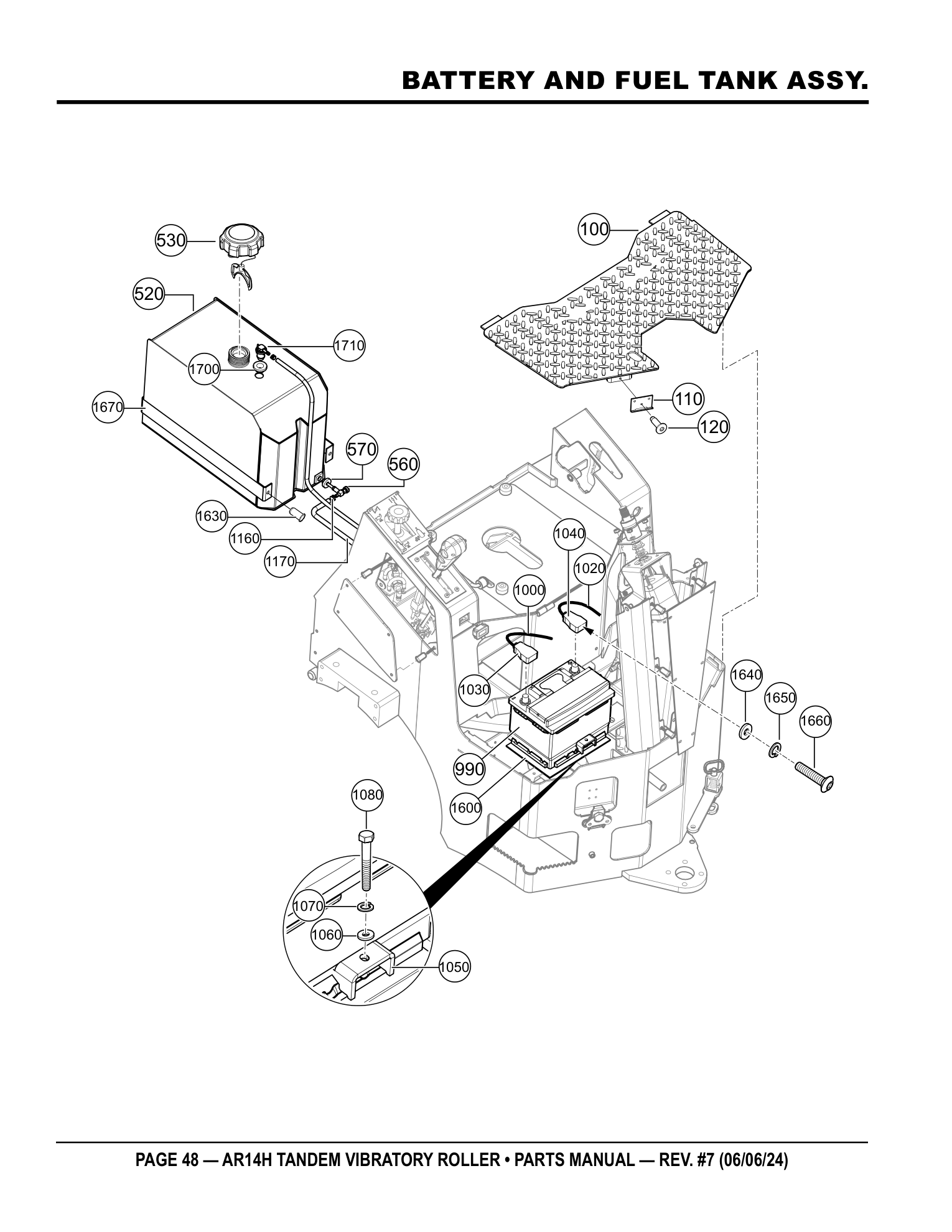

Page 48 — BATTERY AND FUEL TANK ASSY.
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 100 | 802609 | PLATE, FLOOR | 1 | ADD TO CART | |
| 110 | 517296 | KEEPER, LATCH | 1 | PARTS REQUEST | |
|
COMING KEEPER, LATCH
517296 · qty on machine: 1 | |||||
| 120 | 6630207 | RIVET | 7 | PARTS REQUEST | |
|
COMING RIVET
6630207 · qty on machine: 7 | |||||
| 520 | 802614 | FUEL TANK, STEEL | 1 | NLA PRIOR TO APRIL 2022 REFER TO REPLACEMENT RETROFIT KIT | ADD TO CART |
| 520 | 808856 | FUEL TANK, NYLON PLASTIC | 1 | EFFECTIVE S/N 1N0401 APRIL 2022 | ADD TO CART |
| 520 | 522355 | FUEL TANK, PLASTIC, RETROFIT KIT | 1 | ADD TO CART | |
| 530 | 23514 | CAP, FUEL EPA | 1 | ADD TO CART | |
| 560 | 20795 | VALVE, SCREENED DAPCO | 1 | ADD TO CART | |
| 570 | 19633 | BUSHING, RUBBER FUEL DAPCO | 1 | ADD TO CART | |
| 990 | 514391 | BATTERY, 12V, GROUP 42 R | 1 | ADD TO CART | |
| 1000 | 515114 | CABLE, NEGATIVE BATTERY | 1 | ADD TO CART | |
| 1020 | 804251 | CABLE, POSITIVE BATTERY | 1 | ADD TO CART | |
| 1030 | 505624 | BATTERY, TERMINAL COVER | 1 | ADD TO CART | |
| 1040 | 506266 | BATTERY, TERMINAL COVER | 1 | ADD TO CART | |
| 1050 | 804232 | BRACKET, BATTERY HOLD DOWN | 2 | ADD TO CART | |
| 1060 | 492595 | WASHER, FLAT 3/16" | 2 | ADD TO CART | |
| 1070 | 2101402 | WASHER, LOCK 1/4" DIA | 2 | REPLACES P/N 492622 | ADD TO CART |
| 1080 | 512185 | SCREW HHC 1/4-20 X 1-3/4" | 2 | ADD TO CART | |
| 1160 | 802574 | TENSION CLAMP | 5 | ADD TO CART | |
| 1170 | 520611 | HOSE 1/4", FUEL EPA, 40" | 4 | 1 PC=1 FT. | ADD TO CART |
| 1600 | 520177 | BASE, BATTERY | 1 | ADD TO CART | |
| 1630 | 100602 | NUT, INSERT | 2 | ADD TO CART | |
| 1640 | 492595 | WASHER, FLAT 3/16" | 2 | ADD TO CART | |
| 1650 | 2101402 | WASHER, LOCK 1/4" DIA | 2 | REPLACES P/N 492622 | ADD TO CART |
| 1660 | 100443 | SCREW M6X20 | 2 | ADD TO CART | |
| 1670 | 803439 | BRACKET, FUEL TANK | 1 | STEEL FUEL TANK ONLY PRIOR TO APRIL 2022 | ADD TO CART |
| 1670 | 804461 | BRACKET, FUEL TANK | 1 | NYLON PLASTIC TANK ONLY EFFECTIVE S/N 1N0401 APRIL 2022 | ADD TO CART |
| 1700 | 203403 | GROMMET, REMOTE VENT | 1 | ADD TO CART | |
| 1710 | 202772 | VENT, ROV VALVE | 1 | PARTS REQUEST | |
|
COMING VENT, ROV VALVE
202772 · qty on machine: 1 | |||||

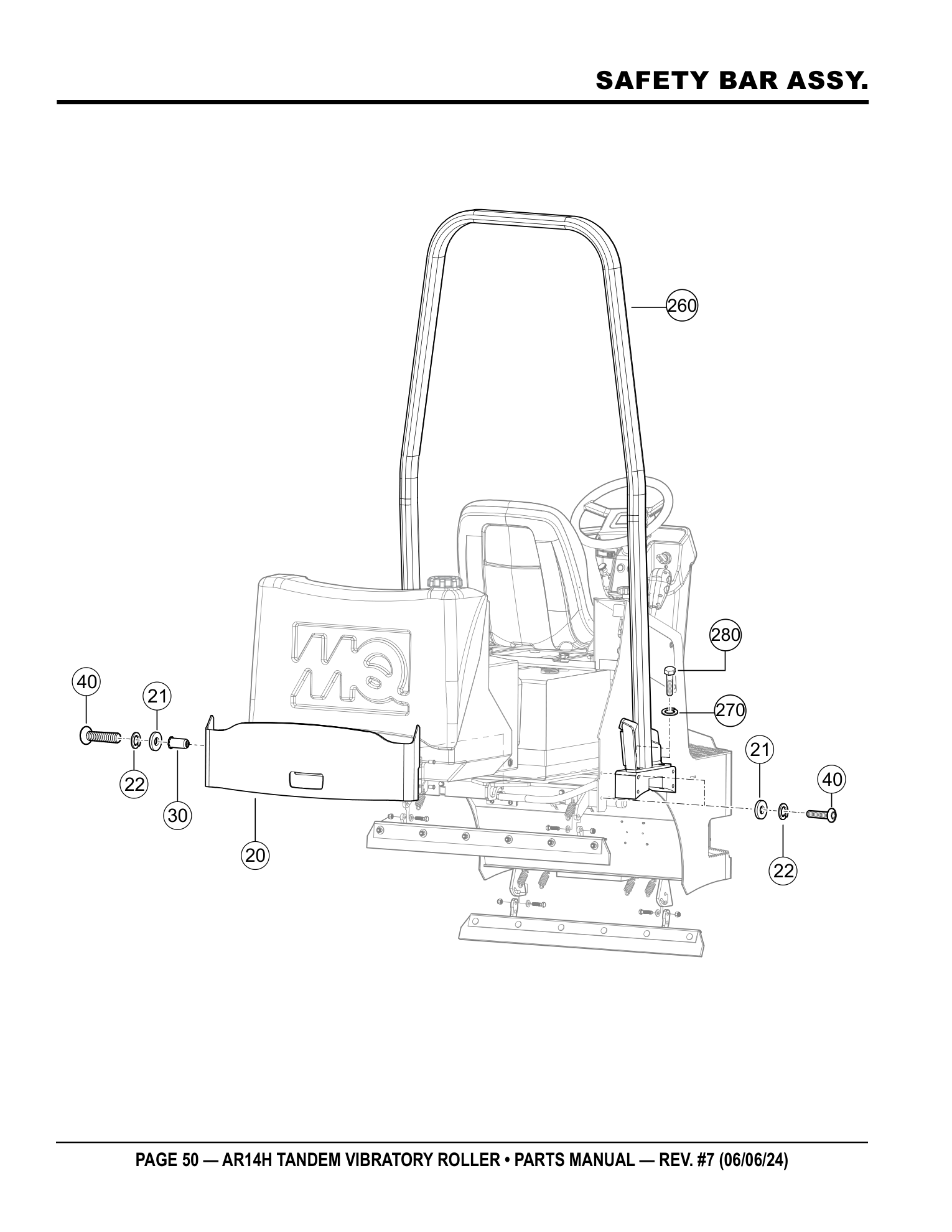

Page 50 — SAFETY BAR ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 802887 | COVER, REAR | 1 | ADD TO CART | |
| 21 | 492595 | WASHER, FLAT 3/16" | 4 | ADD TO CART | |
| 22 | 2101402 | WASHER, LOCK 1/4" DIA | 4 | REPLACES P/N 492622 | ADD TO CART |
| 30 | 100602 | NUT, INSERT | 4 | ADD TO CART | |
| 40 | 100443 | SCREW M6X20 | 4 | ADD TO CART | |
| 260 | 803533 | ROPS | 1 | ADD TO CART | |
| 270 | 492628 | LOCK, WASHER 3/4" | 4 | ADD TO CART | |
| 280 | 803908 | HEX HEAD BOLT 3/4" NC X 1-1/4" G5 | 4 | PARTS REQUEST | |
|
COMING HEX HEAD BOLT 3/4" NC X 1-1/4" G5
803908 · qty on machine: 4 | |||||

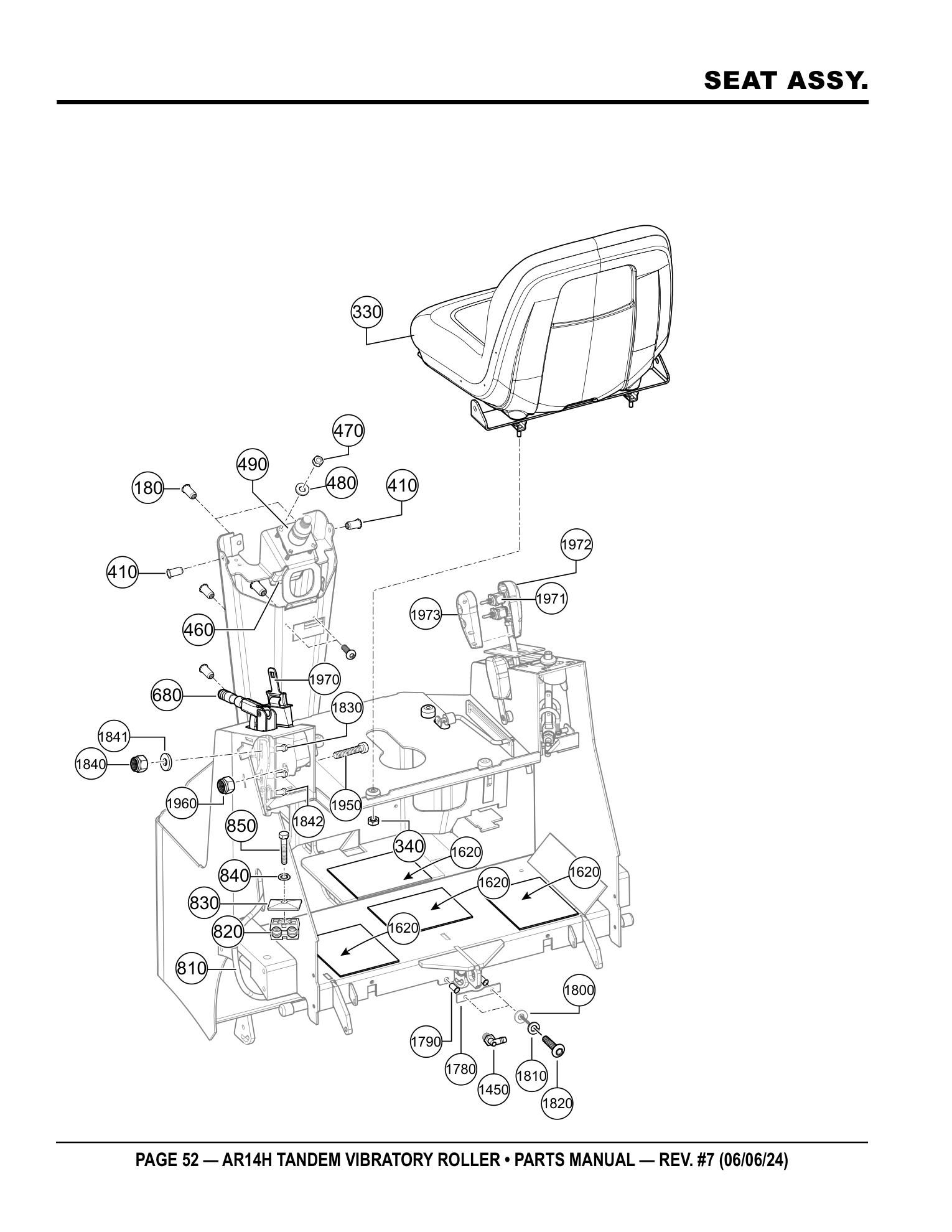

Page 52 — SEAT ASSY.
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 180 | 100602 | NUT, INSERT | 6 | ADD TO CART | |
| 330 | 802409 | SEAT | 1 | INCLUDES ITEM W/# | ADD TO CART |
 SEAT
802409 · qty on machine: 1 INCLUDES ITEM W/# Kit includes: 340# view full part page → $1125.03 IN A KIT + SOLD SOLO | |||||
| 340# | NUT, 5/16" NC | 4 | INCLUDED IN KIT | ||
|
COMING NUT, 5/16" NC
· qty on machine: 4 Included in kit 330 - SEAT (802409) INCLUDED IN KIT
| |||||
| 410 | 100602 | NUT, INSERT | 4 | ADD TO CART | |
| 460 | 506186 | HYDRAGUIDE | 1 | S/N 1L0400 AND BELOW | ADD TO CART |
| 460 | 522015 | PUMP, STEERING | 1 | S/N 1L0401 AND ABOVE EFFECTIVE JULY 1, 2020 | ADD TO CART |
| 470 | 509143 | NUT 5/16" | 4 | ADD TO CART | |
| 480 | EM923343 | WASHER, LOCK 5/16" | 4 | REPLACES P/N 492623 | ADD TO CART |
| 490 | 507862 | COLUMN, STEERING | 1 | REPLACES P/N 5061861 S/N 1L0400 AND BELOW | ADD TO CART |
| 490 | 522016 | COLUMN, STEERING | 1 | S/N 1L0401 AND ABOVE EFFECTIVE JULY 1, 2020 | ADD TO CART |
| 680 | 18057 | LEVER, BRAKE ASSY. | 1 | ADD TO CART | |
| 810 | 802396 | CABLE, BRAKE | 1 | ADD TO CART | |
| 820 | 505976 | CLAMP | 2 | SET OF 2 PIECES | ADD TO CART |
| 830 | 506185 | PLATE CORNER | 1 | ADD TO CART | |
| 840 | EM923343 | WASHER, LOCK 5/16" | 1 | REPLACES P/N 492623 | ADD TO CART |
| 850 | 2105162 | SCREW HHC | 1 | REPLACES P/N 492367 | ADD TO CART |
| 1450 | 506071 | ELBOW PVC | 1 | ADD TO CART | |
| 1620 | 508302 | PAD, RUBBER TANK | 4 | ADD TO CART | |
| 1780 | 803560 | SUPPORT BRACKET FOR SPRAYER | 1 | PARTS REQUEST | |
|
COMING SUPPORT BRACKET FOR SPRAYER
803560 · qty on machine: 1 | |||||
| 1790 | 100602 | NUT, INSERT | 2 | ADD TO CART | |
| 1800 | 492595 | WASHER, FLAT 3/16" | 2 | ADD TO CART | |
| 1810 | 2101402 | WASHER, LOCK 1/4" DIA | 2 | REPLACES P/N 49262 | ADD TO CART |
| 1820 | 100443 | SCREW M6X20 | 2 | ADD TO CART | |
| 1830 | 2105162 | SCREW HHC | 3 | REPLACES P/N 492367 | ADD TO CART |
| 1840 | 2105164 | NUT, NYLON 5/16-18" | 3 | REPLACES P/N 492582 | ADD TO CART |
| 1841 | EM923057 | WASHER, FLAT 1/4" | 2 | REPLACES P/N 492596 | ADD TO CART |
| 1842 | EM923343 | WASHER, LOCK 5/16" | 1 | REPLACES P/N 492623 | ADD TO CART |
| 1950 | 801310 | BOLT, M12X50 | 1 | ADD TO CART | |
| 1960 | 100081 | NUT, M12 NYLOK | 2 | ADD TO CART | |
| 1970 | 34606 | SEAT BELT, ROPS | 1 | ADD TO CART | |
| 1971 | EM98120 | SWITCH, FORWARD/REVERSE | 2 | ADD TO CART | |
| 1972 | 803430 | HANDLE, PLASTIC HALF BLANK | 1 | ADD TO CART | |
| 1973 | 805057 | HANDLE, PLASTIC HALF DRILLED | 1 | ADD TO CART | |

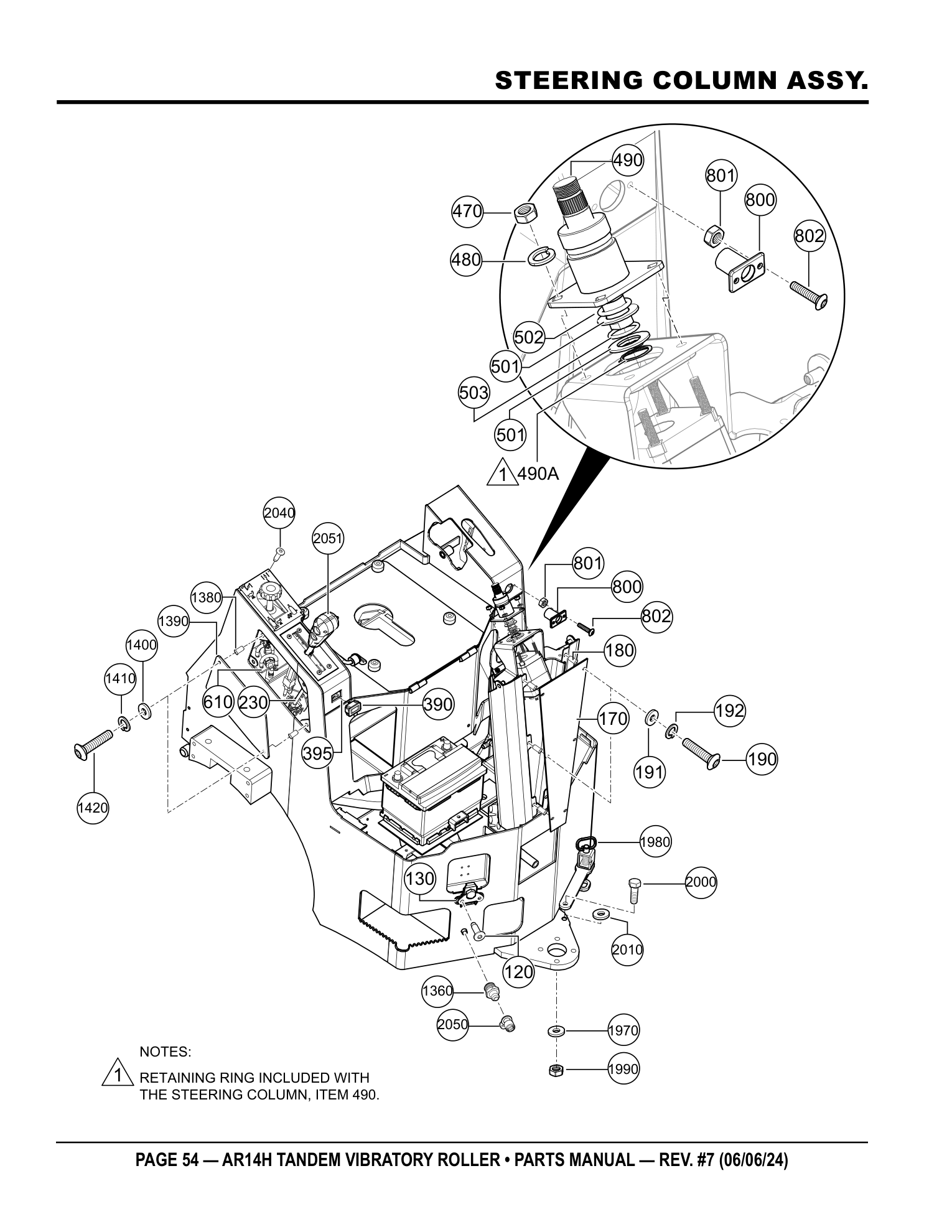

Page 54 — STEERING COLUMN ASSY.
Parts list — exactly as printed36 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 120 | 6630207 | RIVET | 7 | PARTS REQUEST | |
|
COMING RIVET
6630207 · qty on machine: 7 | |||||
| 130 | 517295 | LATCH, BUTTERFLY | 1 | PARTS REQUEST | |
|
COMING LATCH, BUTTERFLY
517295 · qty on machine: 1 | |||||
| 170 | 802635 | PANEL, ACCESS | 1 | PARTS REQUEST | |
|
COMING PANEL, ACCESS
802635 · qty on machine: 1 | |||||
| 180 | 100602 | NUT, INSERT | 6 | ADD TO CART | |
| 190 | 100443 | SCREW M6 X M20 | 6 | ADD TO CART | |
| 191 | 492595 | WASHER, FLAT 3/16" | 6 | ADD TO CART | |
| 192 | 2101402 | WASHER, LOCK 1/4" DIA | 6 | REPLACES P/N 492622 | ADD TO CART |
| 230 | 513324 | CABLE FORWARD AND REVERSE | 1 | ADD TO CART | |
| 390 | 800803 | HOUR/TACHOMETER | 1 | ADD TO CART | |
| 395 | 800417 | HOSE, WIRE SHIELD | 1.9 | ADD TO CART | |
 HOSE, WIRE SHIELD
800417 1.9 Factory replaced this part - current number 84004174 view full part page → $154.95 IN A KIT + SOLD SOLO | |||||
| 470 | 509143 | NUT 5/16" | 4 | ADD TO CART | |
| 480 | EM923343 | WASHER, LOCK 5/16" | 4 | REPLACES P/N 492623 | ADD TO CART |
| 490 | 507862 | COLUMN, STEERING | 1 | INCLUDES ITEMS W/# REPLACES P/N 5061861 S/N 1L0400 AND BELOW | ADD TO CART |
| 490 | 522016 | COLUMN, STEERING | 1 | S/N 1L0401 AND ABOVE EFFECTIVE JULY 1, 2020 | ADD TO CART |
| 490A# | RETAINING RING | 1 | INCLUDED IN KIT | ||
|
COMING RETAINING RING
· qty on machine: 1 Included in kit 490 - COLUMN, STEERING (507862) INCLUDED IN KIT
| |||||
| 501 | 507444 | SPACER | 2 | ADD TO CART | |
| 502 | 801873 | O-RING | 1 | ADD TO CART | |
| 503 | 803572 | O-RING | 1 | ADD TO CART | |
| 610 | 513322 | VALVE BALL | 1 | ADD TO CART | |
| 800 | 802500 | RECEPTACLE, CHARGER 12V | 1 | ADD TO CART | |
| 801 | 503119 | NUT, LOCK | 2 | ADD TO CART | |
| 802 | 803418 | SCREW, 3/16" NC X 3/4" G5 | 2 | PARTS REQUEST | |
|
COMING SCREW, 3/16" NC X 3/4" G5
803418 · qty on machine: 2 | |||||
| 1360 | EM916001 | FITTING, GREASE | 1 | REPLACES P/N 491698 | ADD TO CART |
| 1380 | 100602 | NUT, INSERT | 4 | ADD TO CART | |
| 1390 | 803011 | COVER, ACCESS PANEL | 1 | ADD TO CART | |
| 1400 | 100531 | WASHER | 4 | PARTS REQUEST | |
|
COMING WASHER
100531 · qty on machine: 4 | |||||
| 1410 | 2101402 | WASHER, LOCK 1/4" DIA | 4 | REPLACES P/N 492622 | ADD TO CART |
| 1420 | DULT100443J | SCREW M6 X 20 P-1 G2 | 4 | PARTS REQUEST | |
|
COMING SCREW M6 X 20 P-1 G2
DULT100443J · qty on machine: 4 | |||||
| 1970 | 34606 | SEAT BELT, ROPS | 1 | ADD TO CART | |
| 1980 | 803755 | BAR, ARTICULATION LOCK | 1 | ADD TO CART | |
| 1990 | 492584 | NUT, LOCK 1/2" DIA. NC | 1 | ADD TO CART | |
| 2000 | 492396 | BOLT, 1/2" NC X 2" | 1 | PARTS REQUEST | |
|
COMING BOLT, 1/2" NC X 2"
492396 · qty on machine: 1 | |||||
| 2010 | 492599 | WASHER, 1/2" | 3 | PARTS REQUEST | |
|
COMING WASHER, 1/2"
492599 · qty on machine: 3 | |||||
| 2040 | 512881 | RIVET BRAKE LINING | 4 | REPLACES P/N 503723 | ADD TO CART |
| 2050 | 491008 | FITTING PROTECTOR | 2 | ADD TO CART | |
| 2051 | 804551 | LEVER ASSY., FWD./REV. | 1 | ADD TO CART | |

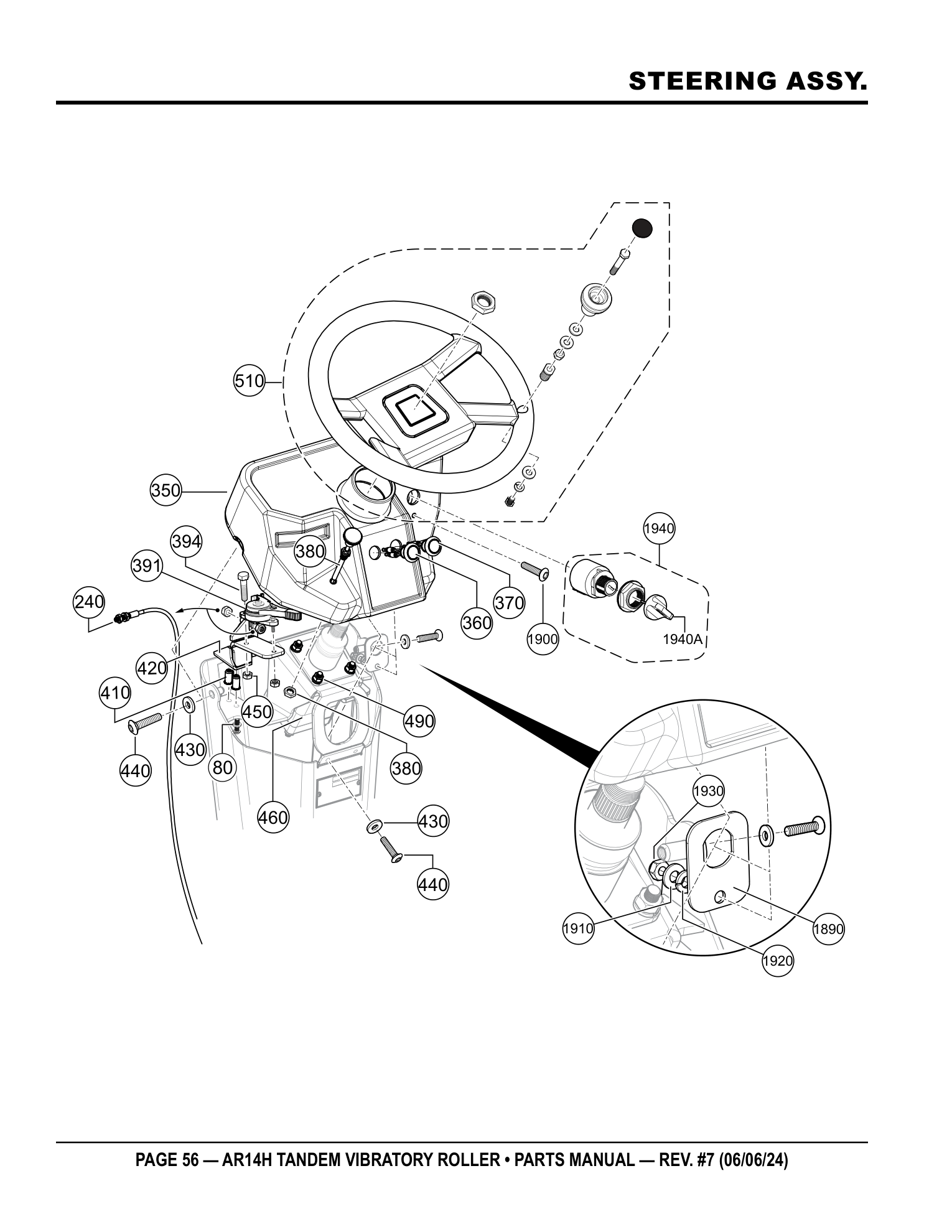

Page 56 — STEERING ASSY.
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 80 | 2101402 | WASHER, LOCK 1/4" DIA | 2 | REPLACES P/N 492622 | ADD TO CART |
| 240 | 803120 | THROTTLE CABLE | 1 | ADD TO CART | |
| 350 | 802602 | COVER, INSTRUMENT | 1 | ADD TO CART | |
| 360 | 801709 | LIGHT, AMBER | 1 | ADD TO CART | |
| 370 | 801708 | LIGHT, RED | 1 | ADD TO CART | |
| 380 | 506239 | CABLE CHOKE | 1 | ADD TO CART | |
| 391 | 803129 | LEVER, THROTTLE | 1 | ADD TO CART | |
| 394 | EM503115 | SCREW | 2 | REPLACES P/N 503115 | ADD TO CART |
| 410 | 100602 | NUT, INSERT | 4 | ADD TO CART | |
| 420 | 803163 | BRACKET, THROTTLE LEVER | 1 | PARTS REQUEST | |
|
COMING BRACKET, THROTTLE LEVER
803163 · qty on machine: 1 | |||||
| 430 | 492595 | WASHER, FLAT 3/16" | 4 | ADD TO CART | |
| 440 | 100443 | SCREW M6 X M20 | 6 | ADD TO CART | |
| 450 | 503119 | NUT, LOCK | 2 | ADD TO CART | |
| 460 | 506186 | HYDRAGUIDE HGF10120 | 1 | S/N 1L0400 AND BELOW | ADD TO CART |
| 460 | 522015 | PUMP, STEERING | 1 | S/N 1L0401 AND ABOVE EFFECTIVE JULY 1, 2020 | ADD TO CART |
| 490 | 507862 | COLUMN, STEERING | 1 | REPLACES P/N 5061861 S/N 1L0400 AND BELOW | ADD TO CART |
| 490 | 522016 | COLUMN, STEERING | 1 | S/N 1L0401 AND ABOVE EFFECTIVE JULY 1, 2020 | ADD TO CART |
| 510 | 801040 | STEERING WHEEL, WITH KNOB | 1 | PARTS REQUEST | |
|
COMING STEERING WHEEL, WITH KNOB
801040 · qty on machine: 1 Factory replaced this part - current number 810233 | |||||
| 520 | 509156 | NUT | 1 | ADD TO CART | |
| 1890 | 803582 | PLATE | 1 | ADD TO CART | |
| 1900 | 100443 | SCREW M6 X 20 | 1 | ADD TO CART | |
| 1910 | 492595 | WASHER, FLAT 3/16" | 1 | ADD TO CART | |
| 1920 | 2101402 | WASHER, LOCK 1/4" DIA | 1 | REPLACES P/N 492622 | ADD TO CART |
| 1930 | 100078 | NUT, M6 NYLON G8.8 | 1 | ADD TO CART | |
| 1940 | 803724 | IGNITION SWITCH W/KEYS | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 1940A# | 35110ZV5V501 | KEY, IGNITION | 1 | ADD TO CART | |
Page 58 — WATER TANK AND FILTER ASSY.
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 290 | 803116 | TANK, WATER | 1 | ADD TO CART | |
| 300 | 42435 | CAP, WATER TANK | 1 | ADD TO CART | |
| 310 | 802613 | WATER TANK, LOWER | 1 | ADD TO CART | |
| 320 | 506071 | ELBOW PVC | 3 | ADD TO CART | |
| 1090 | 801532 | FILTER, WATER | 1 | ADD TO CART | |
| 1091 | 517328 | WORM CLAMP | 2 | ADD TO CART | |
| 1100 | 506071 | ELBOW PVC | 6 | ADD TO CART | |
| 1110 | 805774 | WATER PUMP | 1 | ADD TO CART | |
| 1111 | 519888 | FITTING, STRAIGHT | 2 | ADD TO CART | |
| 1111A | 805805 | FITTING, 90° ELBOW 1/2 BARB X 3/8 | 2 | ADD TO CART | |
| 1120 | 492595 | WASHER, FLAT 3/16" | 4 | ADD TO CART | |
| 1130 | 2101402 | WASHER, LOCK 1/4" DIA. | 4 | REPLACES P/N 492622 | ADD TO CART |
| 1140 | 492256 | SCREW, ALLEN HD 1/4" X 1" 20-NC | 4 | ADD TO CART | |
| 1350 | 505489 | ADAPTER, FITTING | 1 | PARTS REQUEST | |
|
COMING ADAPTER, FITTING
505489 · qty on machine: 1 | |||||
| 1360 | EM916001 | FITTING, GREASE | 1 | REPLACES P/N 491698 | ADD TO CART |
| 1370 | 505516 | HOSE, GREASE, 6.3" | 1 | 1 PC=1 FT. | PARTS REQUEST |
|
COMING HOSE, GREASE, 6.3"
505516 · qty on machine: 1 1 PC=1 FT. | |||||
| 1490 | 513379 | ADAPTER | 1 | ADD TO CART | |
| 1500 | 519618 | HOSE, WATER 1/2", 24" | 2 | 1 PC=1 FT. | ADD TO CART |
| 1510 | 519618 | HOSE, WATER 1/2", 37.5" | 4 | 1 PC=1 FT. | ADD TO CART |
| 1520 | 519618 | HOSE, WATER 1/2", 26" | 3 | 1 PC=1 FT. | ADD TO CART |
| 1530 | 519618 | HOSE, WATER 1/2", 9" | 1 | 1 PC=1 FT. | ADD TO CART |
| 1540 | 519618 | HOSE, WATER 1/2", 27.5" | 3 | 1 PC=1 FT. | ADD TO CART |
| 1550 | 519618 | HOSE, WATER 1/2", 14.2" | 2 | 1 PC=1 FT. | ADD TO CART |
| 1560 | 519618 | HOSE, WATER 1/2", 34.65" | 3 | 1 PC=1 FT. | ADD TO CART |
| 1570 | 519618 | HOSE, WATER 1/2", 67" | 16 | 1 PC=1 FT. | ADD TO CART |
| 2050 | 491008 | FITTING PROTECTOR | 2 | ADD TO CART | |
| 2060 | 202724 | CAP, WATER DRAIN | 1 | ADD TO CART | |

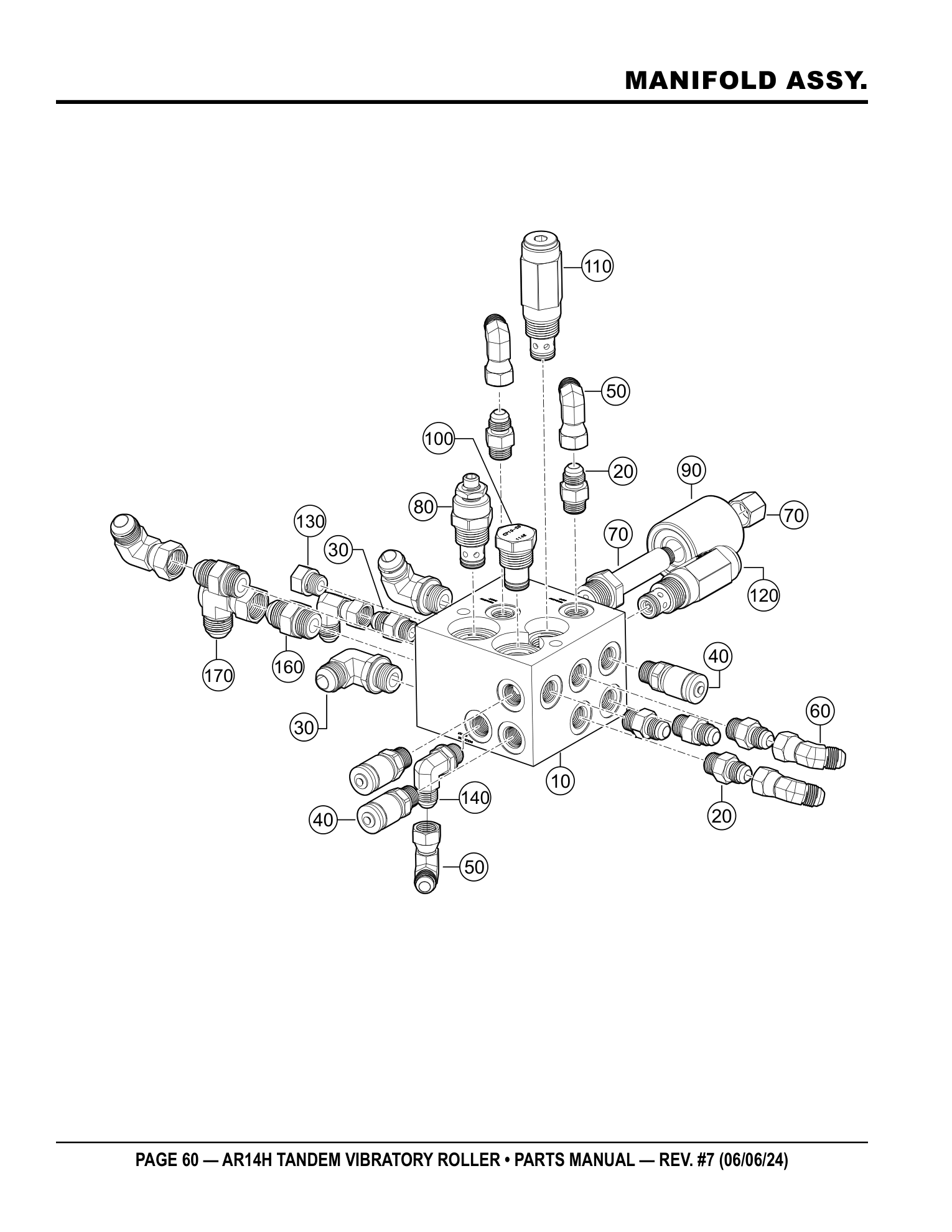

Page 60 — MANIFOLD ASSY.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 515502 | MANIFOLD | 1 | ADD TO CART | |
| 20 | 511808 | ADAPTER STRAIGHT | 7 | ADD TO CART | |
| 30 | EM25507 | FITTING | 2 | ADD TO CART | |
| 40 | 506182 | COUPLING PSI TEST | 3 | ADD TO CART | |
| 50 | 519967 | ADAPTER ELBOW | 4 | ADD TO CART | |
| 60 | 512234 | ADAPTER ELBOW | 2 | ADD TO CART | |
| 70 | 506245 | VALVE SOLENOID, VIBRATION | 1 | ADD TO CART | |
| 80 | 506247 | VALVE NEEDLE, TOW | 1 | ADD TO CART | |
| 90 | 507885 | COIL | 1 | ADD TO CART | |
| 100 | 507772 | PLUG | 1 | ADD TO CART | |
| 110 | 507774 | VALVE RELIEF | 1 | ADD TO CART | |
| 120 | 506246 | VALVE RELIEF | 1 | ADD TO CART | |
| 130 | 506205 | PLUG | 1 | ADD TO CART | |
| 140 | 506196 | ELBOW | 1 | ADD TO CART | |
| 160 | 506193 | FITTING | 2 | ADD TO CART | |
| 170 | 506195 | FITTING | 2 | ADD TO CART | |

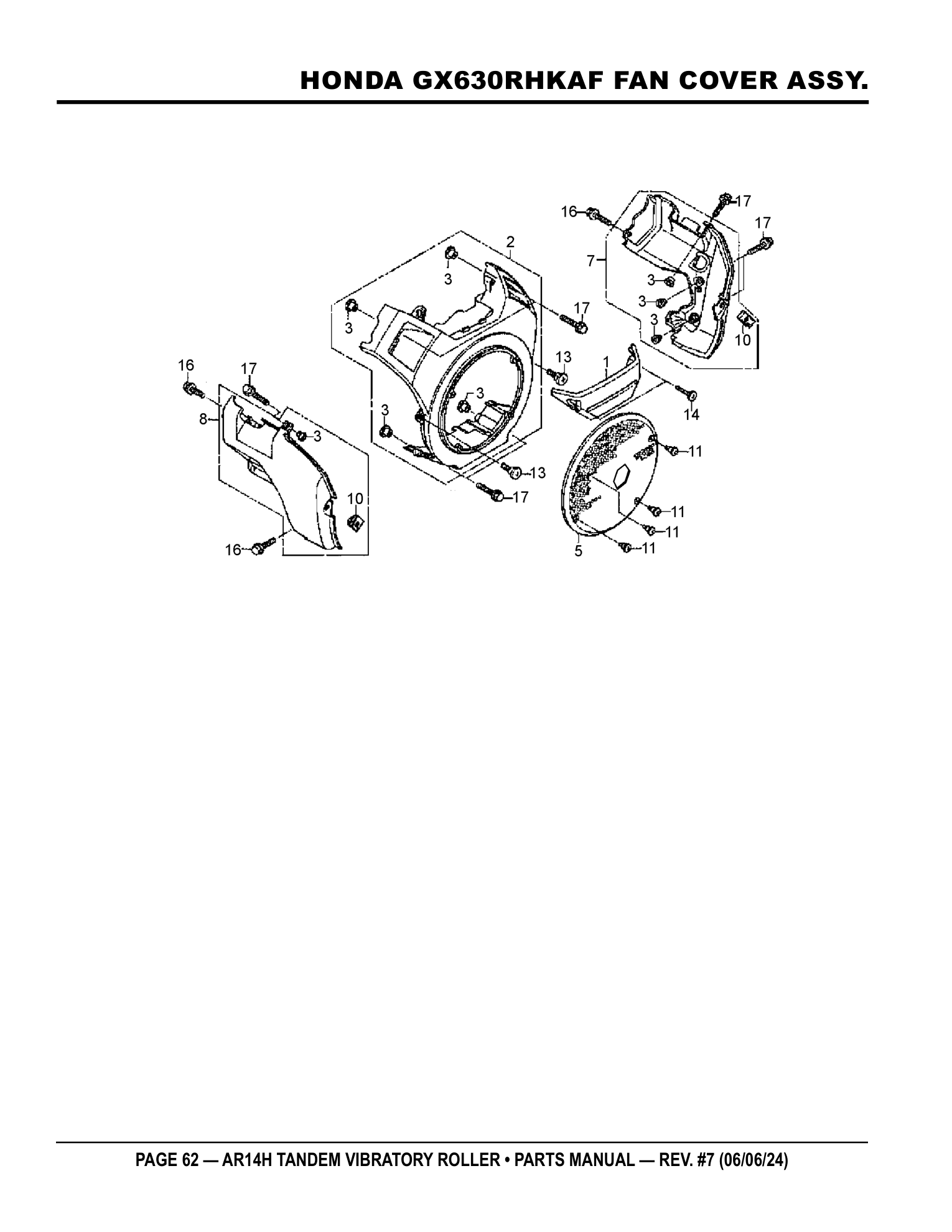

Page 62 — HONDA GX630RHKAF FAN COVER ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 16715Z6L000 | COVER, FUEL PUMP | 1 | ADD TO CART | |
| 2 | 19610Z6L000ZA | COVER COMP., FAN *R280* | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 3$%# | 19619Z0A300 | COLLAR, FAN COVER | 10 | ADD TO CART | |
| 5 | 19621Z6L800 | PROTECTOR, FAN COVER | 1 | PARTS REQUEST | |
|
COMING PROTECTOR, FAN COVER
19621Z6L800 · qty on machine: 1 | |||||
| 7 | 19641Z6L000 | SHROUD, R. LOWER | 1 | INCLUDES ITEMS W/% | NO LONGER AVAILABLE |
|
COMING SHROUD, R. LOWER
19641Z6L000 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 3$%#, 10%# NO LONGER AVAILABLE
| |||||
| 8 | 19642Z6L000 | SHROUD, L. LOWER | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 10%# | 84601HA7670 | NUT, FENDER SETTING | 2 | ADD TO CART | |
| 11 | 90005ZCK000 | SCREW, SPECIAL, 4X10 | 4 | PARTS REQUEST | |
|
COMING SCREW, SPECIAL, 4X10
90005ZCK000 · qty on machine: 4 | |||||
| 13 | 90380GM9740 | SCREW, SPECIAL, 6X15 | 2 | NO LONGER AVAILABLE | |
|
COMING SCREW, SPECIAL, 6X15
90380GM9740 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 14 | 9391325580 | SCREW, TAPPING, 5X20 | 2 | PARTS REQUEST | |
|
COMING SCREW, TAPPING, 5X20
9391325580 · qty on machine: 2 | |||||
| 16 | 957010601600 | BOLT, FLANGE, 6X16 | 3 | ADD TO CART | |
| 17 | 957010602000 | BOLT, FLANGE, 6X20 | 10 | ADD TO CART | |

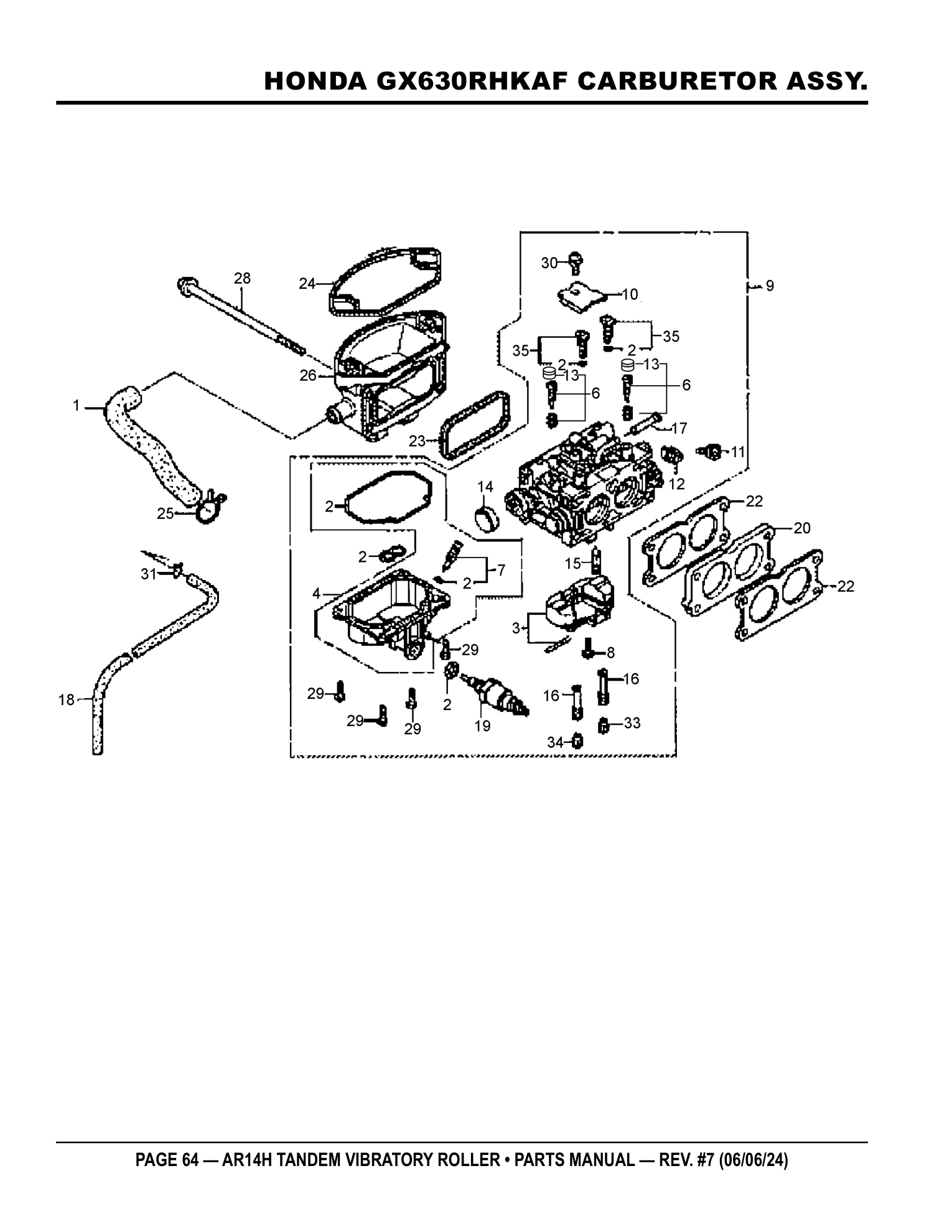

Page 64 — HONDA GX630RHKAF CARBURETOR ASSY.
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 15721Z6L000 | TUBE, BREATHER | 1 | ADD TO CART | |
| 2#$%& | 16010Z6L003 | GASKET SET | 1 | ADD TO CART | |
| 3$ | 16013Z6L003 | FLOAT SET | 1 | PARTS REQUEST | |
|
COMING FLOAT SET
16013Z6L003 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 4$ | 16015Z6L003 | CHAMBER SET, FLOAT | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING CHAMBER SET, FLOAT
16015Z6L003 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 6$ | 16016Z6L801 | SCREW SET | 2 | PARTS REQUEST | |
|
COMING SCREW SET
16016Z6L801 · qty on machine: 2 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 7%$ | 16024124760 | SCREW SET, DRAIN | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 8$ | 16081Z6L003 | SCREW, FLOAT | 1 | PARTS REQUEST | |
|
COMING SCREW, FLOAT
16081Z6L003 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 9 | 16100Z9E023 | CARBURETOR ASSY. | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 10$ | 16113Z6L003 | PLATE | 1 | PARTS REQUEST | |
|
COMING PLATE
16113Z6L003 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 11$ | 16124ZE0005 | SCREW, THROTTLE STOP | 1 | ADD TO CART | |
| 12$ | 16126Z6L003 | ARM, THROTTLE LINKAGE | 1 | PARTS REQUEST | |
|
COMING ARM, THROTTLE LINKAGE
16126Z6L003 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 13$ | 16134Z6L801 | CAP, ADJUSTING SCREW | 2 | PARTS REQUEST | |
|
COMING CAP, ADJUSTING SCREW
16134Z6L801 · qty on machine: 2 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 14$ | 16148141881 | CAP, CHOKE DUST | 1 | ADD TO CART | |
| 15$ | 16155Z6L003 | VALVE COMP., FLOAT | 1 | PARTS REQUEST | |
|
COMING VALVE COMP., FLOAT
16155Z6L003 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 16$ | 16166Z9E003 | NOZZLE, MAIN | 2 | PARTS REQUEST | |
|
COMING NOZZLE, MAIN
16166Z9E003 · qty on machine: 2 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 17$ | 16176Z2GD51 | SCREEN, FUEL STRAINER | 1 | PARTS REQUEST | |
|
COMING SCREEN, FUEL STRAINER
16176Z2GD51 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 18 | 16198Z6L000 | TUBE, DRAIN | 1 | PARTS REQUEST | |
|
COMING TUBE, DRAIN
16198Z6L000 · qty on machine: 1 | |||||
| 19$ | 16200Z6L003 | VALVE ASSY., SOLENOID | 1 | ADD TO CART | |
| 20 | 16211Z6L000 | INSULATOR, CARBURETOR | 1 | ADD TO CART | |
| 22 | 16221Z6L000 | PACKING, CARBURETOR | 2 | ADD TO CART | |
| 23 | 17228Z6L000 | PACKING, AIR CLEANER | 1 | ADD TO CART | |
| 24 | 17229Z6L000 | SEAL, AIR CLEANER CASE | 1 | ADD TO CART | |
| 25 | 17369KB4670 | CLIP, BREATHER TUBE | 1 | PARTS REQUEST | |
|
COMING CLIP, BREATHER TUBE
17369KB4670 · qty on machine: 1 | |||||
| 26 | 17410Z6L000 | ELBOW COMP., AIR CLEANER | 1 | ADD TO CART | |
| 28 | 90003Z6L000 | BOLT, FLANGE, 6X106 | 4 | PARTS REQUEST | |
|
COMING BOLT, FLANGE, 6X106
90003Z6L000 · qty on machine: 4 | |||||
| 29$ | 93500040121H | SCREW, PAN, 4X12 | 4 | PARTS REQUEST | |
|
COMING SCREW, PAN, 4X12
93500040121H · qty on machine: 4 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 30$ | 938920501018 | SCREW-WASHER, 5X10 | 1 | PARTS REQUEST | |
|
COMING SCREW-WASHER, 5X10
938920501018 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 31 | 9500202080 | CLIP, TUBE | 1 | ADD TO CART | |
| 33$ | 99101ZH80980 | JET, MAIN, #98 | 1 | ADD TO CART | |
| 33$ | 99101ZH81020 | JET, MAIN, #102 | 1 | PARTS REQUEST | |
|
COMING JET, MAIN, #102
99101ZH81020 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 33$ | 99101ZH81100 | JET, MAIN, #110 | 1 | PARTS REQUEST | |
|
COMING JET, MAIN, #110
99101ZH81100 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 34$ | 99101ZH80980 | JET, MAIN, #98 | 1 | ADD TO CART | |
| 34$ | 99101ZH81020 | JET, MAIN, #102 | 1 | PARTS REQUEST | |
|
COMING JET, MAIN, #102
99101ZH81020 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 34$ | 99101ZH81100 | JET, MAIN, #110 | 1 | PARTS REQUEST | |
|
COMING JET, MAIN, #110
99101ZH81100 · qty on machine: 1 Also included in kit 9 - CARBURETOR ASSY. (16100Z9E023) | |||||
| 35$ | 99204ZE20400 | JET SET, PILOT, #40 | 2 | INCLUDES ITEMS W/& | ADD TO CART |

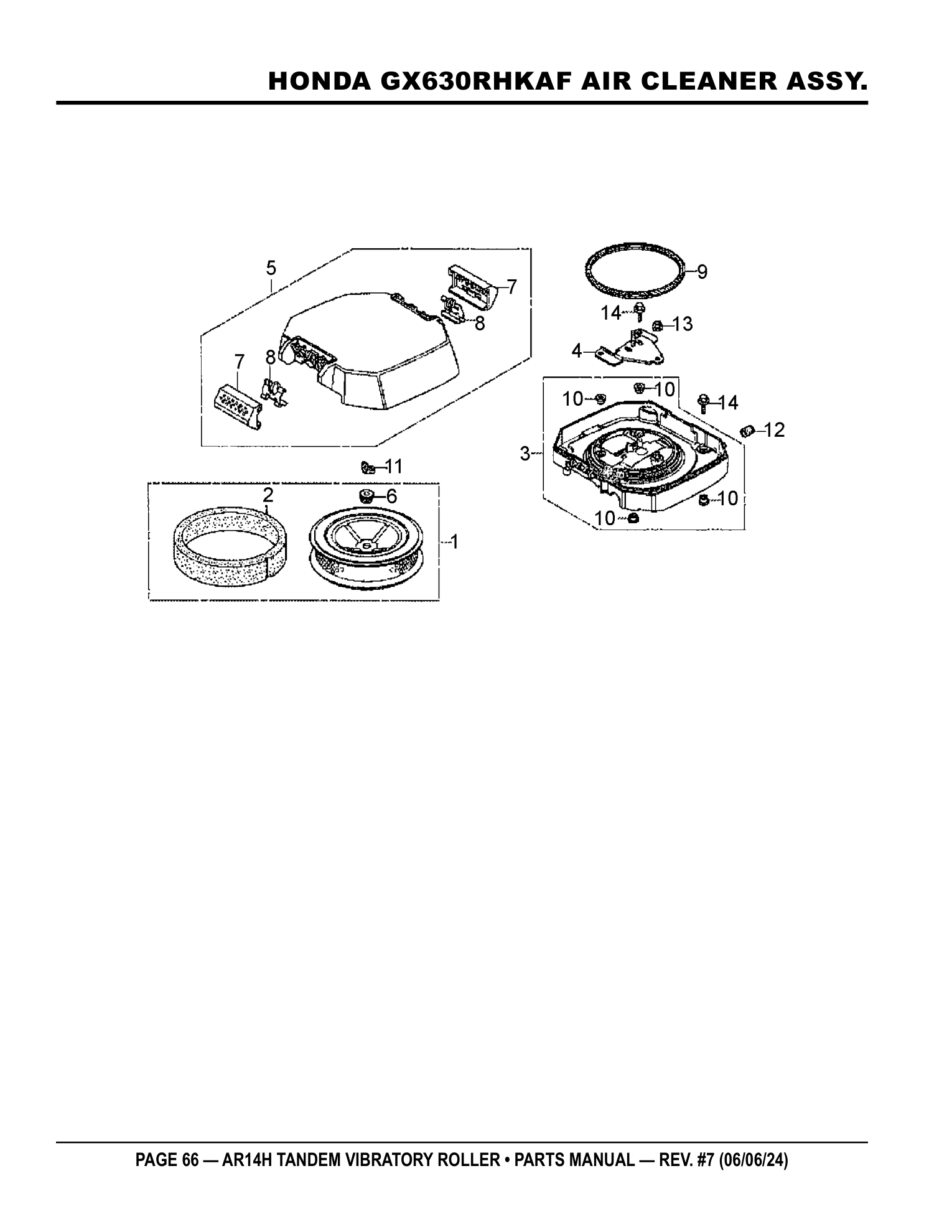

Page 66 — HONDA GX630RHKAF AIR CLEANER ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 17210Z6L010 | ELEMENT COMP., AIR CLEANER | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | 17218Z6L000 | FILTER, OUTER | 1 | ADD TO CART | |
| 3 | 17220Z6L000 | CASE COMP., AIR CLEANER | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 4 | 17223Z6L000 | STAY COMP., AIR CLEANER ELEMENT | 1 | ADD TO CART | |
| 5 | 17230Z6L000 | COVER COMP., AIR CLEANER | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 6# | 17232Z2E000 | GROMMET, AIR CLEANER | 1 | ADD TO CART | |
| 7$ | 17235Z6L300 | KNOB, AIR CLEANER COVER | 2 | ADD TO CART | |
| 8$ | 17236Z6L300 | SPRING, AIR CLEANER CASE COVER | 2 | ADD TO CART | |
| 9 | 17417Z6L000 | PACKING, AIR CLEANER CASE | 1 | ADD TO CART | |
| 10% | 19619Z0A300 | COLLAR, FAN COVER | 4 | ADD TO CART | |
| 11 | 90325044000 | NUT, TOOL BOX SETTING | 1 | ADD TO CART | |
| 12 | 90802Z6L000 | CAP, SEALING | 1 | ADD TO CART | |
| 13 | 9405006000 | NUT, FLANGE, 6MM | 1 | ADD TO CART | |
| 14 | 957010601800 | BOLT, FLANGE, 6X18 | 4 | ADD TO CART | |

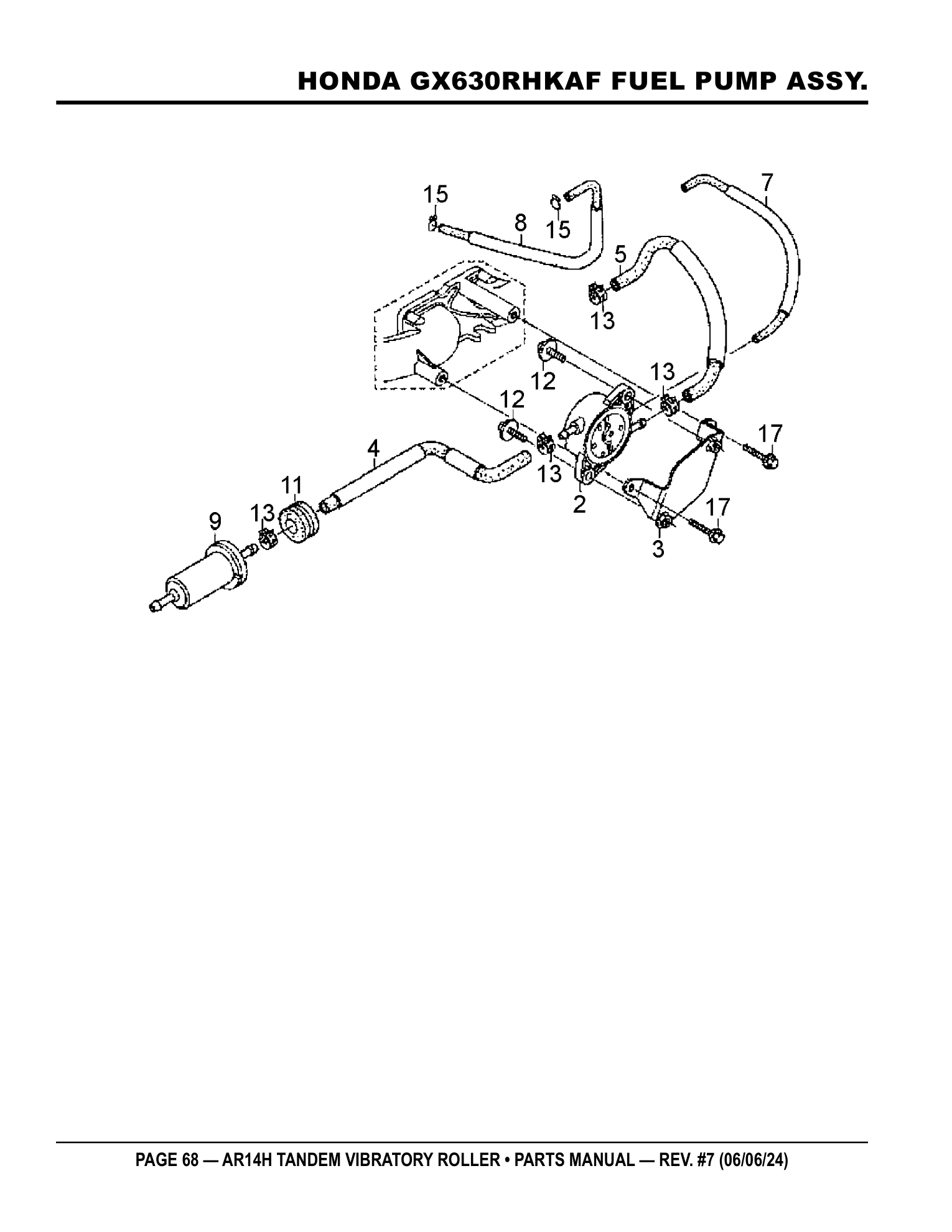

Page 68 — HONDA GX630RHKAF FUEL PUMP ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 16700Z6L003 | PUMP ASSY., FUEL | 1 | ADD TO CART | |
| 3 | 16711Z6L000 | STAY, FUEL PUMP | 1 | PARTS REQUEST | |
|
COMING STAY, FUEL PUMP
16711Z6L000 · qty on machine: 1 | |||||
| 4 | 16850Z6L020 | TUBE COMP. A, FUEL | 1 | ADD TO CART | |
| 5 | 16860Z6L000 | TUBE COMP. B, FUEL | 1 | ADD TO CART | |
| 7 | 16870Z6L000 | TUBE, PURGE | 1 | PARTS REQUEST | |
|
COMING TUBE, PURGE
16870Z6L000 · qty on machine: 1 | |||||
| 8 | 16882Z6L000 | TUBE, DIAPHRAGM | 1 | PARTS REQUEST | |
|
COMING TUBE, DIAPHRAGM
16882Z6L000 · qty on machine: 1 | |||||
| 9 | 16910Z6L003 | FUEL FILTER, IN-LINE | 1 | ADD TO CART | |
| 11 | 80152958680 | RUBBER, RR. FENDER | 1 | PARTS REQUEST | |
|
COMING RUBBER, RR. FENDER
80152958680 · qty on machine: 1 | |||||
| 12 | 938940601600 | SCREW-WASHER, 6X16 | 2 | PARTS REQUEST | |
|
COMING SCREW-WASHER, 6X16
938940601600 · qty on machine: 2 | |||||
| 13 | 950024100008 | CLAMP, TUBE | 4 | ADD TO CART | |
| 15 | 9500270000 | CLIP, TUBE | 2 | PARTS REQUEST | |
|
COMING CLIP, TUBE
9500270000 · qty on machine: 2 | |||||
| 17 | 957010601400 | BOLT, FLANGE, 6X14 | 2 | ADD TO CART | |

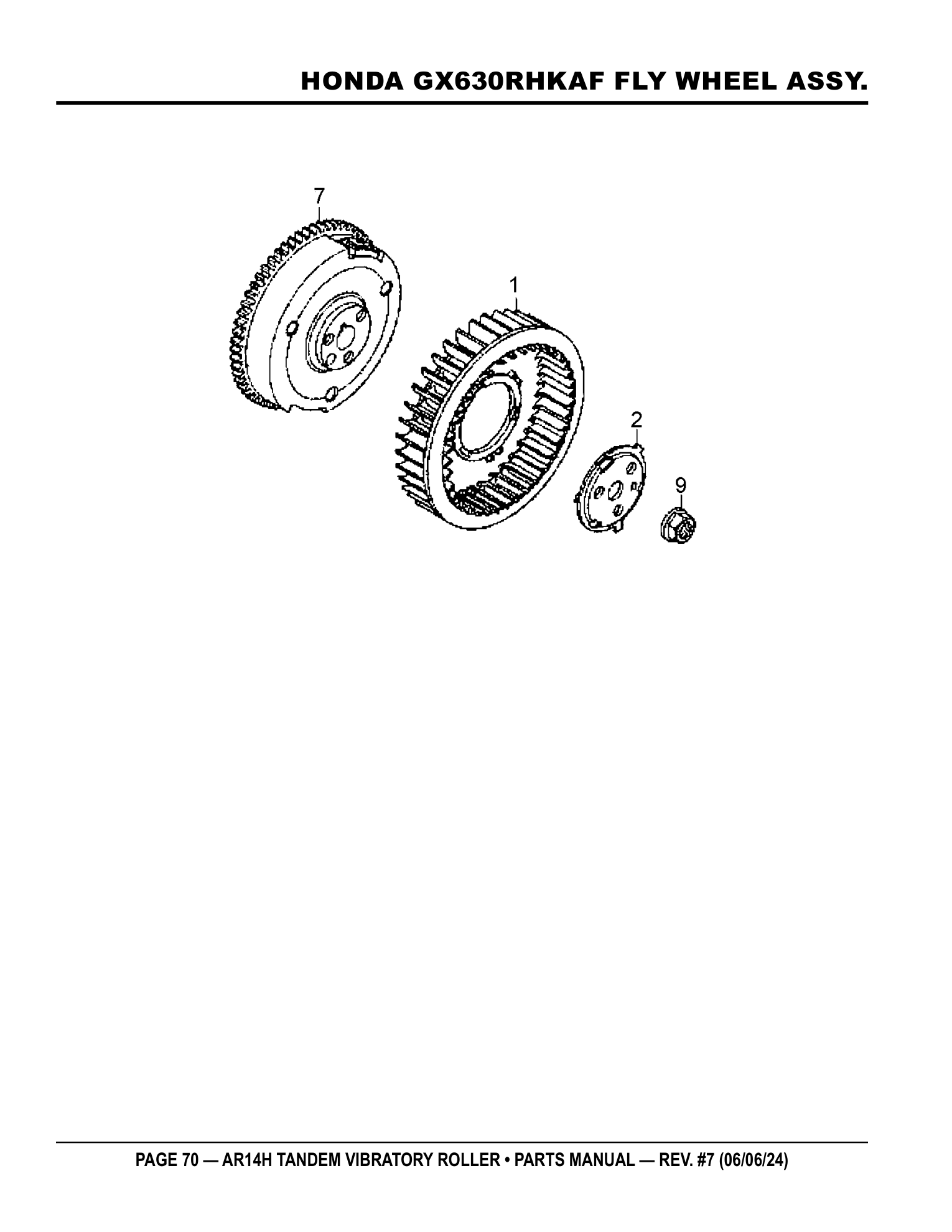

Page 70 — HONDA GX630RHKAF FLY WHEEL ASSY.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 19511Z6L000 | FAN, COOLING | 1 | ADD TO CART | |
| 2 | 19513Z6L000 | PLATE, COOLING FAN SETTING | 1 | PARTS REQUEST | |
|
COMING PLATE, COOLING FAN SETTING
19513Z6L000 · qty on machine: 1 | |||||
| 7 | 31110Z6L801 | FLYWHEEL COMP. | 1 | PARTS REQUEST | |
|
COMING FLYWHEEL COMP.
31110Z6L801 · qty on machine: 1 | |||||
| 9 | 90201Z6L000 | NUT, SPECIAL 20MM | 1 | PARTS REQUEST | |
|
COMING NUT, SPECIAL 20MM
90201Z6L000 · qty on machine: 1 | |||||

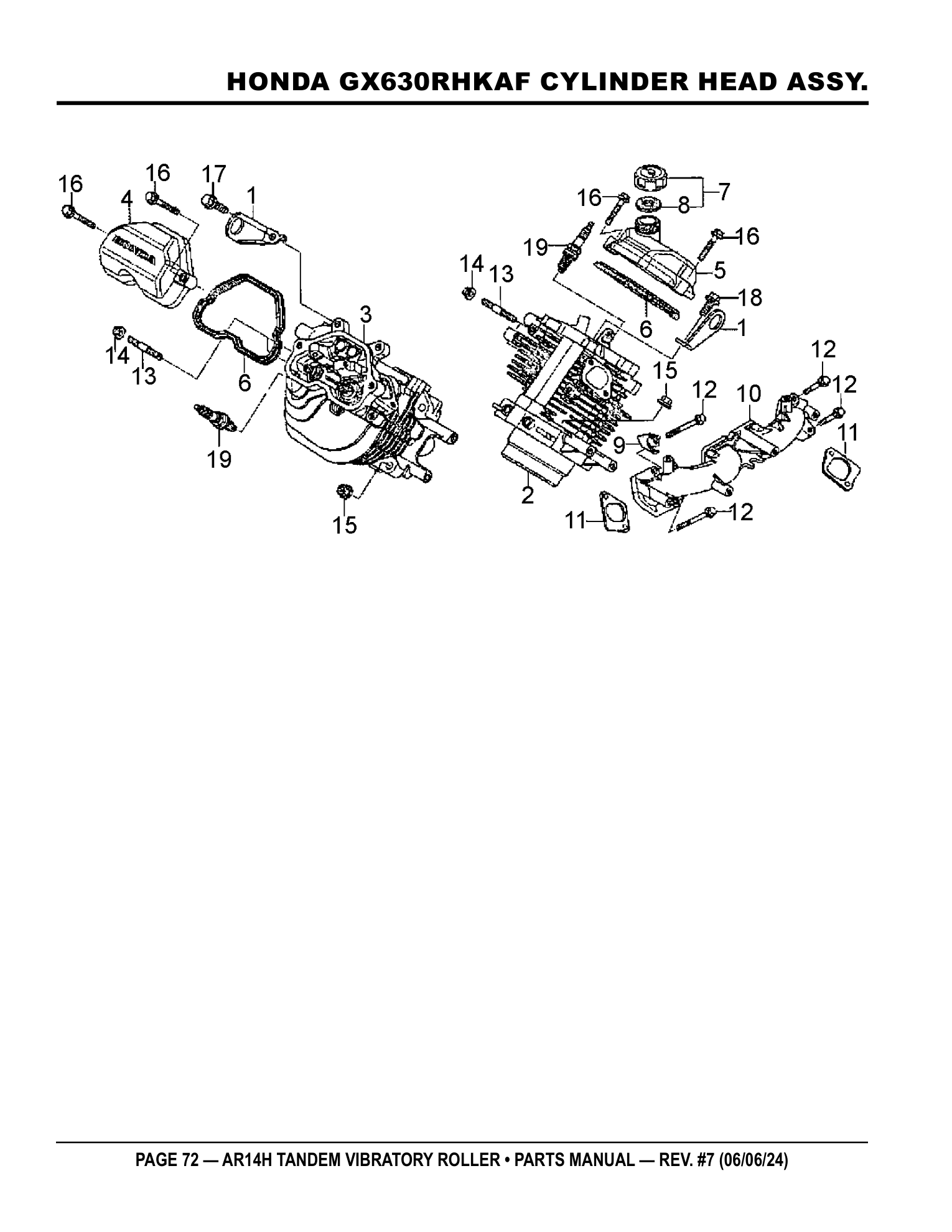

Page 72 — HONDA GX630RHKAF CYLINDER HEAD ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 11911Z6L000 | HANGER, ENGINE | 2 | PARTS REQUEST | |
|
COMING HANGER, ENGINE
11911Z6L000 · qty on machine: 2 | |||||
| 2 | 12110Z6L010 | HEAD COMP., CYLINDER (#1) | 1 | PARTS REQUEST | |
|
COMING HEAD COMP., CYLINDER (#1)
12110Z6L010 · qty on machine: 1 Factory replaced this part - current number 12110Z6L307 | |||||
| 3 | 12120Z6L010 | HEAD COMP., CYLINDER (#2) | 1 | PARTS REQUEST | |
|
COMING HEAD COMP., CYLINDER (#2)
12120Z6L010 · qty on machine: 1 | |||||
| 4 | 12311Z6L000 | COVER, CYLINDER HEAD | 1 | ADD TO CART | |
| 5 | 12311Z6L800 | COVER, CYLINDER HEAD | 1 | ADD TO CART | |
| 6 | 12312Z6L000 | PACKING, HEAD COVER | 2 | ADD TO CART | |
| 7 | 15600Z6L000 | CAP ASSY., OIL FILLER | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 8$ | 15625Z6L000 | PACKING, OIL FILLER CAP | 1 | ADD TO CART | |
| 9 | 16722Z6L010 | STAY, FUEL TUBE GROMMET | 1 | PARTS REQUEST | |
|
COMING STAY, FUEL TUBE GROMMET
16722Z6L010 · qty on machine: 1 | |||||
| 10 | 17101Z6L010 | MANIFOLD, INTAKE | 1 | PARTS REQUEST | |
|
COMING MANIFOLD, INTAKE
17101Z6L010 · qty on machine: 1 | |||||
| 11 | 17151Z6L010 | PACKING, INTAKE MANIFOLD | 2 | ADD TO CART | |
| 12 | 90006Z6L000 | BOLT, FLANGE, 8X55 | 4 | PARTS REQUEST | |
|
COMING BOLT, FLANGE, 8X55
90006Z6L000 · qty on machine: 4 | |||||
| 13 | 92900080220E | BOLT, STUD, 8X22 | 4 | PARTS REQUEST | |
|
COMING BOLT, STUD, 8X22
92900080220E · qty on machine: 4 | |||||
| 14 | 9405008000 | NUT, FLANGE, 8MM | 4 | ADD TO CART | |
| 15 | 9405010000 | NUT, FLANGE, 10MM | 8 | ADD TO CART | |
| 16 | 957010603000 | BOLT, FLANGE, 6X30 | 4 | NO LONGER AVAILABLE | |
|
COMING BOLT, FLANGE, 6X30
957010603000 · qty on machine: 4 NO LONGER AVAILABLE
| |||||
| 17 | 957010801600 | BOLT, FLANGE, 8X16 | 1 | PARTS REQUEST | |
|
COMING BOLT, FLANGE, 8X16
957010801600 · qty on machine: 1 | |||||
| 18 | 957010801600 | BOLT, FLANGE, 8X16 | 1 | PARTS REQUEST | |
|
COMING BOLT, FLANGE, 8X16
957010801600 · qty on machine: 1 | |||||
| 19 | 980795587G | PLUG, SPARK | 2 | PARTS REQUEST | |
|
COMING PLUG, SPARK
980795587G · qty on machine: 2 | |||||

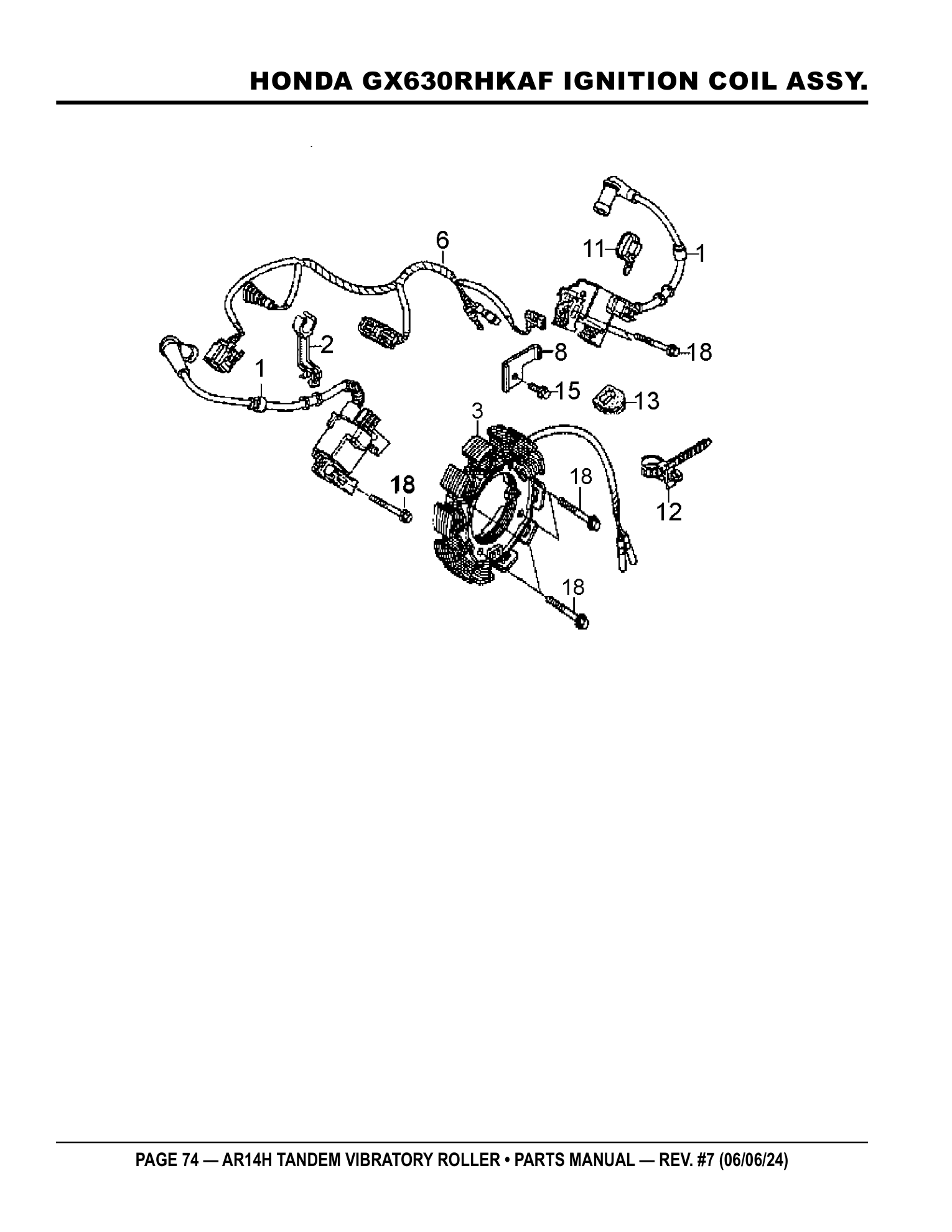

Page 74 — HONDA GX630RHKAF IGNITION COIL ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 30500Z6L023 | COIL ASSY., IGNITION | 2 | ADD TO CART | |
| 2 | 30551Z6L000 | CLAMP, HIGH TENSION CORD | 1 | PARTS REQUEST | |
|
COMING CLAMP, HIGH TENSION CORD
30551Z6L000 · qty on machine: 1 | |||||
| 3 | 31630Z6L811 | COIL ASSY., CHARGE (26A) | 1 | ADD TO CART | |
| 6 | 32110Z6L000 | HARNESS ASSY., ENGINE WIRE | 1 | ADD TO CART | |
| 8 | 32114Z6L000 | BRACKET, HARNESS | 1 | PARTS REQUEST | |
|
COMING BRACKET, HARNESS
32114Z6L000 · qty on machine: 1 | |||||
| 11 | 90650KV6003 | BAND, WIRE, 95MM | 1 | ADD TO CART | |
| 12 | 90672SB2003 | STRAP, CABLE, 105MM (BLACK) | 1 | PARTS REQUEST | |
|
COMING STRAP, CABLE, 105MM (BLACK)
90672SB2003 · qty on machine: 1 | |||||
| 13 | 91601Z6L000 | GROMMET, CORD | 1 | PARTS REQUEST | |
|
COMING GROMMET, CORD
91601Z6L000 · qty on machine: 1 | |||||
| 15 | 957010601200 | BOLT, FLANGE, 6X12 | 1 | NO LONGER AVAILABLE | |
|
COMING BOLT, FLANGE, 6X12
957010601200 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 18 | 957010603200 | BOLT, FLANGE, 6X32 | 6 | ADD TO CART | |

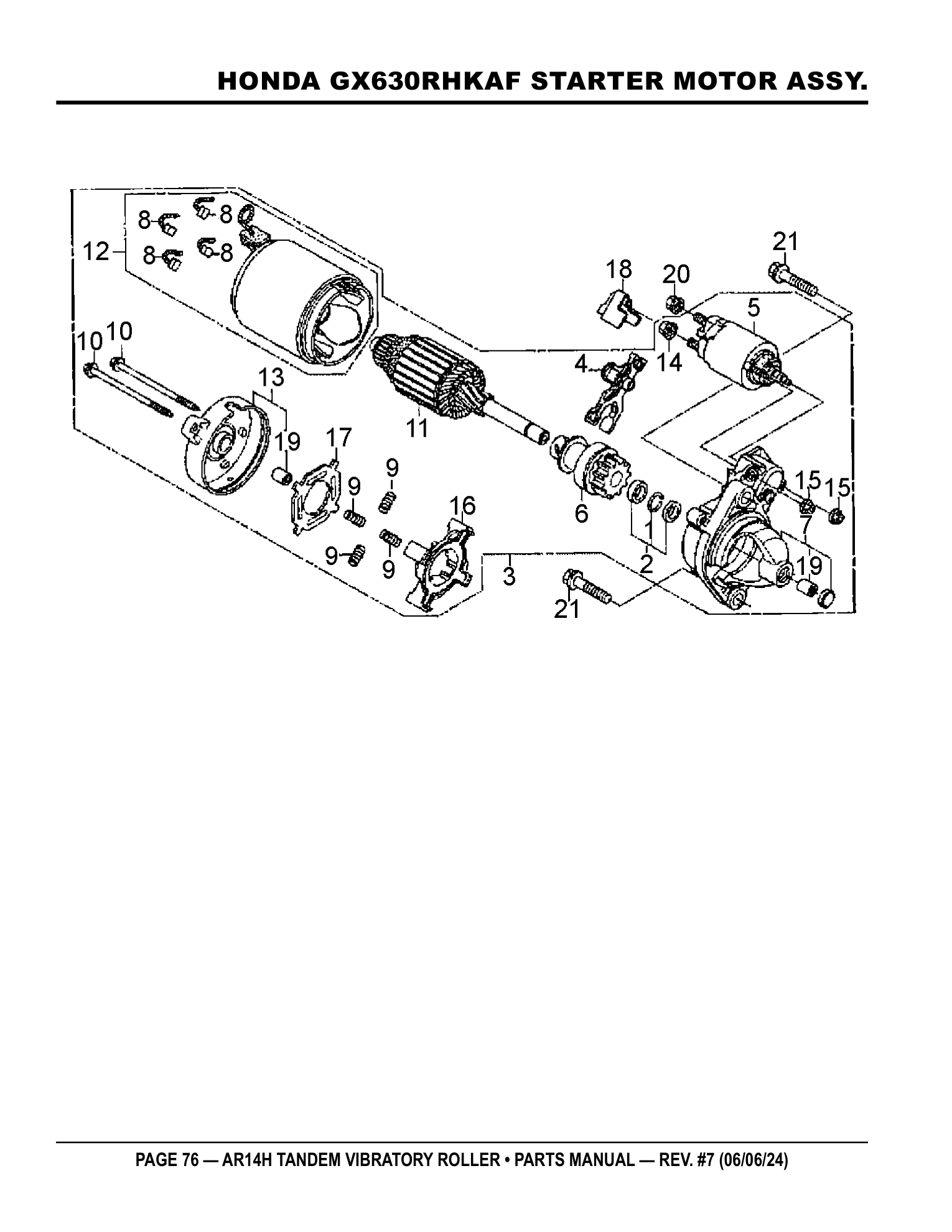

Page 76 — HONDA GX630RHKAF STARTER MOTOR ASSY.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1#& | 30201PH9004 | RING, SNAP | 1 | PARTS REQUEST | |
|
COMING RING, SNAP
30201PH9004 · qty on machine: 1 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003); kit 2 - COLLAR SET, CLUTCH STOP (30202PZ1003) | |||||
| 2# | 30202PZ1003 | COLLAR SET, CLUTCH STOP | 1 | INCLUDES ITEMS W/& | PARTS REQUEST |
|
COMING COLLAR SET, CLUTCH STOP
30202PZ1003 · qty on machine: 1 INCLUDES ITEMS W/& Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 3 | 31200Z6L003 | MOTOR ASSY., STARTER | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 4# | 31203PH9004 | LEVER, PINION DRIVE | 1 | PARTS REQUEST | |
|
COMING LEVER, PINION DRIVE
31203PH9004 · qty on machine: 1 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 5# | 31204ZJ1H02 | SWITCH ASSY., MAGNET | 1 | ADD TO CART | |
| 6# | 31207ZE9H01 | CLUTCH COMP., OVERRUNNING | 1 | PARTS REQUEST | |
|
COMING CLUTCH COMP., OVERRUNNING
31207ZE9H01 · qty on machine: 1 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 7# | 31208Z6L003 | HOUSING COMP., DRIVE SIDE | 1 | INCLUDES ITEMS W/@ | PARTS REQUEST |
|
COMING HOUSING COMP., DRIVE SIDE
31208Z6L003 · qty on machine: 1 INCLUDES ITEMS W/@ Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 8#$ | 31211PH9004 | BRUSH | 4 | ADD TO CART | |
| 9# | 31212PH9004 | SPRING, BRUSH | 4 | PARTS REQUEST | |
|
COMING SPRING, BRUSH
31212PH9004 · qty on machine: 4 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 10# | 31214PH9004 | BOLT, THROUGH | 2 | PARTS REQUEST | |
|
COMING BOLT, THROUGH
31214PH9004 · qty on machine: 2 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 11# | 31217Z0A003 | ARMATURE COMP. | 1 | PARTS REQUEST | |
|
COMING ARMATURE COMP.
31217Z0A003 · qty on machine: 1 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 12# | 31218P64N01 | YOKE COMP. | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING YOKE COMP.
31218P64N01 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 13# | 31219Z6L003 | FRAME COMP., COMMUTATOR END | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING FRAME COMP., COMMUTATOR END
31219Z6L003 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 14# | 31220PH9004 | NUT, HEX 8MM | 1 | PARTS REQUEST | |
|
COMING NUT, HEX 8MM
31220PH9004 · qty on machine: 1 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 15# | 31223PA0006 | NUT, HEX | 2 | PARTS REQUEST | |
|
COMING NUT, HEX
31223PA0006 · qty on machine: 2 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 16# | 31231PH9004 | HOLDER, BRUSH | 1 | PARTS REQUEST | |
|
COMING HOLDER, BRUSH
31231PH9004 · qty on machine: 1 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 17# | 31233PH9004 | INSULATOR, BRUSH HOLDER | 1 | PARTS REQUEST | |
|
COMING INSULATOR, BRUSH HOLDER
31233PH9004 · qty on machine: 1 Also included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003) | |||||
| 18 | 31234Z6L000 | COVER, TERMINAL | 1 | PARTS REQUEST | |
|
COMING COVER, TERMINAL
31234Z6L000 · qty on machine: 1 | |||||
| 19#%@91002ZG4801 | BEARING A | 2 | INCLUDED IN KIT | ||
|
COMING BEARING A
· qty on machine: 2 Included in kit 3 - MOTOR ASSY., STARTER (31200Z6L003); kit 7 - HOUSING COMP., DRIVE SIDE (31208Z6L003); kit 13 - FRAME COMP., COMMUTATOR EN (31219Z6L003) INCLUDED IN KIT
| |||||
| 20 | 9407008080 | NUT-WASHER, 8MM | 1 | PARTS REQUEST | |
|
COMING NUT-WASHER, 8MM
9407008080 · qty on machine: 1 | |||||
| 21 | 957011004000 | BOLT, FLANGE 10X40 | 2 | ADD TO CART | |

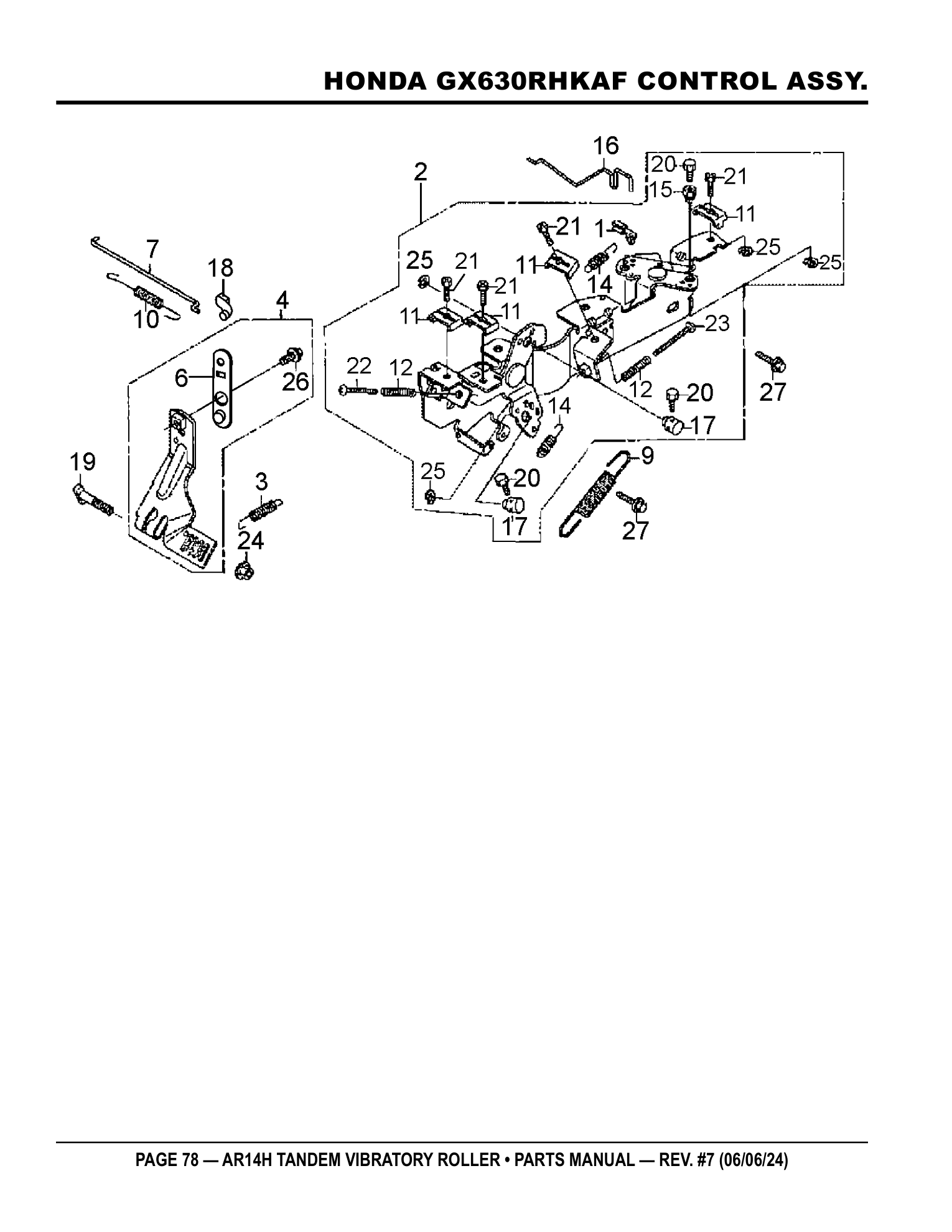

Page 78 — HONDA GX630RHKAF CONTROL ASSY.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1$ | 16263Z0G010 | JOINT, ROD | 1 | ADD TO CART | |
| 2 | 16500Z6L812 | CONTROL ASSY | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 3 | 16534Z6L000 | SPRING, STARTER | 1 | ADD TO CART | |
| 4 | 16550Z6L020 | ARM COMP., GOVERNOR | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING ARM COMP., GOVERNOR
16550Z6L020 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 6%, 26% | |||||
| 6% | 16553Z6L010 | ARM, SUB | 1 | PARTS REQUEST | |
|
COMING ARM, SUB
16553Z6L010 · qty on machine: 1 Also included in kit 4 - ARM COMP., GOVERNOR (16550Z6L020) | |||||
| 7 | 16555Z6L010 | ROD, GOVERNOR | 1 | PARTS REQUEST | |
|
COMING ROD, GOVERNOR
16555Z6L010 · qty on machine: 1 | |||||
| 9 | 16561Z6L000 | SPRING, GOVERNOR | 1 | ADD TO CART | |
| 10 | 16562Z6L010 | SPRING, THROTTLE RETURN | 1 | ADD TO CART | |
| 11$ | 16576891000 | HOLDER, CABLE | 4 | ADD TO CART | |
| 12$ | 16584883300 | SPRING, CONTROL ADJUSTING | 2 | ADD TO CART | |
| 14$ | 16592ZJ1000 | SPRING, CABLE RETURN | 2 | NO LONGER AVAILABLE | |
|
COMING SPRING, CABLE RETURN
16592ZJ1000 · qty on machine: 2 Also included in kit 2 - CONTROL ASSY (16500Z6L812) NO LONGER AVAILABLE
| |||||
| 15$ | 16594883010 | HOLDER, WIRE | 2 | ADD TO CART | |
| 16 | 16611Z6L010 | ROD, CHOKE CONTROL | 1 | PARTS REQUEST | |
|
COMING ROD, CHOKE CONTROL
16611Z6L010 · qty on machine: 1 | |||||
| 17$ | 16617Z6L000 | HOLDER, CABLE | 2 | ADD TO CART | |
| 18 | 17957Z6L003 | BUSH, LINKAGE | 1 | PARTS REQUEST | |
|
COMING BUSH, LINKAGE
17957Z6L003 · qty on machine: 1 | |||||
| 19 | 90015ZE3790 | BOLT, GOVERNOR ARM | 1 | ADD TO CART | |
| 20$ | 92301040060H | BOLT, RECESSED, 4X6 | 4 | ADD TO CART | |
| 21$ | 92301050160A | BOLT, RECESSED, 5X16 | 4 | ADD TO CART | |
| 22$ | 93500050300A | SCREW, PAN, 5X30 | 1 | ADD TO CART | |
| 23$ | 93500050450A | SCREW, PAN, 5X45 | 1 | ADD TO CART | |
| 24 | 9405006000 | NUT, FLANGE, 6MM | 1 | ADD TO CART | |
| 25$ | 9454005018 | E-RING, 5MM | 4 | ADD TO CART | |
| 26% | 957010601000 | BOLT, FLANGE, 6X10 | 1 | ADD TO CART | |
| 27 | 957010601400 | BOLT, FLANGE, 6X14 | 2 | ADD TO CART | |

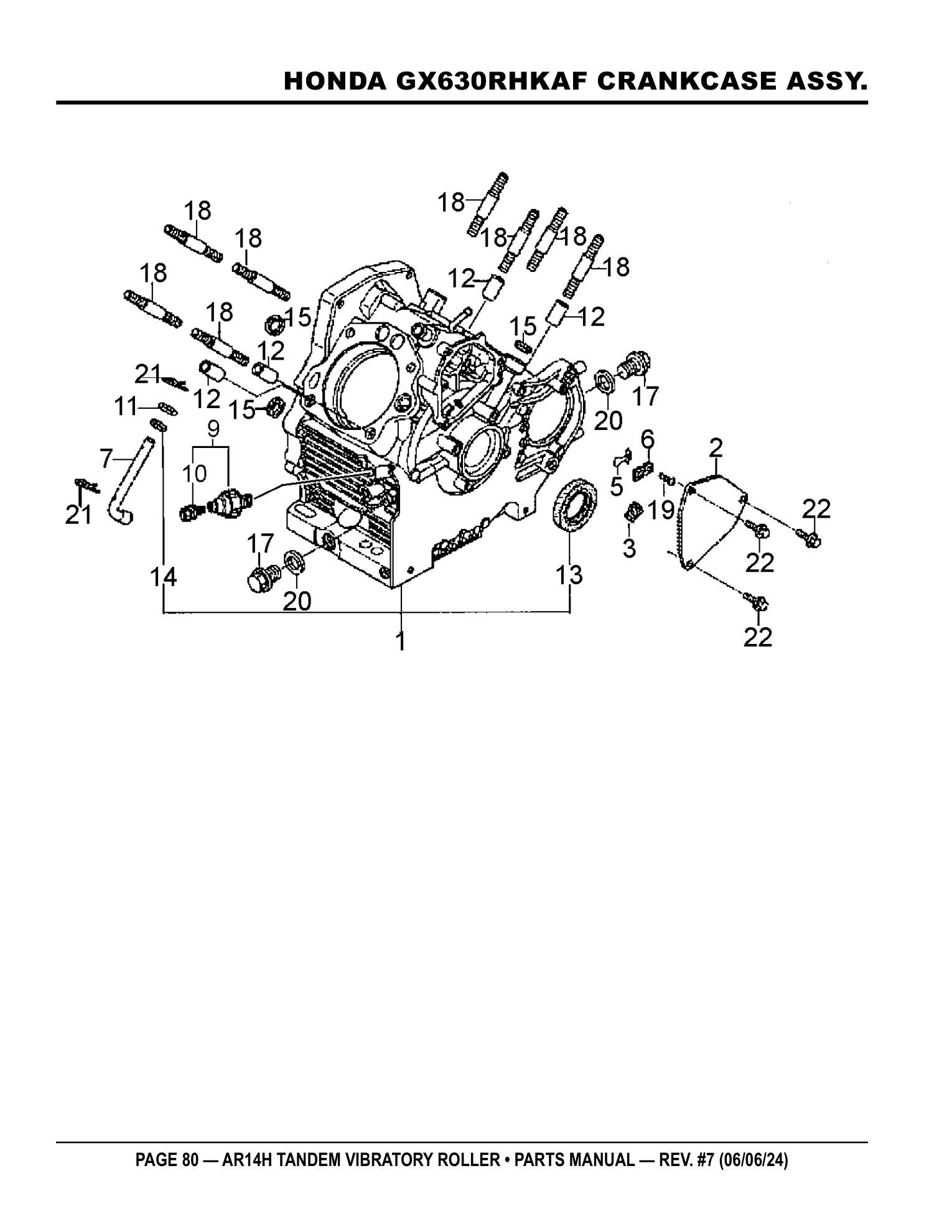

Page 80 — HONDA GX630RHKAF CRANKCASE ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 11100Z6L010 | CRANKCASE ASSY. | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING CRANKCASE ASSY.
11100Z6L010 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 13$, 14$ | |||||
| 2 | 12356Z6L000 | COVER, BREATHER | 1 | PARTS REQUEST | |
|
COMING COVER, BREATHER
12356Z6L000 · qty on machine: 1 | |||||
| 3 | 12367Z6L000 | FILTER, BREATHER | 1 | PARTS REQUEST | |
|
COMING FILTER, BREATHER
12367Z6L000 · qty on machine: 1 | |||||
| 5 | 15571ZM7003 | VALVE, OIL OUTLET | 1 | ADD TO CART | |
| 6 | 15572Z6L000 | PLATE, STOPPER | 1 | PARTS REQUEST | |
|
COMING PLATE, STOPPER
15572Z6L000 · qty on machine: 1 | |||||
| 7 | 16541Z6L010 | SHAFT, GOVERNOR ARM | 1 | PARTS REQUEST | |
|
COMING SHAFT, GOVERNOR ARM
16541Z6L010 · qty on machine: 1 | |||||
| 9 | 37240ZG5004 | SWITCH, OIL PRESSURE | 1 | ADD TO CART | |
| 10 | 90002ZG5004 | SCREW-WASHER, 4X8 | 1 | ADD TO CART | |
| 11 | 90404Z6L000 | WASHER, FLAT 10MM | 1 | PARTS REQUEST | |
|
COMING WASHER, FLAT 10MM
90404Z6L000 · qty on machine: 1 | |||||
| 12 | 90709Z6L000 | DOWEL PIN, 12X20 | 4 | PARTS REQUEST | |
|
COMING DOWEL PIN, 12X20
90709Z6L000 · qty on machine: 4 | |||||
| 13$ | 91201Z6L003 | OIL SEAL, 38X58X9 | 1 | PARTS REQUEST | |
|
COMING OIL SEAL, 38X58X9
91201Z6L003 · qty on machine: 1 Also included in kit 1 - CRANKCASE ASSY. (11100Z6L010) | |||||
| 14$ | 91203Z6L003 | OIL SEAL, 10X16X5 | 1 | PARTS REQUEST | |
|
COMING OIL SEAL, 10X16X5
91203Z6L003 · qty on machine: 1 Also included in kit 1 - CRANKCASE ASSY. (11100Z6L010) | |||||
| 15 | 91308Z6L003 | PACKING, OIL PASS | 3 | ADD TO CART | |
| 17 | 9280020000 | BOLT, DRAIN PLUG, 20MM | 2 | ADD TO CART | |
| 18 | 92900100400B | BOLT, STUD, 10X40 | 8 | PARTS REQUEST | |
|
COMING BOLT, STUD, 10X40
92900100400B · qty on machine: 8 | |||||
| 19 | 93500030080A | SCREW, PAN, 3X8 | 1 | PARTS REQUEST | |
|
COMING SCREW, PAN, 3X8
93500030080A · qty on machine: 1 | |||||
| 20 | 9410920000 | WASHER, DRAIN PLUG, 20MM | 2 | ADD TO CART | |
| 21 | 9425110000 | PIN, LOCK 10MM | 2 | PARTS REQUEST | |
|
COMING PIN, LOCK 10MM
9425110000 · qty on machine: 2 | |||||
| 22 | 957010601400 | BOLT, FLANGE 6X14 | 3 | ADD TO CART | |

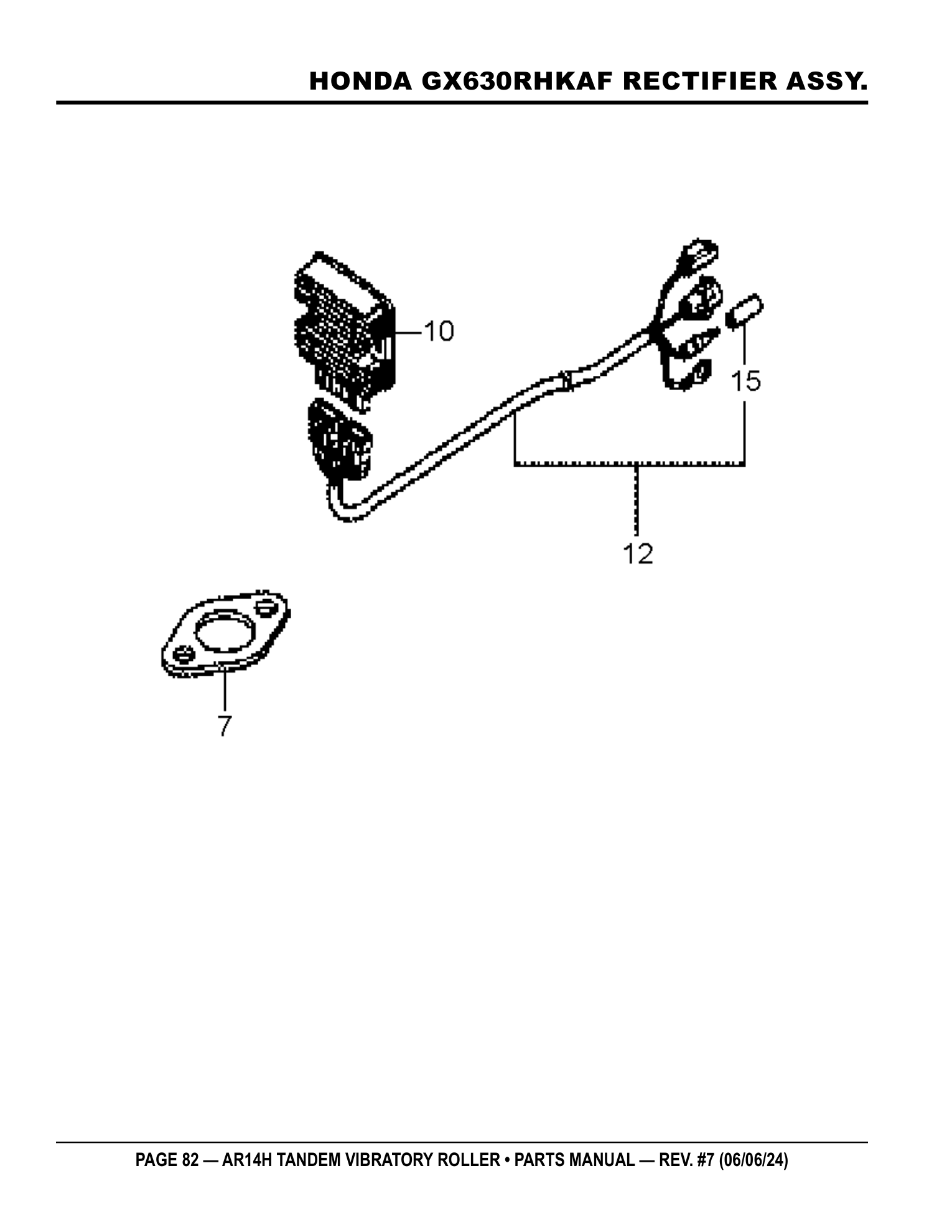

Page 82 — HONDA GX630RHKAF RECTIFIER ASSY.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 18333ZE3801 | GASKET, EX. PIPE | 2 | ADD TO CART | |
| 10 | 31750Z6L004 | RECTIFIER ASSY., REGULATOR, 30A | 1 | ADD TO CART | |
| 12 | 32105Z6L800 | HARNESS ASSY., SUB WIRE | 1 | PARTS REQUEST | |
|
COMING HARNESS ASSY., SUB WIRE
32105Z6L800 · qty on machine: 1 | |||||
| 15 | 32824ZV5003 | PLUG, OUTER CONNECTOR | 1 | PARTS REQUEST | |
|
COMING PLUG, OUTER CONNECTOR
32824ZV5003 · qty on machine: 1 | |||||

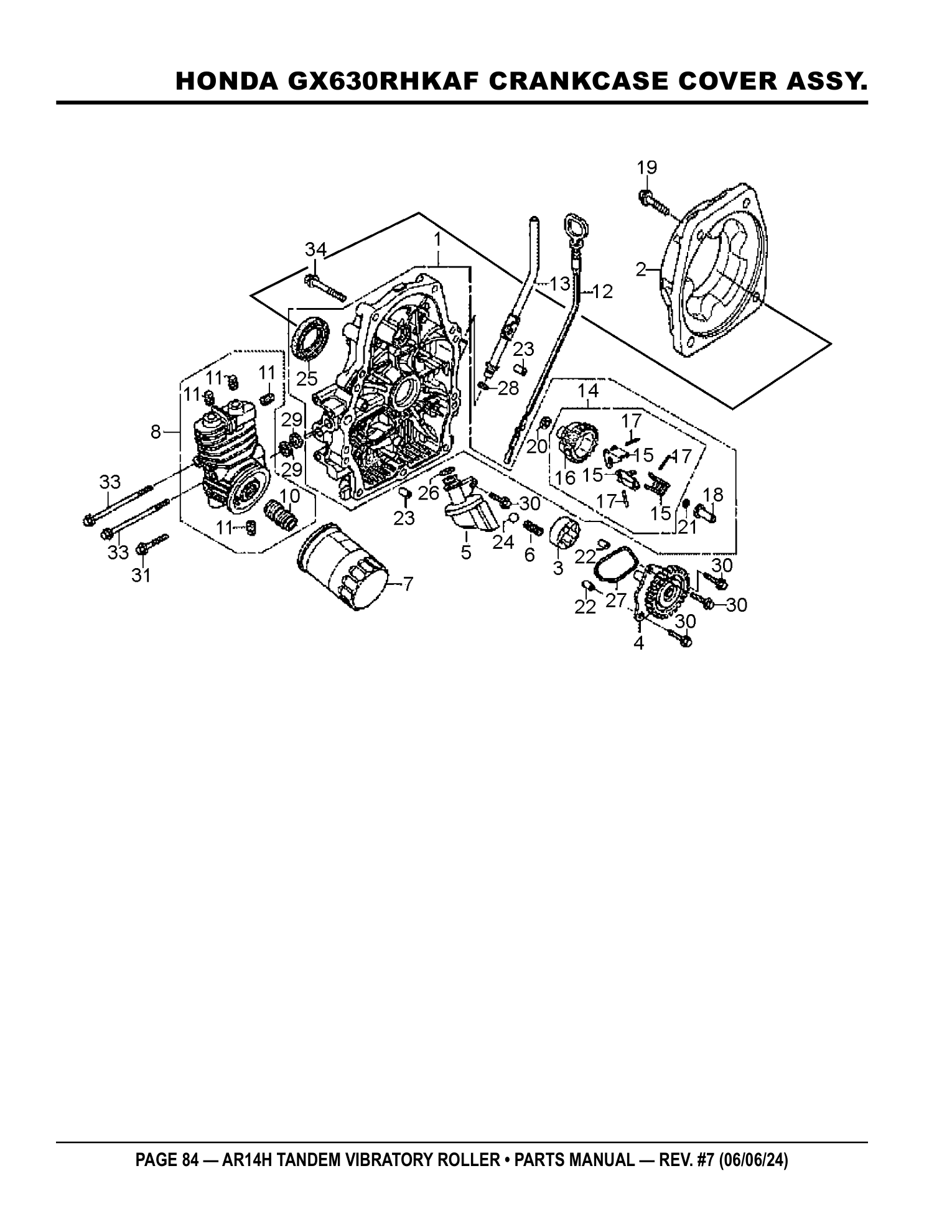

Page 84 — HONDA GX630RHKAF CRANKCASE COVER ASSY.
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 11300Z6L010 | COVER ASSY., CRANKCASE | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2 | 11312Z6L000 | COVER, MOUNT CASE | 1 | ADD TO CART | |
| 3 | 15133Z6L000 | ROTOR, OIL PUMP OUTER | 1 | PARTS REQUEST | |
|
COMING ROTOR, OIL PUMP OUTER
15133Z6L000 · qty on machine: 1 | |||||
| 4 | 15140Z6L010 | GEAR COMP., OIL PUMP | 1 | PARTS REQUEST | |
|
COMING GEAR COMP., OIL PUMP
15140Z6L010 · qty on machine: 1 | |||||
| 5 | 15220Z6L000 | STRAINER COMP., OIL | 1 | PARTS REQUEST | |
|
COMING STRAINER COMP., OIL
15220Z6L000 · qty on machine: 1 | |||||
| 6 | 15232Z6L000 | SPRING, RELIEF VALVE | 1 | PARTS REQUEST | |
|
COMING SPRING, RELIEF VALVE
15232Z6L000 · qty on machine: 1 | |||||
| 7 | 15400RTA004 | CARTRIDGE, OIL FILTER | 1 | PARTS REQUEST | |
|
COMING CARTRIDGE, OIL FILTER
15400RTA004 · qty on machine: 1 | |||||
| 8 | 15410Z6L000 | BASE COMP., OIL FILTER | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING BASE COMP., OIL FILTER
15410Z6L000 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 10$, 11$ | |||||
| 10$ | 15423Z6L000 | HOLDER, OIL FILTER | 1 | PARTS REQUEST | |
|
COMING HOLDER, OIL FILTER
15423Z6L000 · qty on machine: 1 Also included in kit 8 - BASE COMP., OIL FILTER (15410Z6L000) | |||||
| 11$ | 15424Z6L000 | BOLT, SEALING | 4 | PARTS REQUEST | |
|
COMING BOLT, SEALING
15424Z6L000 · qty on machine: 4 Also included in kit 8 - BASE COMP., OIL FILTER (15410Z6L000) | |||||
| 12 | 15655Z6L000 | GAUGE COMP., OIL LEVEL | 1 | ADD TO CART | |
| 13 | 15665Z6L000 | PIPE COMP., OIL LEVEL | 1 | PARTS REQUEST | |
|
COMING PIPE COMP., OIL LEVEL
15665Z6L000 · qty on machine: 1 | |||||
| 14# | 16510Z6L010 | GOVERNOR ASSY. | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 15#% | 16511Z6L310 | WEIGHT, GOVERNOR | 3 | PARTS REQUEST | |
|
COMING WEIGHT, GOVERNOR
16511Z6L310 · qty on machine: 3 Also included in kit 1 - COVER ASSY., CRANKCASE (11300Z6L010); kit 14 - GOVERNOR ASSY. (16510Z6L010) | |||||
| 16#% | 16512Z6L310 | HOLDER, GOVERNOR WEIGHT | 1 | PARTS REQUEST | |
|
COMING HOLDER, GOVERNOR WEIGHT
16512Z6L310 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANKCASE (11300Z6L010); kit 14 - GOVERNOR ASSY. (16510Z6L010) | |||||
| 17#% | 16513Z6L000 | PIN, GOVERNOR WEIGHT | 3 | PARTS REQUEST | |
|
COMING PIN, GOVERNOR WEIGHT
16513Z6L000 · qty on machine: 3 Also included in kit 1 - COVER ASSY., CRANKCASE (11300Z6L010); kit 14 - GOVERNOR ASSY. (16510Z6L010) | |||||
| 18# | 16531Z6L000 | SLIDER, GOVERNOR | 1 | PARTS REQUEST | |
|
COMING SLIDER, GOVERNOR
16531Z6L000 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANKCASE (11300Z6L010) | |||||
| 19 | 90003Z6L800 | BOLT, HEX 3/8-16 UNC | 4 | ADD TO CART | |
| 20# | 90403Z6L000 | WASHER, 6X16 | 1 | PARTS REQUEST | |
|
COMING WASHER, 6X16
90403Z6L000 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANKCASE (11300Z6L010) | |||||
| 21# | 90602ZE1000 | CLIP, GOVERNOR HOLDER | 1 | ADD TO CART | |
| 22 | 90707Z6L000 | DOWEL PIN, 8X10 | 2 | PARTS REQUEST | |
|
COMING DOWEL PIN, 8X10
90707Z6L000 · qty on machine: 2 | |||||
| 23 | 90708Z6L000 | DOWEL PIN, 8X14 | 2 | PARTS REQUEST | |
|
COMING DOWEL PIN, 8X14
90708Z6L000 · qty on machine: 2 | |||||
| 24 | 90902Z6L000 | BALL, STEEL, #15 | 1 | PARTS REQUEST | |
|
COMING BALL, STEEL, #15
90902Z6L000 · qty on machine: 1 | |||||
| 25# | 91202Z6L003 | OIL SEAL, 38X58X9 | 1 | ADD TO CART | |
| 26 | 91301Z6L003 | O-RING, 14.8X2.4 | 1 | ADD TO CART | |
| 27 | 91302Z6L003 | O-RING, OIL PUMP | 1 | ADD TO CART | |
| 28 | 91308-PH9000 | O-RING, 8.8X1.9 | 1 | PARTS REQUEST | |
|
COMING O-RING, 8.8X1.9
91308-PH9000 · qty on machine: 1 | |||||
| 29 | 91308Z6L003 | PACKING, OIL PASS | 2 | ADD TO CART | |
| 30 | 957010602000 | BOLT, FLANGE, 6X20 | 4 | ADD TO CART | |
| 31 | 957010602800 | BOLT, FLANGE, 6X28 | 1 | ADD TO CART | |
| 33 | 957010609000 | BOLT, FLANGE, 6X90 | 2 | PARTS REQUEST | |
|
COMING BOLT, FLANGE, 6X90
957010609000 · qty on machine: 2 | |||||
| 34 | 957010804500 | BOLT, FLANGE, 8X45 | 9 | ADD TO CART | |

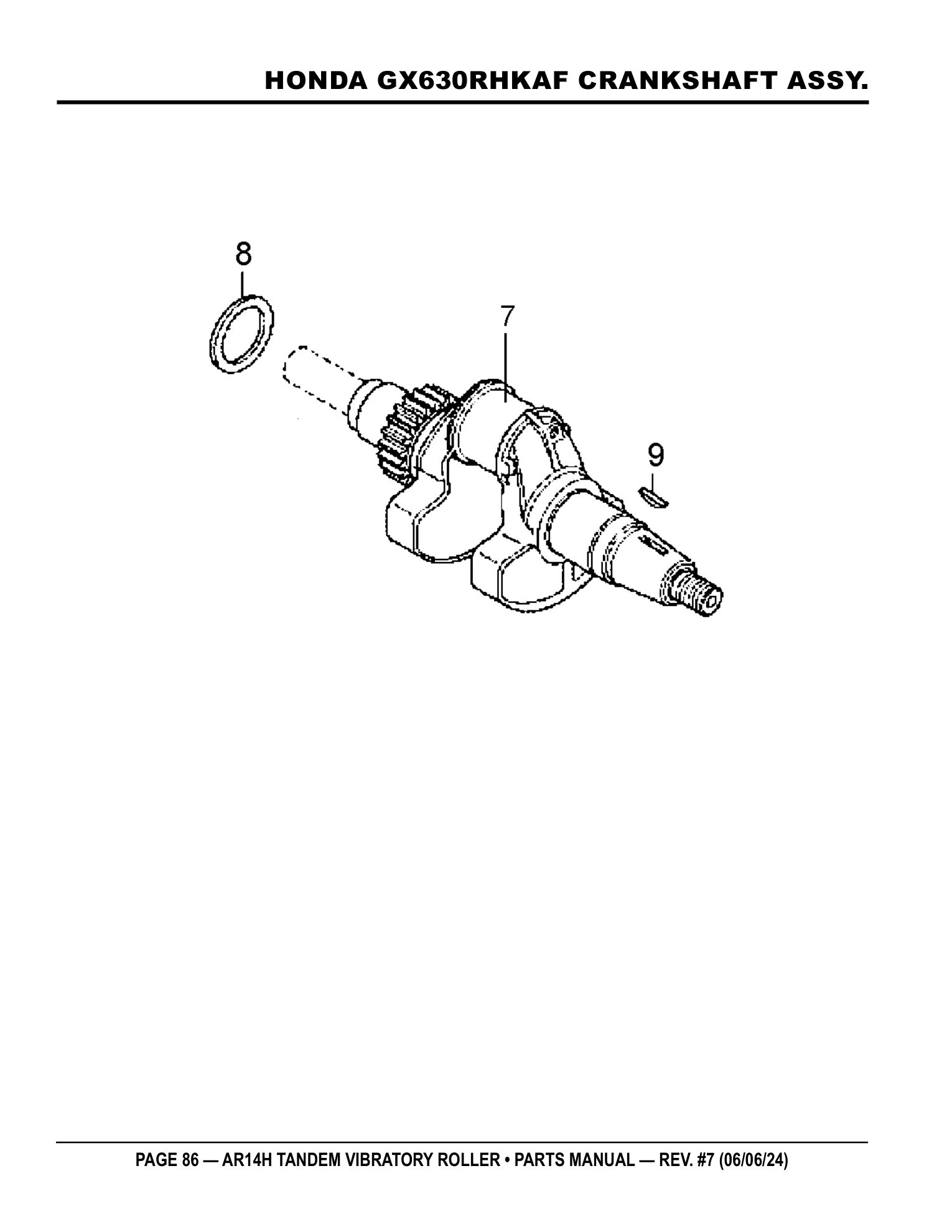

Page 86 — HONDA GX630RHKAF CRANKSHAFT ASSY.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 13310Z6L680 | CRANKSHAFT COMP. | 1 | ADD TO CART | |
| 8 | 90402Z6L000 | WASHER, CRANKSHAFT THRUST | 1 | ADD TO CART | |
| 9 | 90741ZE2000 | KEY, SPECIAL WOODRUFF, 25X18 | 1 | ADD TO CART | |

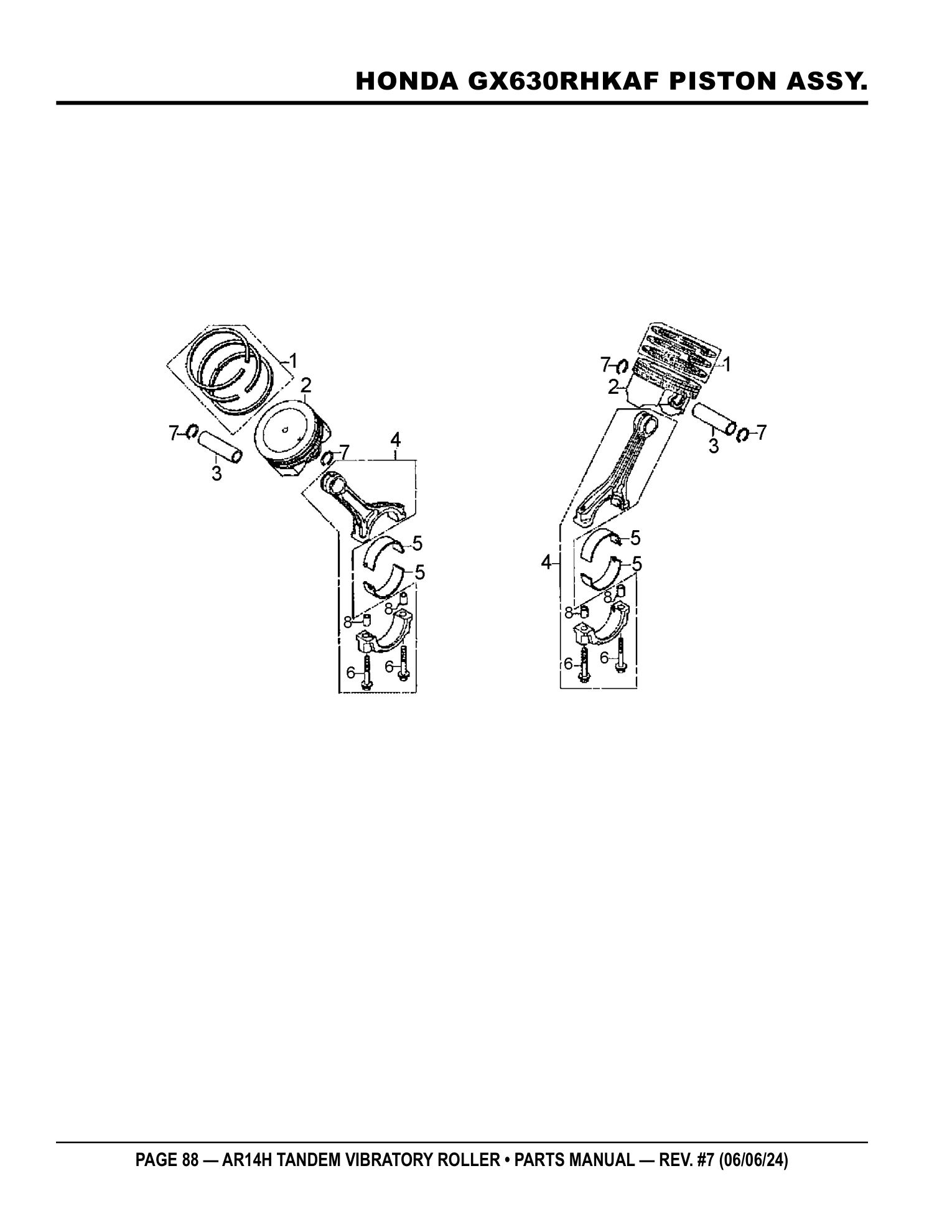

Page 88 — HONDA GX630RHKAF PISTON ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 13010Z6L003 | RING SET, PISTON (STD.) | 2 | ADD TO CART | |
| 2 | 13101Z6L010 | PISTON | 2 | PARTS REQUEST | |
|
COMING PISTON
13101Z6L010 · qty on machine: 2 | |||||
| 3 | 13111Z6L000 | PIN, PISTON | 2 | ADD TO CART | |
| 4 | 13210Z6L000 | ROD ASSY., CONNECTING | 2 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING ROD ASSY., CONNECTING
13210Z6L000 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 6#, 8# | |||||
| 5 | 13211Z6L003 | BEARING A, CONNECTING ROD | 4 | ADD TO CART | |
| 6# | 90001Z6L000 | BOLT, CONNECTING ROD, 7X38 | 4 | PARTS REQUEST | |
|
COMING BOLT, CONNECTING ROD, 7X38
90001Z6L000 · qty on machine: 4 Also included in kit 4 - ROD ASSY., CONNECTING (13210Z6L000) | |||||
| 7 | 90551ZE1000 | CLIP, PISTON PIN, 18MM | 4 | ADD TO CART | |
| 8# | 90705Z6L000 | DOWEL PIN, 9X10 | 4 | PARTS REQUEST | |
|
COMING DOWEL PIN, 9X10
90705Z6L000 · qty on machine: 4 Also included in kit 4 - ROD ASSY., CONNECTING (13210Z6L000) | |||||

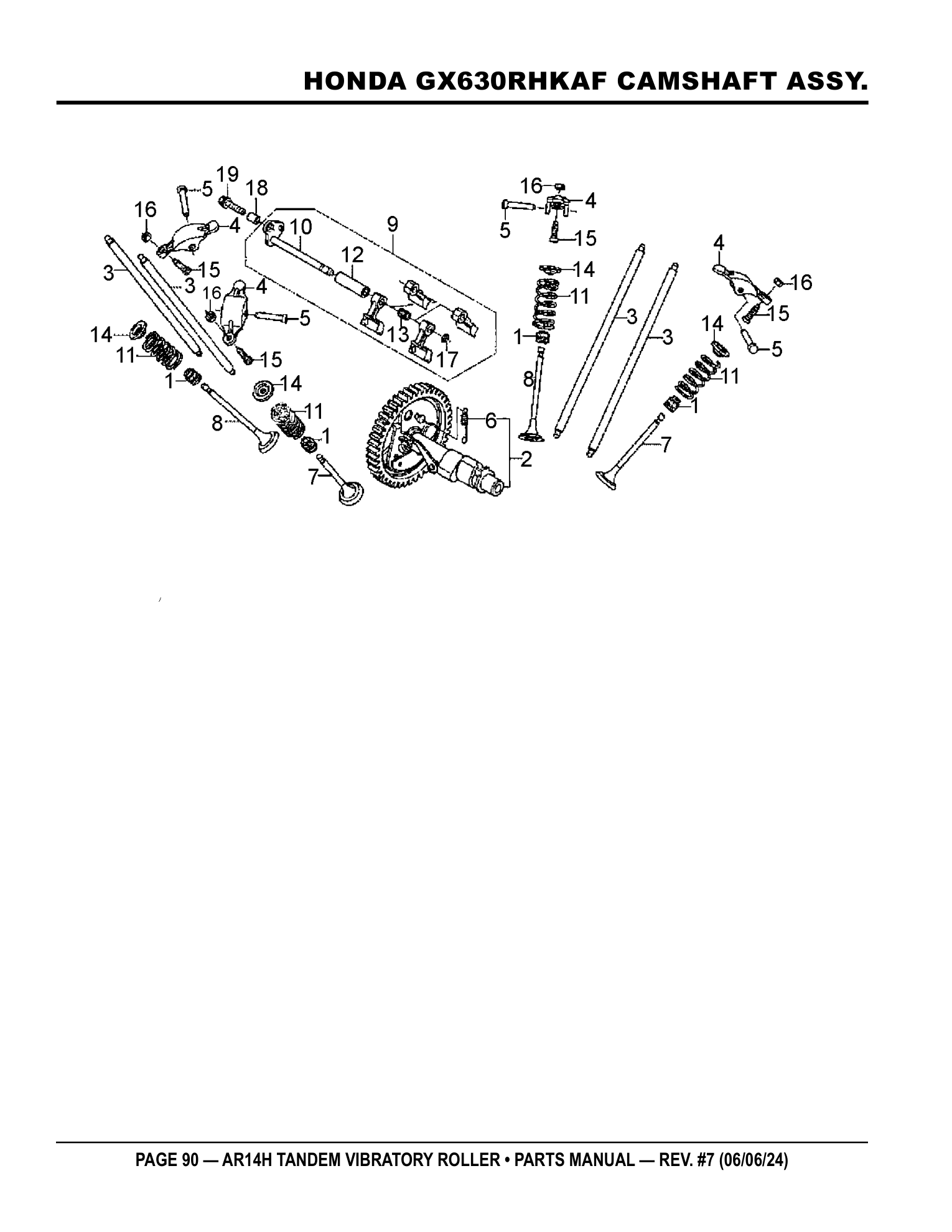

Page 90 — HONDA GX630RHKAF CAMSHAFT ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 12208Z6L003 | SEAL, VALVE STEM | 4 | ADD TO CART | |
| 2 | 14100Z6L000 | CAMSHAFT ASSY. | 1 | INCLUDES ITEMS W/# | ADD TO CART |
 CAMSHAFT ASSY.
14100Z6L000 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6# view full part page → $470.95 IN A KIT + SOLD SOLO | |||||
| 3 | 14410Z6L000 | ROD COMP., PUSH | 4 | ADD TO CART | |
| 4 | 14431Z6L000 | ARM, VALVE ROCKER | 4 | PARTS REQUEST | |
|
COMING ARM, VALVE ROCKER
14431Z6L000 · qty on machine: 4 | |||||
| 5 | 14461Z6L000 | SHAFT, ROCKER ARM | 4 | PARTS REQUEST | |
|
COMING SHAFT, ROCKER ARM
14461Z6L000 · qty on machine: 4 | |||||
| 6# | 14568Z6L000 | SPRING, WEIGHT RETURN | 1 | PARTS REQUEST | |
|
COMING SPRING, WEIGHT RETURN
14568Z6L000 · qty on machine: 1 Also included in kit 2 - CAMSHAFT ASSY. (14100Z6L000) | |||||
| 7 | 14711Z6L000 | VALVE, IN. | 2 | ADD TO CART | |
| 8 | 14721Z6L000 | VALVE, EX. | 2 | ADD TO CART | |
| 9 | 14730Z6L000 | LIFTER ASSY., VALVE | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING LIFTER ASSY., VALVE
14730Z6L000 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 10$, 12$, 13$, 17$ | |||||
| 10$ | 14735Z6L000 | SHAFT COMP., VALVE LIFTER | 1 | PARTS REQUEST | |
|
COMING SHAFT COMP., VALVE LIFTER
14735Z6L000 · qty on machine: 1 Also included in kit 9 - LIFTER ASSY., VALVE (14730Z6L000) | |||||
| 11 | 14751Z6L000 | SPRING, VALVE | 4 | ADD TO CART | |
| 12$ | 14763Z6L000 | COLLAR, VALVE LIFTER | 1 | PARTS REQUEST | |
|
COMING COLLAR, VALVE LIFTER
14763Z6L000 · qty on machine: 1 Also included in kit 9 - LIFTER ASSY., VALVE (14730Z6L000) | |||||
| 13$ | 14764Z6L000 | SPRING, VALVE LIFTER | 1 | PARTS REQUEST | |
|
COMING SPRING, VALVE LIFTER
14764Z6L000 · qty on machine: 1 Also included in kit 9 - LIFTER ASSY., VALVE (14730Z6L000) | |||||
| 14 | 14771ZE1000 | RETAINER, IN. VALVE SPRING | 4 | ADD TO CART | |
| 15 | 90012Z6L000 | SCREW, TAPPET ADJUSTING | 4 | PARTS REQUEST | |
|
COMING SCREW, TAPPET ADJUSTING
90012Z6L000 · qty on machine: 4 | |||||
| 16 | 90206Z6L000 | NUT, TAPPET ADJUSTING | 4 | PARTS REQUEST | |
|
COMING NUT, TAPPET ADJUSTING
90206Z6L000 · qty on machine: 4 | |||||
| 17$ | 90602ZE1000 | CLIP, GOVERNOR HOLDER | 1 | ADD TO CART | |
| 18 | 90707Z6L000 | DOWEL PIN, 8X10 | 1 | PARTS REQUEST | |
|
COMING DOWEL PIN, 8X10
90707Z6L000 · qty on machine: 1 | |||||
| 19 | 957010602200 | BOLT, FLANGE, 6X22 | 1 | PARTS REQUEST | |
|
COMING BOLT, FLANGE, 6X22
957010602200 · qty on machine: 1 | |||||

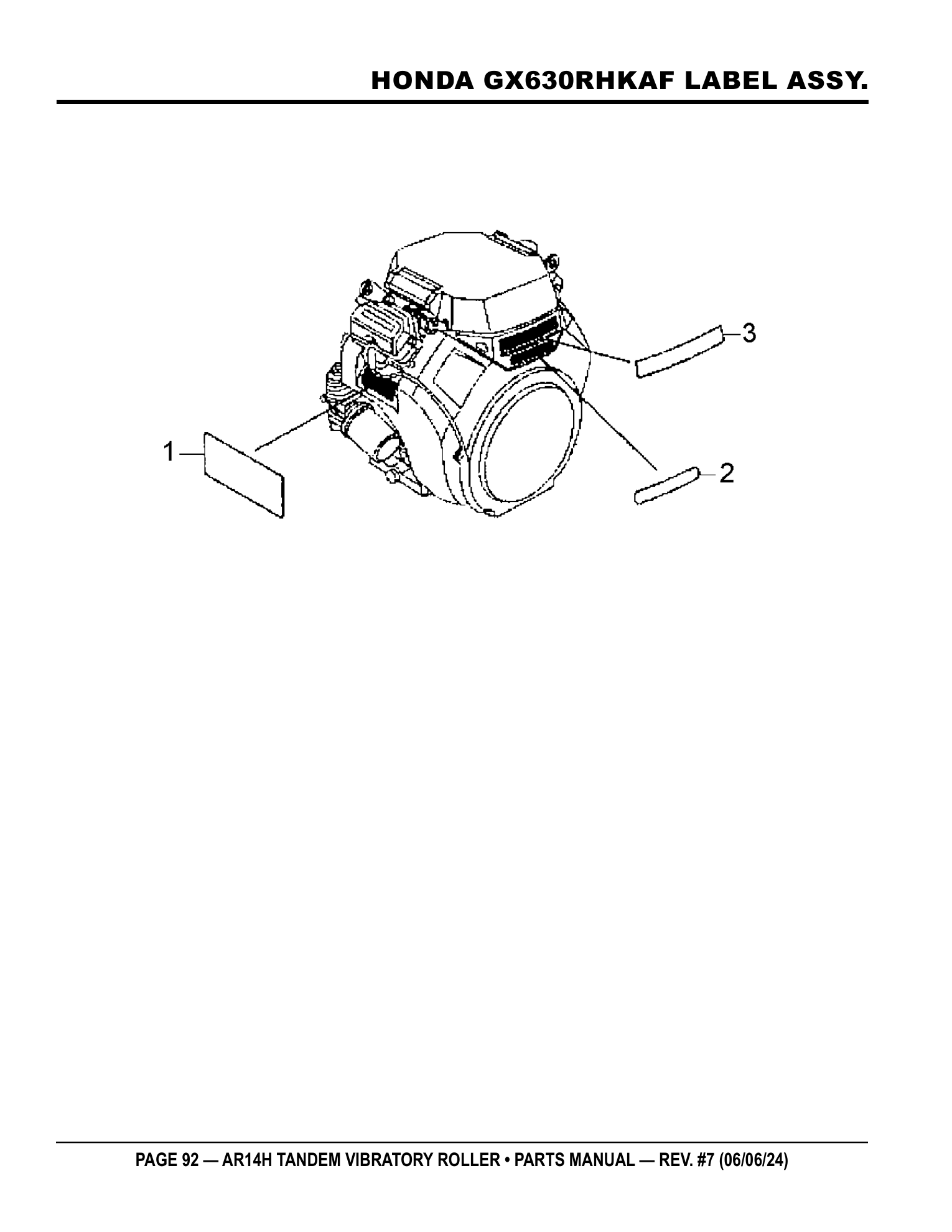

Page 92 — HONDA GX630RHKAF LABEL ASSY.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 87516ZCN000 | MARK, OPERATOR CAUTION (ENGLISH) | 1 | PARTS REQUEST | |
|
COMING MARK, OPERATOR CAUTION (ENGLISH)
87516ZCN000 · qty on machine: 1 | |||||
| 2 | 87521Z6N000 | EMBLEM (GX630) | 1 | PARTS REQUEST | |
|
COMING EMBLEM (GX630)
87521Z6N000 · qty on machine: 1 | |||||
| 3 | 87531Z6L000 | MARK, HONDA | 1 | PARTS REQUEST | |
|
COMING MARK, HONDA
87531Z6L000 · qty on machine: 1 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip AR14H is a roller built for compacting asphalt and granular base on paving, patching, and trench restoration. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
025113
Multiquip 025113 Nut 1-20 Thread - OEM Replacement Part
$35.95
1110
Multiquip 1110 Control Trowel Assembly - OEM Replacement Part
$45.95
11300Z6L010
Multiquip 11300Z6L010 Crankcase Cover Assembly - OEM Replacement Part
$892.95
12311Z6L000
Multiquip 12311Z6L000 Cylinder Head Cover - OEM Replacement Part
$68.95
12311Z6L800
Multiquip 12311Z6L800 Cover Cylinder Head - OEM Replacement Part
$47.95
13010Z6L003
Multiquip 13010Z6L003 Piston Ring Set - OEM Replacement Part for Honda GX630 Engine
$72.95
13310Z6L680
Multiquip 13310Z6L680 Crankshaft Comp - OEM Replacement Part
$995.95
14100Z6L000
Multiquip 14100Z6L000 Camshaft Assembly - OEM Replacement Part for GA9.7HEA Engine
$470.95
14711Z6L000
Multiquip 14711Z6L000 Intake Valve - OEM Replacement Part for Ride-On Rollers
$43.95
14721Z6L000
Multiquip 14721Z6L000 Valve Ex - OEM Replacement Part for Rollers
$71.95
16100Z9E023
Multiquip 16100Z9E023 Carburetor - OEM Replacement Part
$724.95
16500Z6L812
Multiquip 16500Z6L812 Flywheel Comp HC-5317417 - OEM Replacement Part
$245.95
16510Z6L010
Multiquip 16510Z6L010 Governor Assembly - OEM Replacement Part
$43.95
16700Z6L003
Multiquip 16700Z6L003 Fuel Pump Assembly GX690 - OEM Replacement Part
$91.95
16850Z6L020
Multiquip 16850Z6L020 Fuel Tube Assembly - OEM Replacement Part for Honda GX630 Engine
$42.95
17220Z6L000
Multiquip 17220Z6L000 Air Cleaner Case - OEM Replacement Part
$82.95
17230Z6L000
Multiquip 17230Z6L000 Air Cleaner Cover - OEM Replacement Part
$113.95
17410Z6L000
Multiquip 17410Z6L000 Elbow Air Cleaner - OEM Replacement Part
$54.95
19511Z6L000
Multiquip 19511Z6L000 Fan Cooling GX630 - OEM Replacement Part
$60.95
19610Z6L000ZA
Multiquip 19610Z6L000ZA Fan Cover Compatible with Honda GX690 Engine - OEM Replacement Part
$157.95
29298-001
Multiquip 29298-001 Brake Band - OEM Replacement Part
$96.95
30500Z6L023
Multiquip 30500Z6L023 Ignition Coil Assembly - OEM Replacement Part for GX630 Engine
$384.95
31204ZJ1H02
Multiquip 31204ZJ1H02 Switch Assy AR-13H - OEM Replacement Part
$354.95
31630Z6L811
Multiquip 31630Z6L811 Charge Coil Assembly (26A) - OEM Replacement Part
$464.95
31750Z6L004
Multiquip 31750Z6L004 Rectifier Regulator Assembly - OEM Replacement Part
$399.95
32110Z6L000
Multiquip 32110Z6L000 Engine Wire Harness Assembly - OEM Replacement Part
$108.95
34606
Multiquip 34606 Seat Belt ROPS - OEM Replacement Part for Rollers
$187.95
37240ZG5004
Multiquip 37240ZG5004 Oil Pressure Switch - OEM Replacement Part
$173.95
42435
Multiquip 42435 Retardant Tank Cap with Lanyard - OEM Replacement Part
$40.95
490181
Multiquip 490181 Sight Glass VR36H - OEM Replacement Part for Rollers
$76.95
503735
Multiquip 503735 Bearing Flange VR36H - OEM Replacement Part
$49.95
505984
Multiquip 505984 Hub VR36H - OEM Replacement Part for Ride-On Rollers
$125.95
506131
Multiquip 506131 Bearing MR 1309 EX - OEM Replacement Part for Ride-On Rollers
$279.95
506141
Multiquip 506141 Shock Mount VR36H - OEM Replacement Part for Ride-On Rollers
$41.95
506142
Multiquip 506142 Mount Vibration VR36H - OEM Replacement Part for Ride-On Rollers
$176.95
506145
Multiquip 506145 Housing Bearing VR36H - OEM Replacement Part for Ride-On Rollers
$200.95
506164
Multiquip 506164 Bearing VR36H - OEM Replacement Part for Ride-On Rollers
$184.95
506182
Multiquip 506182 Coupling PSI Test SMK20-9/16UNF-VE VR36H - OEM Replacement Part
$42.95
506186
Multiquip 506186 Hydraguide VR36H - OEM Replacement Part for Ride-On Rollers
$1,873.95
506220
Multiquip 506220 Hydraulic Pump 1010204 VR36H - OEM Replacement Part for Ride-On Rollers
$406.95
506221
Multiquip 506221 Filter S 10 100 VR36H - OEM Replacement Part
$68.95
506239
Multiquip 506239 Cable Choke VR36H - OEM Replacement Part
$103.95
506245
Multiquip 506245 Valve Solenoid VR36H - OEM Replacement Part
$137.95
506246
Multiquip 506246 Valve Relief VR36H - OEM Replacement Part
$91.95
506247
Multiquip 506247 Valve Needle VR36H - OEM Replacement Part for Ride-On Rollers
$84.95
507772
Multiquip 507772 Plug P10-2 VR36H - OEM Replacement Part for Ride-On Rollers
$42.95
507774
Multiquip 507774 Valve Relief VR36H - OEM Replacement Part
$97.95
507862
Multiquip 507862 Steering Column SF0-00780400 - OEM Replacement Part
$806.95
507885
Multiquip 507885 Coil S10LPD012 VR36H - OEM Replacement Part
$100.95
508670
Multiquip 508670 Valve Check VR36H - OEM Replacement Part
$41.95
512234
Multiquip 512234 Adapter Elbow WPB-16 - OEM Replacement Part
$50.95
513285
Multiquip 513285 Housing Bearing Right AR-13H - OEM Replacement Part
$603.95
513286
Multiquip 513286 Oil Seal 65 x 100 x 9 - OEM Replacement Part
$35.95
513287
Multiquip 513287 Housing Bearing Left - OEM Replacement Part for AR Series Ride-On Rollers
$212.95
513294
Multiquip 513294 Rod End AR-13H JFX12 - OEM Replacement Part for Ride-On Rollers
$124.95
513299
Multiquip 513299 Cover Articulating Joint AR-13H - OEM Replacement Part
$67.95
513300
Multiquip 513300 Retainer Plate AR-13H - OEM Replacement Part
$38.95
513302
Multiquip 513302 Base Articulating Joint - OEM Replacement Part for Ride-On Rollers
$261.95
513303
Multiquip 513303 Joint Articulating AR-13H - OEM Replacement Part
$193.95
513322
Multiquip 513322 Valve Ball AR-13H - OEM Replacement Part
$42.95
514391
Multiquip 514391 Battery 12V - OEM Replacement Part
$268.95
515114
Multiquip 515114 Battery Cable Negative (-) - OEM Replacement Part
$90.95
515396
Multiquip 515396 Motor Hydraulic AR-13 - OEM Replacement Part
$1,556.95
515502
Multiquip 515502 Manifold - OEM Replacement Part
$598.95
520230
Multiquip 520230 Engine Shroud Seal - OEM Replacement Part
$50.95
520460
Multiquip 520460 Water Pump Protective Rubber Cover - OEM Replacement Part
$34.95
520461
Multiquip 520461 Breather - OEM Replacement Part
$33.95
522016
Multiquip 522016 Column Power - OEM Replacement Part for Rollers
$238.95
522355
Multiquip 522355 Plastic Fuel Tank Kit (Retrofit) - OEM Replacement Part
$540.95
800718
Multiquip 800718 Drum Rear - OEM Replacement Part for Tandem Rollers
$3,611.95
800724
Multiquip 800724 Support Plate Rear Roller - OEM Replacement Part
$323.95
800742
Multiquip 800742 Drive Plate - OEM Replacement Part for Ride-On Rollers
$287.95
800743
Multiquip 800743 Cover Left Rear - OEM Replacement Part for Ride-On Rollers
$64.95
800785
Multiquip 800785 Frame Main - OEM Replacement Part for Rollers
$3,506.95
800792
Multiquip 800792 Adapter Extension - OEM Replacement Part for Rollers
$145.95
800803
Multiquip 800803 Hour Tachometer - OEM Replacement Part
$142.95
801532
Multiquip 801532 Water Filter - OEM Replacement Part for Rollers
$90.95
801989
Multiquip 801989 Hydraulic Pump - OEM Replacement Part for Rollers
$4,056.95
802003
Multiquip 802003 Honda 20HP Engine with Spline Shaft - OEM Replacement Part
$2,825.95
802187
Multiquip 802187 Drive Plate - OEM Replacement Part for Rollers
$363.95
802375
Multiquip 802375 Hydraulic Cylinder - OEM Replacement Part for Rollers
$550.95
802396
Multiquip 802396 Brake Cable - OEM Replacement Part for Rollers
$192.95
802518
Multiquip 802518 Manifold Oil Return Block - OEM Replacement Part
$87.95
802609
Multiquip 802609 Floor Plate - OEM Replacement Part for Vibratory Rollers
$182.95
802613
Multiquip 802613 Water Tank Lower - OEM Replacement Part
$213.95
802626
Multiquip 802626 Rubber Blade - OEM Replacement Part for Vibratory Rollers
$145.95
802849
Multiquip 802849 Engine Muffler - OEM Replacement Part
$483.95
802887
Multiquip 802887 Cover Rear - OEM Replacement Part for Rollers
$240.95
802917
Multiquip 802917 Hydraulic Hose Drive Motor - OEM Replacement Part
$140.95
802918
Multiquip 802918 Hydraulic Hose Drive Motor - OEM Replacement Part
$183.95
802919
Multiquip 802919 Hydraulic Vibrator Motor Hose - OEM Replacement Part
$47.95
802922
Multiquip 802922 Oil Drain Hose - OEM Replacement Part
$39.95
802923
Multiquip 802923 Hydraulic Hose - OEM Replacement Part for Rollers
$57.95
802924
Multiquip 802924 Hydraulic Hose - OEM Replacement Part for Rollers
$50.95
802925
Multiquip 802925 Hydraulic Return Manifold Hose - OEM Replacement Part
$34.95
802926
Multiquip 802926 Hydraulic Return Filter Hose - OEM Replacement Part
$39.95
802927
Multiquip 802927 Hydraulic Axle Pump Hose - OEM Replacement Part
$52.95
802928
Multiquip 802928 Hydraulic Gear Pump Hose - OEM Replacement Part
$54.95
802929
Multiquip 802929 Hydraulic Axle Pump Hose - OEM Replacement Part
$50.95
802930
Multiquip 802930 Hydraulic Manifold Hose - OEM Replacement Part
$73.95
802931
Multiquip 802931 Hydraulic Manifold Hose - OEM Replacement Part
$71.95
802932
Multiquip 802932 Hydraulic Manifold Hose - OEM Replacement Part
$57.95
802933
Multiquip 802933 Hydraulic Manifold Hose - OEM Replacement Part
$60.95
802934
Multiquip 802934 Hydraulic Pump Hose - OEM Replacement Part
$50.95
802935
Multiquip 802935 Hydraulic Pump Hose - OEM Replacement Part
$50.95
802937
Multiquip 802937 Suction Hose - OEM Replacement Part for Rollers
$59.95
802986
Multiquip 802986 Hydraulic Pump Lever - OEM Replacement Part for Rollers
$120.95
803052
Multiquip 803052 Vibratory Shaft - OEM Replacement Part for Compaction Rollers
$159.95
803073
Multiquip 803073 Spray Bar Water - OEM Replacement Part for Rollers
$39.95
803078
Multiquip 803078 Scraper Blade Rubber Rear Extension - OEM Replacement Part
$457.95
803081
Multiquip 803081 Scraper Blade Internal Assembly 365.10 - OEM Replacement Part
$450.95
803116
Multiquip 803116 Water Tank - OEM Replacement Part for Vibratory Rollers
$367.95
803129
Multiquip 803129 Throttle Lever - OEM Replacement Part for Rollers
$64.95
803130
Multiquip 803130 Engine Cover - OEM Replacement Part for Rollers
$1,653.95
803533
Multiquip 803533 ROPS - OEM Replacement Part for Vibratory Rollers
$1,257.95
803755
Multiquip 803755 Articulation Lock Bar - OEM Replacement Part
$93.95
803930
Multiquip 803930 Rubber Latch - OEM Replacement Part for Rollers
$73.95
804251
Multiquip 804251 Battery Cable Positive (+) - OEM Replacement Part
$86.95
805774
Multiquip 805774 Water Pump Spray - OEM Replacement Part
$303.95
808856
Multiquip 808856 Fuel Tank Plastic - OEM Replacement Part for Compaction Rollers
$487.95
011208025
BOLT, 8X25T
$0.41
0166A
WASHER, LOCK 3/8" DIA
$0.17
07011-015
KEY, WOODRUFF #1008 5/16" X 1"
$0.95
100443
SCREW, M6X20
$0.55
100536
WASHER, BRAKE
$0.74
100602
NUT, INSERT
$0.95
1070
803383
1080
516774
11100Z6L010
CRANKCASE ASSY.
1120
513312
1130
492581
$1,316.95
1160
802574
1170
520611
1171
520611
11911Z6L000
HANGER, ENGINE
12110Z6L010
HEAD COMP., CYLINDER (#1)
12120Z6L010
HEAD COMP., CYLINDER (#2)
12208Z6L003
SEAL, VALVE STEM
$9.95
12312Z6L000
PACKING, HEAD COVER
$19.95
12367Z6L000
FILTER, BREATHER
1310
EM506599
13101Z6L010
PISTON
13111Z6L000
PIN, PISTON
$17.95
13118
DECAL: POWDER COATED
$0.76
13210Z6L000
ROD ASSY., CONNECTING
13212
GROMMET, 1-1/4 ID
$3.95
1340
2105164
1350
505489
1360
EM916001
1390
803011
1400
493108
1410
100536
1420
492595
1430
2101402
14431Z6L000
ARM, VALVE ROCKER
14461Z6L000
SHAFT, ROCKER ARM
14568Z6L000
SPRING, WEIGHT RETURN
14730Z6L000
LIFTER ASSY., VALVE
14751Z6L000
SPRING, VALVE
$6.95
14763Z6L000
COLLAR, VALVE LIFTER
14764Z6L000
SPRING, VALVE LIFTER
14771ZE1000
RETAINER, IN. VALVE SPRING
$2.52
15133Z6L000
ROTOR, OIL PUMP OUTER
15140Z6L010
GEAR COMP., OIL PUMP
15220Z6L000
STRAINER COMP., OIL
15232Z6L000
SPRING, RELIEF VALVE
15400RTA004
CARTRIDGE, OIL FILTER
15410Z6L000
BASE COMP., OIL FILTER
15424Z6L000
BOLT, SEALING
15571ZM7003
VALVE, OIL OUTLET
$3.95
15572Z6L000
PLATE, STOPPER
15600Z6L000
CAP ASSY., OIL FILLER
$12.95
15655Z6L000
GAUGE COMP., OIL LEVEL
$27.95
15665Z6L000
PIPE COMP., OIL LEVEL
15721Z6L000
TUBE, BREATHER
$13.95
16013Z6L003
FLOAT SET
16015Z6L003
CHAMBER SET, FLOAT
16024124760
SCREW SET, DRAIN
$23.95
16126Z6L003
ARM, THROTTLE LINKAGE
16134Z6L801
CAP, ADJUSTING SCREW
16148141881
CAP, CHOKE DUST
$12.95
16155Z6L003
VALVE COMP., FLOAT
16166Z9E003
NOZZLE, MAIN
16176Z2GD51
SCREEN, FUEL STRAINER
16198Z6L000
TUBE, DRAIN
16200Z6L003
VALVE ASSY., SOLENOID
$104.95
16211Z6L000
INSULATOR, CARBURETOR
$18.95
16221Z6L000
PACKING, CARBURETOR
$8.95
16263Z0G010
JOINT, ROD
$4.95
16512Z6L310
HOLDER, GOVERNOR WEIGHT
16513Z6L000
PIN, GOVERNOR WEIGHT
16531Z6L000
SLIDER, GOVERNOR
16541Z6L010
SHAFT, GOVERNOR ARM
16550Z6L020
ARM COMP., GOVERNOR
16555Z6L010
ROD, GOVERNOR
16561Z6L000
SPRING, GOVERNOR
$7.95
16562Z6L010
SPRING, THROTTLE RETURN
$14.95
16576891000
HOLDER, CABLE
$9.95
16584883300
SPRING, CONTROL ADJUSTING
$7.95
16592ZJ1000
SPRING, CABLE RETURN
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
